Atlona 5X2 4K/HDR HDMI 2.0b to HDBaseT Switcher with Extended Distance - AT-HDR-SW-52ED

Product Overview

The Atlona AT-HDR-SW-52ED is a 5x2 HDMI matrix switcher engineered for commercial AV installations requiring 4K/UHD HDR signal routing to multiple displays. With five HDMI 2.0b inputs and both an HDMI and HDBaseT output, this 4K HDR HDMI matrix switcher delivers full 4K/60 4:4:4 performance with HDR10, HLG, and Dolby Vision support. The HDBaseT output extends video, audio, control, and Ethernet up to 330 feet over CAT6/6a/7 cable, making it a purpose-built HDMI to HDBaseT switcher for conference rooms, auditoriums, and multi-display meeting spaces. Selectable matrix or mirrored output modes, automatic display control, and audio de-embedding round out its integration capabilities for professional AV systems.

Product Description

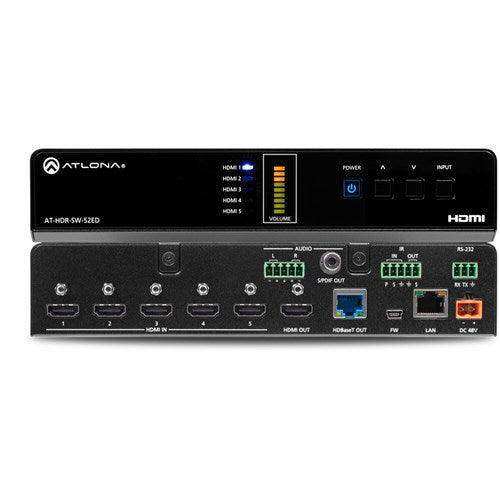

The Atlona AT-HDR-SW-52ED is a high dynamic range matrix switcher with five HDMI inputs, one HDMI output, and one HDBaseT output. Part of Atlona's 4K HDR integration product family, it supports 4K/UHD video at 60 Hz with 4:4:4 chroma sampling and HDMI data rates up to 18 Gbps, making it compatible with the latest and emerging 4K source and display devices. The HDBaseT output transmits video, embedded audio, and Ethernet to a compatible receiver such as the AT-HDR-EX-100CEA-RX at distances up to 330 feet (100 meters) over CAT6/6a/7, or 295 feet (90 meters) over CAT5e — a significant extended-distance advantage for large venues. The two outputs can be independently routed in matrix mode to feed different content to a local display and a remote display, or mirrored for identical content delivery. A selectable 4K to 1080p downscaler enables compatibility with legacy HD displays and video conferencing codecs. Automatic display control sends power on/off commands to connected displays via IP, RS-232, or CEC without a dedicated control system, while automatic input switching activates the correct source based on hot plug detect and active video signals. The AT-HDR-SW-52ED de-embeds two-channel PCM and 5.1 bitstream audio to S/PDIF and balanced analog outputs for integration with external audio systems, and can also receive return audio from the HDR-EX-100CEA-RX receiver. Control is available via Ethernet, RS-232, and IR, with full compatibility with Atlona Velocity and third-party control systems. HDCP 2.2 compliance, EDID management, HDBaseT link testing, and field-updatable firmware complete this comprehensive HDMI matrix switcher solution. Available from Creation Networks at creationnetworks.net.

Key Features

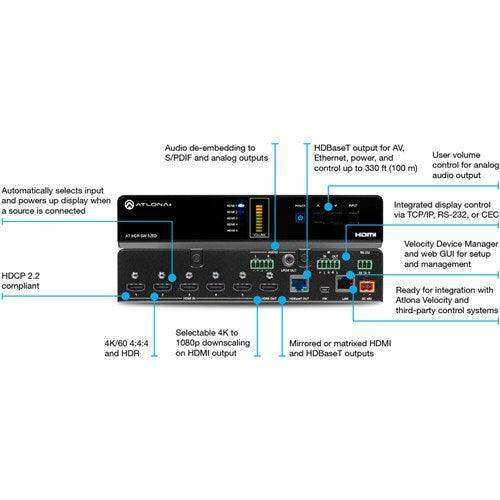

• 5x2 HDMI Matrix Switcher — Five HDMI 2.0b inputs with independently switchable HDMI and HDBaseT outputs for flexible multi-display routing.
• 4K/UHD @ 60 Hz with 4:4:4 Chroma Sampling — Full-bandwidth 18 Gbps HDMI signal support for pristine image quality with HDR10, HLG, and Dolby Vision formats.
• Extended HDBaseT Output (330 ft / 100 m) — Transmits 4K HDR video, audio, control, and Ethernet over CAT6/6a/7 to a compatible HDBaseT receiver.
• Selectable 4K to 1080p Downscaling — Down-converts 4K/UHD at 60, 30, or 24 Hz to 1080p for HD displays and legacy sink devices on either output.
• Automatic Display Control — Powers displays on/off via IP, RS-232, or CEC based on source connection status, eliminating the need for a separate control processor.
• Automatic Input Switching — Detects HPD signal and active video to auto-select the correct input; available in mirrored output mode.
• Audio De-Embedding — Extracts 2-channel PCM and 5.1 bitstream audio to balanced analog (5-pin captive screw) and S/PDIF outputs for external audio system integration.
• PoE over HDBaseT — Supplies IEEE 802.3af Power over Ethernet to the remote receiver, eliminating the need for local AC power at the endpoint.
• HDCP 2.2 Compliant — Supports full HDCP 2.2 content protection with automated compliance reporting and EDID management.
• Multiple Control Options — TCP/IP, RS-232, and IR control with Atlona Velocity integration and TCP proxy for RS-232 device control over HDBaseT.
• HDBaseT Link Testing — Built-in cable integrity and link quality verification for fast installation troubleshooting.
• Compact Form Factor — Low-profile 1.34" x 8.19" x 4.41" chassis suitable for under-table, lectern, or rack-mount installation.

Typical Applications

• Boardroom and conference room dual-display AV systems
• Multi-purpose room and all-hands room presentation switching
• Auditorium and training room with main display and confidence monitor
• Government space and commercial meeting space AV integration
• Huddle room with local and remote display routing

Technical Specifications

Frequently Asked Questions

Q: What cable type is required for the full 330-foot HDBaseT extension?

CAT6, CAT6a, or CAT7 cable is required to achieve the maximum 330-foot (100-meter) 4K HDR extension distance. CAT5e cable supports up to 295 feet (90 meters) for 4K/UHD signals.

Q: Which HDBaseT receiver is recommended for use with the AT-HDR-SW-52ED?

Atlona recommends the AT-HDR-EX-100CEA-RX, which receives 4K HDR video and supports control extension, Ethernet pass-through, and remote power from the switcher over HDBaseT.

Q: Can the HDMI and HDBaseT outputs display different content simultaneously?

Yes. In matrix mode, each output can be independently routed to any of the five HDMI inputs, allowing different content on the local HDMI display and the remote HDBaseT-connected display. Mirrored mode sends the same source to both outputs.

Q: Does the AT-HDR-SW-52ED require a separate control system for display automation?

No. The built-in automatic display control feature sends power on/off commands to connected displays via IP, RS-232, or CEC based on source connection status, without requiring an external control processor.

Q: What audio formats does the de-embedding output support?

The balanced analog output carries stereo 2-channel PCM audio. The S/PDIF output supports LPCM 2.0, Dolby Digital, and DTS Digital Surround. Multi-channel formats including Dolby Atmos and DTS:X pass through intact over HDMI and HDBaseT.

Q: Is the AT-HDR-SW-52ED compatible with Atlona Velocity control systems?

Yes. The AT-HDR-SW-52ED integrates with the Atlona Velocity AV control system via TCP/IP, and also supports third-party control systems over Ethernet, RS-232, and IR. The TCP proxy feature allows a single IP connection to control both IP and RS-232 devices at remote endpoints.

Q: What downscaling options are available for legacy displays?

The AT-HDR-SW-52ED can downscale 4K/UHD video to 1080p at 60, 30, or 24 Hz on either output, making it compatible with existing 1080p displays, video conferencing codecs, and other HD sink devices without replacing the source equipment.
