Atlona 1x8 HDMI Distribution Amplifier (1 RU) - AT-RON-448

Product Overview

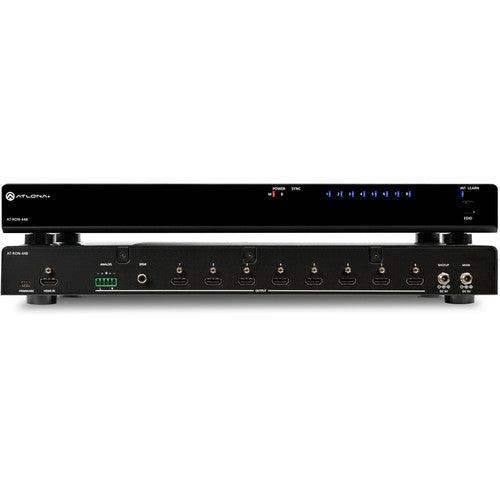

The Atlona AT-RON-448 is a 1×8 HDMI distribution amplifier that delivers 4K/UHD video at 60 Hz with 4:4:4 chroma sampling and full support for HDR formats including HDR10, Dolby Vision, and HLG to eight simultaneous HDMI outputs. Part of the Atlona Rondo Series, this commercial 4K HDR HDMI distribution amplifier is HDCP 2.2 compliant and supports HDMI data rates up to 18 Gbps, making it compatible with the most demanding 4K HDR sources and displays. With built-in EDID management, audio de-embedding, and support for cascading up to eight units, the AT-RON-448 addresses multi-display distribution requirements in professional AV, digital signage, and residential custom installation environments.

Product Description

The Atlona Rondo 448 (AT-RON-448) is an eight-output HDMI distribution amplifier engineered for 4K HDR signal distribution in commercial and professional AV installations. It accepts a single HDMI 2.0 source and distributes it to eight HDMI outputs simultaneously, supporting 4K/UHD resolution at 60 Hz with 4:4:4 chroma sampling and HDMI data rates up to 18 Gbps. The unit is HDCP 2.2 compliant, ensuring compatibility with the latest content protection requirements for UHD and HDR sources such as Ultra HD Blu-ray players, 4K streaming devices, and HDR-capable media servers. HDR format support includes HDR10, Hybrid Log-Gamma (HLG), and Dolby Vision at 60 Hz, providing full compatibility with current broadcast and consumer HDR standards. EDID management allows the unit to communicate a specific EDID to the source, ensuring the source transmits the desired resolution and audio format rather than negotiating based on a single display's capabilities. Audio de-embedding extracts two-channel PCM audio from the HDMI input to an unbalanced analog stereo output on a captive screw connector, and also outputs two-channel PCM or multi-channel bitstream audio to a coaxial S/PDIF digital output, providing integration options for AV receivers and whole-house audio systems. The AT-RON-448 supports cascading up to eight units, allowing system designers to expand from eight outputs to as many as 64 without compromising signal quality or performance. Multi-channel audio pass-through supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X. The unit ships with rack mounting brackets and an external universal power supply, and installs in a 1U, full rack width enclosure. Firmware can be updated in the field via the front-panel USB port.

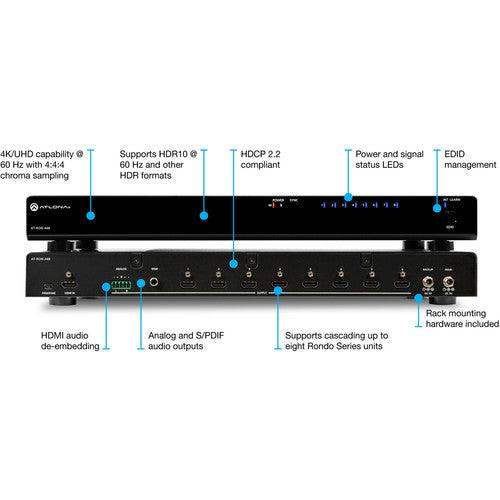

Key Features

• 1×8 HDMI Distribution — Distributes a single HDMI 2.0 source to eight HDMI outputs simultaneously for reliable multi-display deployments.
• 4K/UHD at 60 Hz with 4:4:4 Chroma — Supports full 4K/UHD resolution at 60 Hz with 4:4:4 chroma sampling, preserving full color fidelity across all eight outputs.
• HDR Format Support — Compatible with HDR10, Hybrid Log-Gamma (HLG), and Dolby Vision at 60 Hz for current and emerging HDR sources and displays.
• HDCP 2.2 Compliant — Supports the latest High-bandwidth Digital Content Protection specification, allowing protected UHD content to pass between authenticated devices.
• EDID Management — Manages EDID communication between the source and displays, ensuring the source transmits the preferred resolution and audio format for the AV system.
• Audio De-Embedding — Extracts two-channel PCM audio to an unbalanced analog stereo output and coaxial S/PDIF digital output for integration with AV receivers and audio systems.
• Multi-Channel Audio Pass-Through — Passes PCM, Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, and all standard multi-channel formats from the HDMI input.
• Cascadable up to Eight Units — Multiple Rondo Series units can be cascaded without performance degradation, scaling distribution from 8 to up to 64 outputs.
• 1U Rack-Mountable Enclosure — Full rack width, 1U enclosure installs in standard 19-inch equipment racks with included rack mounting brackets.
• Field-Updatable Firmware — Firmware updates are applied via the front-panel USB port, requiring no specialized tools or equipment.
• Front Panel LED Status Indicators — Power, HDMI input, and eight individual output LED indicators provide immediate signal status for installation and troubleshooting.

Typical Applications

• Digital signage networks requiring a single source distributed to multiple displays across a venue
• Retail TV showroom demonstrations where the same 4K HDR content must appear on multiple screens simultaneously
• Corporate lobby and common area video distribution from a media player or digital signage server
• Professional AV visualization and simulation environments requiring high-fidelity 4K graphics on multiple monitors
• Residential custom installations distributing Ultra HD Blu-ray or streaming sources to televisions and projectors throughout a home
• Education and training facilities displaying presentation content on multiple screens in large lecture halls or auditoriums
• Houses of worship distributing IMAG or program content to confidence monitors, overflow screens, and auxiliary displays

Technical Specifications

Frequently Asked Questions

Q: How many HDMI outputs does the AT-RON-448 provide?

The AT-RON-448 provides eight HDMI outputs, all distributing the same single HDMI input source simultaneously.

Q: Does the AT-RON-448 support 4K HDR content?

Yes. The AT-RON-448 supports 4K/UHD at 60 Hz with 4:4:4 chroma sampling and is compatible with HDR10, Hybrid Log-Gamma (HLG), and Dolby Vision at 60 Hz.

Q: Can I expand beyond eight outputs with the AT-RON-448?

Yes. The AT-RON-448 supports cascading up to eight units, allowing system designers to scale distribution to as many as 64 HDMI outputs without compromising signal performance.

Q: Does the AT-RON-448 support audio extraction?

Yes. The unit de-embeds two-channel PCM audio to an unbalanced analog stereo output on a captive screw connector, and also provides a coaxial S/PDIF digital output for two-channel PCM or multi-channel bitstream audio.

Q: Is the AT-RON-448 HDCP 2.2 compliant?

Yes. The AT-RON-448 is HDCP 2.2 compliant, supporting the latest content protection requirements for 4K UHD sources including Ultra HD Blu-ray and 4K streaming services.

Q: What rack space does the AT-RON-448 require?

The AT-RON-448 occupies 1U of rack space in a standard 19-inch equipment rack. Rack mounting brackets are included.

Q: How is the firmware updated on the AT-RON-448?

Firmware is updated via the Mini-USB port on the front panel of the unit, using a computer and the update utility. No specialized equipment is required.
