Atlas Sound WPD-KSWM – Wall Plate Key Switch Momentary Contact Closure

Product Overview

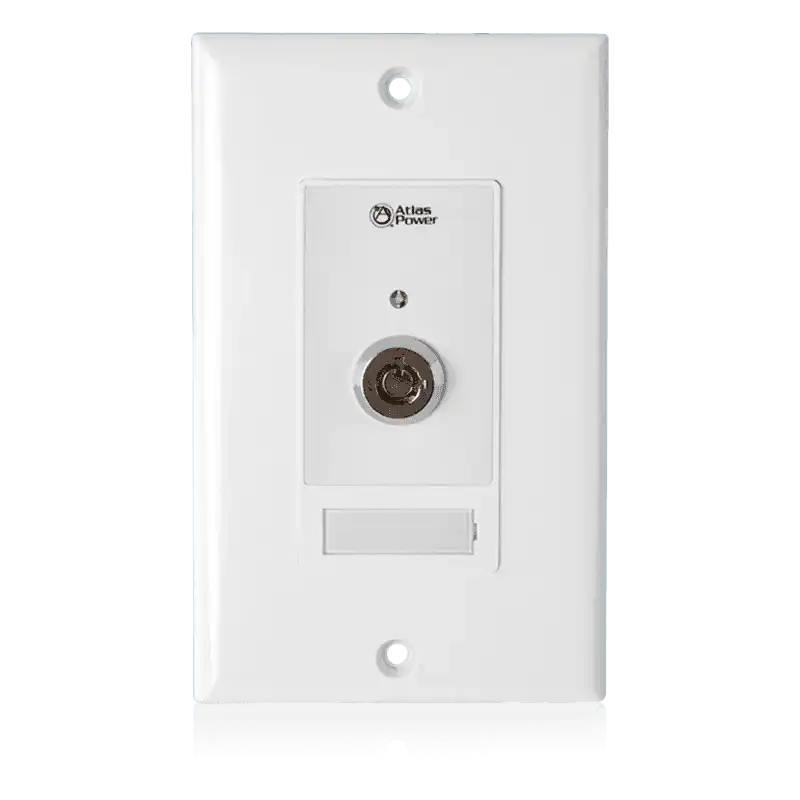

The Atlas Sound WPD-KSWM is a single-gang decor-style wall plate featuring an industrial tubular key switch that generates a momentary contact closure for remote activation and deactivation of compatible Atlas Power products. It is designed for use with the TSD-SEQ6 and ECS-3 power sequencers and similar Atlas Sound control devices. The unit includes a red LED status indicator, a removable label guard, and a Phoenix-style 4-conductor connector, providing a professional and functional AV control interface at the wall.

Product Description

The WPD-KSWM addresses the need for secure, key-controlled momentary switching in AV systems where unauthorized activation must be prevented. The industrial tubular key switch requires the correct key to operate, making it suitable for AV control points in classrooms, conference rooms, broadcast facilities, and secure installations where power sequencer access should be restricted to authorized personnel. When the key is turned, the unit generates a momentary contact closure signal that triggers the connected Atlas Power sequencer or compatible control device without latching—the circuit state returns to normal when the key is released or returned to neutral. The red LED provides a clear system status indication visible from across the room. The 4-conductor interface uses a removable Phoenix-style connector with 5.08mm pin spacing for clean termination and easy field connection. The unit operates over signal runs up to 200 feet using 22-gauge wire, allowing the WPD-KSWM to be located away from the controlled equipment in most standard room layouts. Constructed of durable white ABS material, it fits a standard single-gang electrical box. A removable label guard allows custom identification of the key switch function. A 60-month warranty is included.

Key Features

• Industrial Tubular Key Switch — Requires a key to activate, restricting AV system control to authorized users.
• Momentary Contact Closure Output — Generates a momentary signal compatible with Atlas Power sequencers including TSD-SEQ6 and ECS-3.
• Red LED Status Indicator — Provides clear visual system status confirmation at the wall plate.
• Phoenix-Style 4-Conductor Connector — Removable 5.08mm pin-spacing connector for clean field wiring and easy maintenance.
• 200-Foot Remote Activation Range — Operates over 22-gauge wire up to 200 feet from the controlled device.
• Single-Gang ABS Decor Plate — White finish fits standard single-gang electrical boxes for clean wall integration.
• Removable Label Guard — Allows custom identification of key switch function for end-user reference.

Technical Specifications
