Atlas Sound SM195-812 – Surface Mount Clock Speaker Enclosure for 840-812A
Atlas Sound SM195-812 – Surface Mount Clock Speaker Enclosure for 840-812A is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound SM195-812 – Surface Mount Clock Speaker Enclosure for 8...
Product Overview

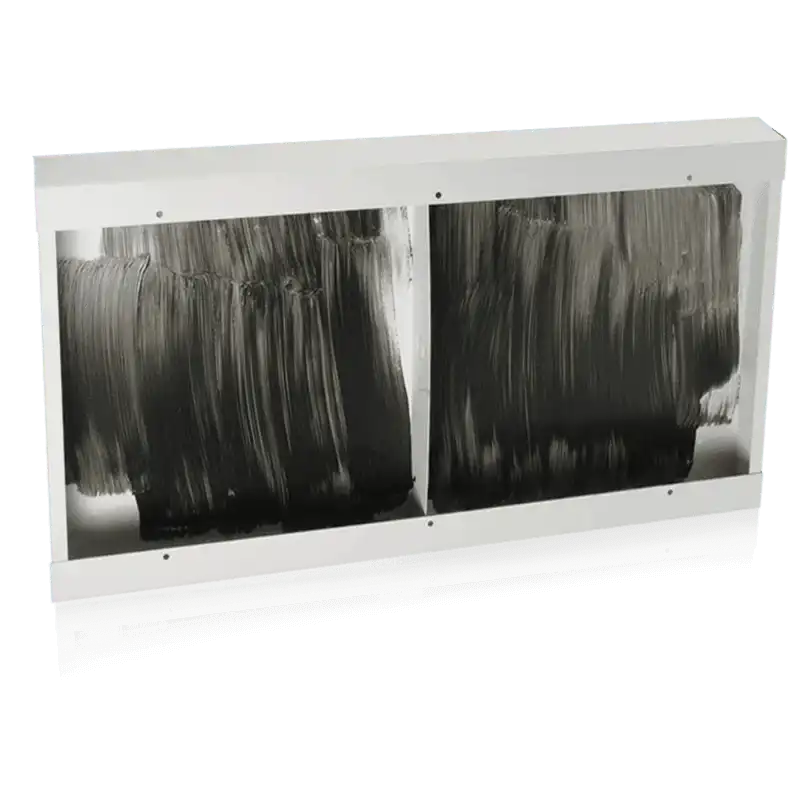

The Atlas Sound SM195-812 is a surface mount enclosure designed to house the 840-812A clock/speaker baffle in commercial paging and background music installations. Built from 20-gauge cold-rolled steel with heavy undercoating to minimize mechanical resonance, the SM195-812 provides a clean, wall-mounted housing for integrated clock and speaker systems. Its textured white epoxy finish matches standard 840 Series baffle panels, ensuring a consistent installed appearance. BAA and TAA compliant, making it eligible for government and institutional procurement.
Product Description
The SM195-812 is part of the AtlasIED 195 Series enclosure line, engineered specifically for recessed or surface mounting of 840 Series clock/speaker baffles. This surface-mount model carries the SM prefix and is finished in textured white epoxy that closely matches the 840 Series clock/speaker baffle panel face. The enclosure body is fabricated from 20-gauge cold-rolled steel and is heavily undercoated to suppress mechanical resonances that can degrade audio quality. A built-in compartment divider separates high-voltage and low-voltage wiring runs inside the enclosure, supporting clean and code-compliant wiring practices. Twelve knockouts are provided—four each on the top and bottom and two at each end—offering flexible conduit entry from multiple directions. All 195 Series enclosures include provisions for installing standard 8-inch loudspeakers. The SM195-812 measures 34-1/16 inches wide by 18-13/16 inches tall by 3 inches deep, sized to accept the full 840-812A baffle. Shipping weight is 13.5 lbs. A 60-month warranty is included.
Key Features
- Designed for 840-812A Baffle — Sized and finished to match the AtlasIED 840-812A clock/speaker baffle directly.
- 20-Gauge CRS Construction — Heavy undercoating suppresses mechanical resonances for clean audio.
- Compartment Divider — Separates high and low voltage wiring inside the enclosure for code compliance.
- 12 Knockouts — Four top, four bottom, two each end; supports flexible conduit routing.
- Standard 8" Speaker Provisions — Compatible with all 195 Series speaker mounting requirements.
- Textured White Epoxy Finish — Matches 840 Series clock/speaker baffle panels.
- Surface Mount Design — Suitable for new construction and retrofit applications.
- BAA and TAA Compliant — Qualifies for government procurement.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SM195-812 |
| Mounts Baffle | 840-812A |
| Height | 18 13/16" (47.78 cm) |
| Width | 34 1/16" (86.52 cm) |
| Depth | 3" (7.62 cm) |
| Construction | 20-Gauge CRS, heavily undercoated |
| Knockouts | 12 total (4 top, 4 bottom, 2 each end) |
| Finish | Textured White Epoxy |
| Shipping Weight | 13.50 lbs (6.12 kg) |
| Compliance | BAA, TAA |
| Warranty Period | 60 months from date of purchase |
