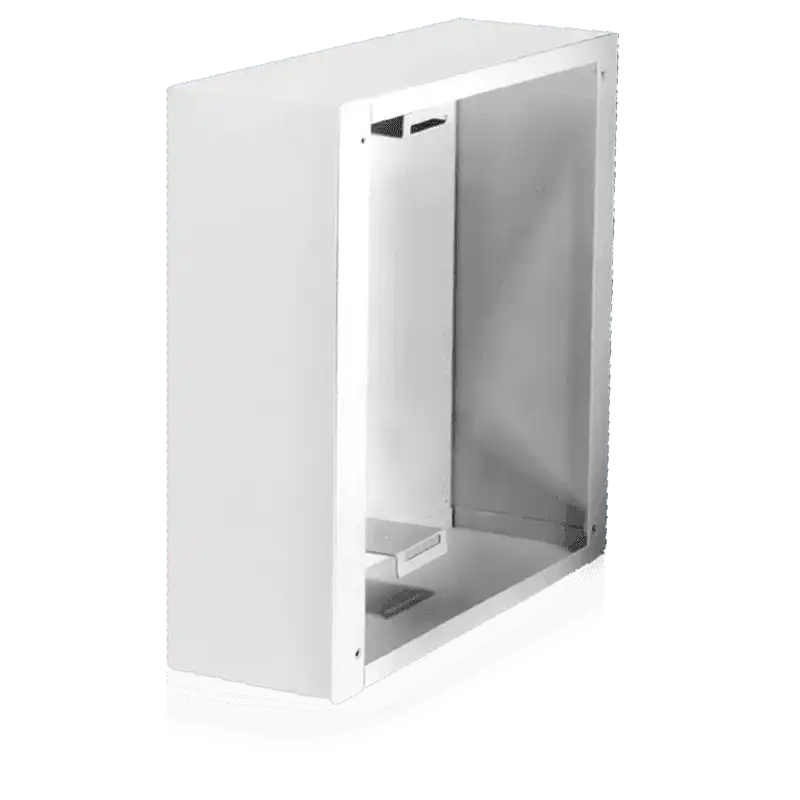

Atlas Sound SE175-4 – 8" Surface Mount Square Enclosure 4" Deep
Atlas Sound SE175-4 – 8" Surface Mount Square Enclosure 4" Deep is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound SE175-4 – 8" Surface Mount Square Enclosure 4"...
Product Overview
The Atlas Sound SE175-4 is an 8-inch surface mount square enclosure designed for commercial in-ceiling audio installations where recessed mounting is not possible or desired. Constructed from welded cold-rolled steel with a textured white epoxy finish, the SE175-4 accommodates a wide range of AtlasIED square baffles with both torsion-spring and screw-mount attachment systems. Listed to UL 1480 and UL 2043, this enclosure meets code requirements for general signaling and plenum ceiling environments.
Product Description
The SE175-4 enclosure provides a surface-mounted alternative for installers working in spaces where a flush recessed installation is not achievable — including concrete ceilings, decorative ceiling surfaces, or shallow ceiling cavities. The welded CRS construction and undercoated interior minimize mechanical and acoustical resonance, which would otherwise degrade speaker performance at bass frequencies. The 4-inch depth provides sufficient internal volume for commercial-grade 8-inch speakers to operate within their designed acoustic parameters. The textured white epoxy finish integrates cleanly with standard commercial ceilings and is durable enough for high-traffic facilities. The enclosure is designed to accept the full range of Atlas Sound square baffles in both torsion-spring and screw-mount configurations, giving installers flexibility to specify baffles appropriate to the security and access needs of each project. The 11-5/8-inch height accommodates standard square baffle profiles, and the UL listings confirm compliance for both life-safety signaling and return air plenum installations. At 4.16 lbs shipping weight, the SE175-4 is easy to handle during overhead installation work.
Key Features
- Welded CRS Construction — Undercoated interior minimizes mechanical and acoustical resonance.
- Torsion-Spring and Screw-Mount Compatibility — Accepts the full range of Atlas Sound square baffles in both attachment styles.
- Textured White Epoxy Finish — Durable commercial appearance suitable for high-traffic installations.
- UL 1480 & UL 2043 Listed — Approved for general signaling and plenum ceiling environments.
- 4" Interior Depth — Adequate volume for 8-inch commercial-grade speaker driver performance.
Technical Specifications
| Specification | Value |
|---|---|
| Height | 11 5/8" (29.53 cm) |
| Depth | 4" (10.16 cm) |
| Finish | Textured White Epoxy |
| Shipping Weight | 4.16 lbs (1.89 kg) |
| Safety Listed | UL 1480, UL 2043 |
| Warranty | 60 months from date of purchase |
