Atlas Sound PA60G – 60W Single-Channel Power Amplifier Global Power Supply
Atlas Sound PA60G – 60W Single-Channel Power Amplifier Global Power Supply is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound PA60G – 60W Single-Channel Power Amplifier Global Power...
Product Overview

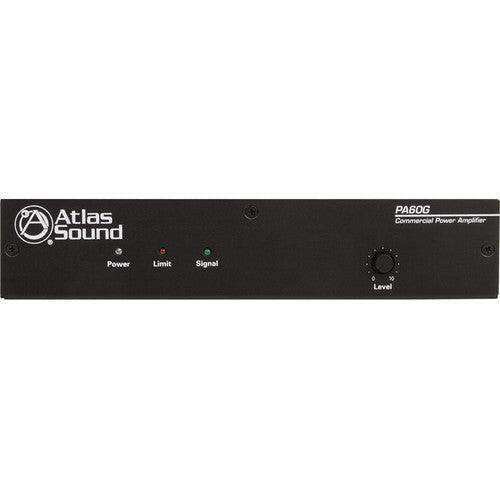

The Atlas Sound PA60G is a compact, single-channel 60-watt power amplifier with a global power supply, designed for paging, background music, and distributed audio systems in commercial AV installations. It delivers 60 watts into a 70.7V or 100V speaker line, making it suitable for small-to-medium 70V distributed speaker systems in offices, retail spaces, and institutional facilities. The global power supply (100–240 VAC) enables worldwide deployment without voltage adaptation, and the balanced and unbalanced inputs accommodate a broad range of source equipment.
Product Description

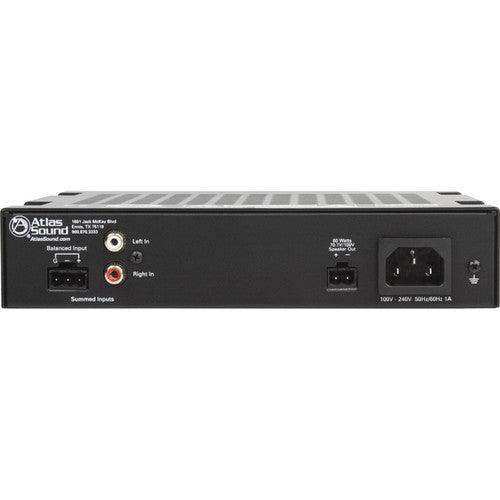

The PA60G accepts a balanced line-level input via Phoenix connector and an unbalanced RCA summing input, giving installers flexibility when integrating with DSPs, mixers, or background music sources. Output is delivered to 70.7V or 100V speaker lines via Phoenix connector, accommodating both North American and international 100V distributed audio standards. Status LEDs provide visual confirmation of power and signal activity during commissioning and operation. Removable level controls with an optional security cover allow the installer to set gain and forget it, preventing unauthorized adjustments in client-accessible locations. The global power supply accepts 100–240 VAC at 60 Hz, with an operating power consumption of 102 watts and 8-watt standby draw. Frequency response extends from 50 Hz to 20 kHz, THD is rated at 0.5%, and impedance is 166 ohms. Physical dimensions are 1.8" H x 8.5" W x 7.8" D, weighing 2.9 lbs, making the PA60G suitable for shelf mounting or use with the optional rack-mount kit. The unit is ISO-9001 and UL certified. The PA series is engineered from the ground up by Atlas Sound with the practical requirements of professional installation personnel in mind.
Key Features
- 60W into 70.7V/100V Output — Drives distributed speaker lines at North American 70.7V and international 100V standards from a single unit.
- Global Power Supply (100–240 VAC) — Accepts worldwide mains voltages without modification, simplifying international deployment and project standardization.
- Balanced Line Input via Phoenix Connector — Accepts balanced line-level signals from DSPs, mixers, and AV processors with low noise and hum rejection.
- Unbalanced RCA Summing Input — Provides a second input path for consumer or prosumer sources, both inputs sum to the single output channel.
- Status LEDs — Onboard indicators confirm power and signal status during installation and ongoing system monitoring.
- Level Control with Security Cover — Set-and-secure gain control prevents unauthorized adjustment in client-accessible equipment rooms.
- Optional Rack-Mount Kit — Available accessory for standard 19" rack mounting in equipment rooms and head-end closets.
- ISO-9001 and UL Certified — Manufactured to ISO quality standards and UL certified for commercial AV installations.
Typical Applications
- Conference room
- Commercial meeting space
- Multi-purpose room
- Training room
- House of worship
- All-hands room
Technical Specifications
| Specification | Value |
|---|---|
| Output Power | 60W RMS |
| Output Voltage | 70.7V and 100V |
| Impedance | 166 Ω |
| Inputs | 1x Balanced Phoenix (line), 1x Unbalanced RCA (summing) |
| Analog Audio Inputs | 2 |
| Frequency Response | 50 Hz – 20 kHz |
| THD | 0.5% |
| Input Voltage | 100–240 VAC (global) |
| Operating Power Consumption | 102W |
| Standby Power Consumption | 8W |
| Height | 1.8" |
| Width | 8.5" |
| Depth | 7.8" |
| Weight | 2.90 lbs |
| Certifications | ISO-9001, UL |
Frequently Asked Questions
Q: Does the PA60G support both 70.7V and 100V distributed speaker lines?
A: Yes. The PA60G outputs to both 70.7V and 100V speaker lines via a single Phoenix output connector, supporting North American and international distributed audio standards.
Q: Is a rack-mount kit included?
A: No. The optional rack-mount kit is available as a separate accessory for standard 19" rack installation.
Q: Can the PA60G be used internationally?
A: Yes. The global power supply accepts 100–240 VAC without modification, making the PA60G suitable for international deployments.
Q: How do both inputs interact?
A: The balanced Phoenix input and the unbalanced RCA summing input sum together to the single output channel. Both can be active simultaneously.
Q: What is the purpose of the security cover on the level control?
A: The optional removable security cover locks the level control in position after the installer sets the gain, preventing end-users or non-technical staff from adjusting the output level.
Q: What certifications does the PA60G hold?
A: The PA60G is ISO-9001 certified and UL listed for commercial AV installation use.
