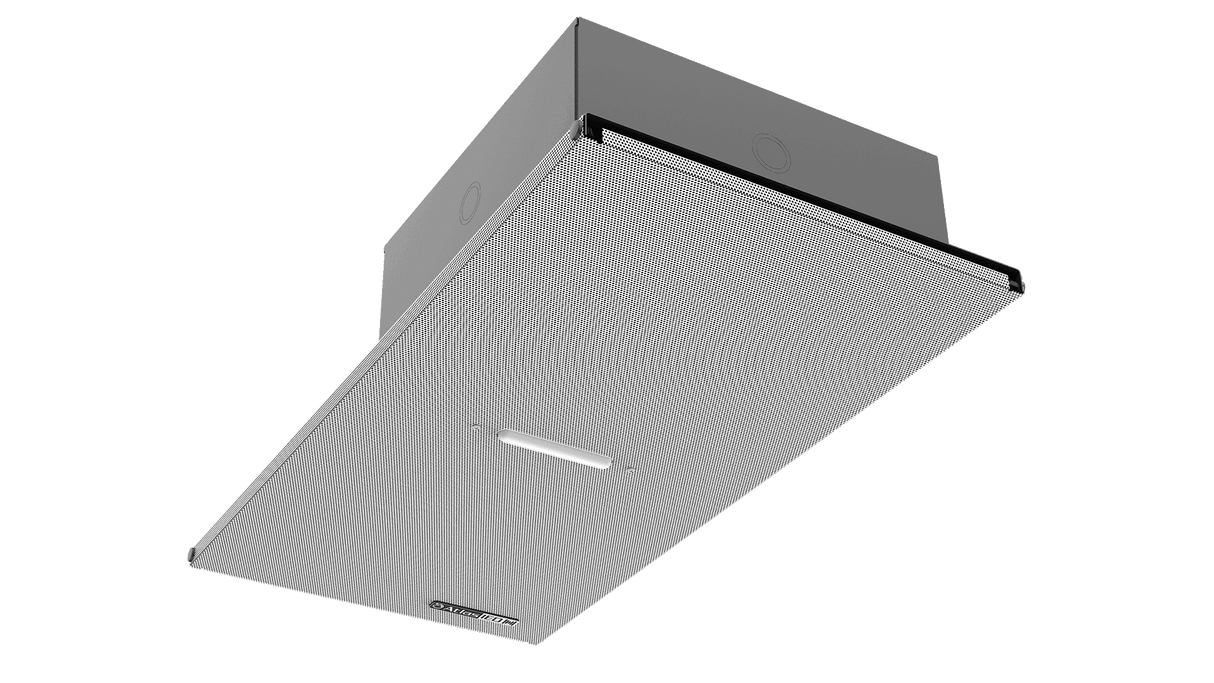

Atlas Sound IP-12SYSMF PoE+ Indoor 1' x 2' Suspended Ceiling Mount IP Speaker with Talkback Microphone and LED Flasher

Product Overview

The Atlas Sound IP-12SYSMF is a PoE+ indoor IP speaker with talkback microphone and LED flasher, built into a 1' x 2' lay-in format that drops directly into a suspended ceiling grid. It is designed for network paging, bell schedules, intercom, and mass notification in classrooms, corridors, offices, and other commercial interiors where two-way communication and a visual alert indicator are required at the speaker location. An 8-inch coaxial driver optimized for voice intelligibility overcomes high ambient noise in larger spaces, while the integrated electret condenser microphone enables talkback to any PC or phone handset. As an AtlasIED IPX Series endpoint, it registers natively with InformaCast and Revolution notification platforms or directly to a SIP server.

Product Description

For IT and facilities teams deploying a school intercom or enterprise paging system, the IP-12SYSMF consolidates three devices into one ceiling tile: a high-output speaker, a talkback microphone, and an LED visual flasher. The 1' x 2' suspended ceiling mount IP speaker installs in a standard grid opening, and the enclosure and baffle ship pre-assembled with mounting hardware, keeping installation to a single network drop per location.

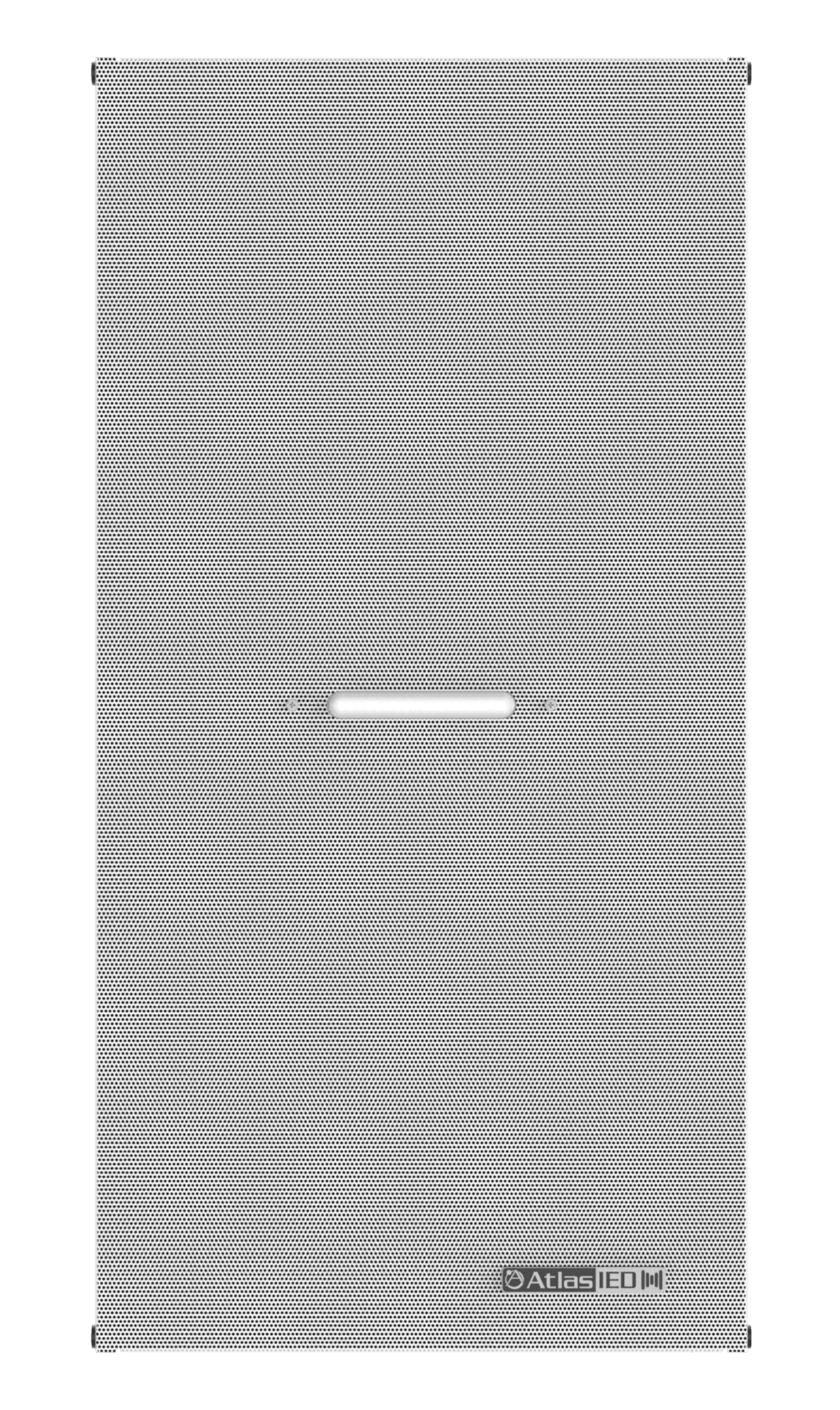

Audio quality starts with the 8-inch (205 mm) coaxial driver with a 1-inch high-frequency element, voiced for speech intelligibility with 98 dB average sensitivity and 86 Hz – 15.5 kHz response — enough output for cafeterias, gymnasiums adjacent corridors, and open-plan offices. The grille uses 18-gauge metal construction with a perforated 22-gauge screen over the driver, finished in neutral white electrostatic powder coat to blend with standard ceiling tile. An omnidirectional subminiature electret condenser microphone sits behind the grille adjacent to the speaker, supporting two-way intercom and ambient monitoring from any PC or phone handset — a key capability for school safety and emergency communication workflows.

On the network, the IP-12SYSMF behaves like a VoIP handset. It registers as a communication endpoint within Singlewire InformaCast and Syn-Apps Revolution for advanced alerting, bell schedules, pre-recorded and scheduled announcements, and intercom. Where third-party software is not used, it registers directly to a SIP server or VoIP communications manager for paging and two-way communication. Auto-provisioning and auto-registration via SLP, DHCP Option 72, or IEDNet+ place the unit on your Voice VLAN with the same QoS as your phones. Power comes from standard IEEE 802.3af/at PoE, and GPI/O ports (two inputs, one 2A relay output) trigger critical alert notification or tie in third-party access control and security systems. Balanced aux line-in and line-out connections round out the integration options.

Key Features

• Three Functions in One Ceiling Tile — Speaker, talkback microphone, and LED flasher combine in a single 1' x 2' lay-in unit, reducing device count and cabling per room.
• 8-Inch Coaxial Driver Optimized for Voice — 98 dB average sensitivity and 86 Hz – 15.5 kHz response deliver intelligible announcements over high ambient noise in large spaces.
• Integrated Talkback Microphone — The omnidirectional electret condenser mic enables two-way intercom and monitoring from the speaker location to any PC or phone handset.
• LED Visual Flasher — Provides a visual notification indicator at the speaker location to reinforce audible alerts.
• PoE+ Single-Cable Installation — IEEE 802.3af (12W) or 802.3at (25W) power over Ethernet carries audio, control, and power on one Cat5e/Cat6 run.
• Native InformaCast and Revolution Registration — Functions as a standard endpoint in leading mass notification platforms for bell schedules, scheduled announcements, and emergency alerting.
• Direct SIP Registration — Registers to a SIP server or VoIP communications manager without third-party software for paging and two-way communication.
• Auto-Provisioning on the Voice VLAN — SLP, DHCP Option 72, or IEDNet+ discovery configures the speaker like a VoIP handset with shared QoS.
• GPI/O for Security Integration — Two general purpose inputs and a 2A @ 30 VDC relay output trigger alerts or connect access control and third-party systems.
• Pre-Assembled with Mounting Hardware — Enclosure and baffle arrive factory assembled, cutting suspended ceiling speaker installation time per drop.
• Five-Year Manufacturer Warranty — AtlasIED backs the IP-12SYSMF with a 60-month warranty from date of purchase.

Typical Applications

• Training room — scheduled announcements, intercom, and visual alerting in instructional spaces
• Commercial meeting space — paging and emergency notification across office floors
• Government space — two-way intercom endpoints for municipal and public buildings
• Multi-purpose room — high-output voice coverage with talkback in flexible-use rooms
• House of worship — announcement and notification coverage in classrooms and gathering areas
• All-hands room — overhead paging and alert tones in large assembly spaces

Technical Specifications

Frequently Asked Questions

Does the IP-12SYSMF support two-way intercom?
Yes. The integrated omnidirectional electret condenser microphone enables two-way communication and ambient monitoring from the speaker location to any PC or phone handset on the system.

Which notification platforms does it work with?
It registers as a native communication endpoint within Singlewire InformaCast and Syn-Apps Revolution for alerting, bell schedules, intercom, and scheduled announcements. It can also register directly to a SIP server or VoIP communications manager without third-party software.

How does it install in a suspended ceiling?
The 1' x 2' format drops into a standard suspended ceiling grid. The enclosure and baffle ship pre-assembled and include mounting hardware, so each location needs only one network cable pull.

What power does it require?
Standard power over Ethernet: up to 12 watts on IEEE 802.3af or 25 watts on 802.3at (PoE+). An external power supply option is also available.

Can it trigger or respond to other building systems?
Yes. GPI/O ports — two general purpose inputs and one relay output rated 2A @ 30 VDC — allow critical alert triggering and integration with access control or other third-party systems.

Is it suitable for outdoor use?
No. The IP-12SYSMF is an indoor model. For exterior or high-abuse locations, see vandal and weather resistant IPX models such as the IP-HVP, available at Creation Networks.

What warranty and support are included?
AtlasIED provides a 60-month warranty. Creation Networks offers design assistance for IP paging and intercom deployments — contact us at creationnetworks.net.
