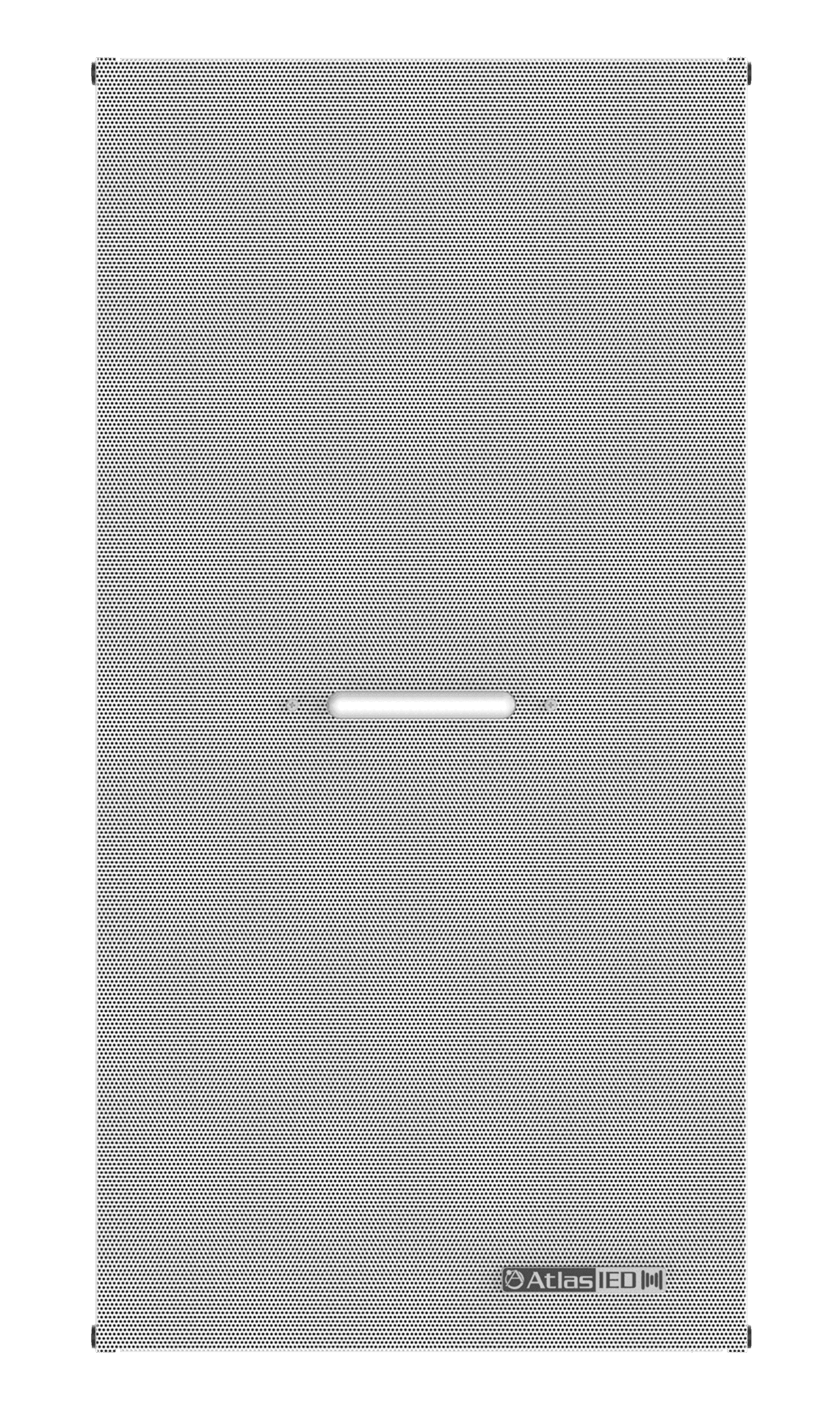

Atlas Sound IP-12SYSM PoE+ Indoor 1' x 2' Suspended Ceiling Mount IP Speaker with Talkback Microphone and LED Flasher

Product Overview

The AtlasIED IP-12SYSM is a PoE+ powered 1' x 2' suspended ceiling mount IP speaker with an integrated talkback microphone, built for network-wide paging, mass notification, and intercom in commercial facilities. It registers as a native endpoint in InformaCast and Revolution advanced notification platforms, or directly to a SIP server for VoIP paging without third-party software. With an 8-inch coaxial driver and high output, this ceiling IP speaker installation is suited to large rooms and high ambient noise areas where standard network speakers fall short. For integrators standardizing on a single enterprise communications platform, the IP-12SYSM extends voice alerting and two-way communication over existing LAN/WAN infrastructure.

Product Description

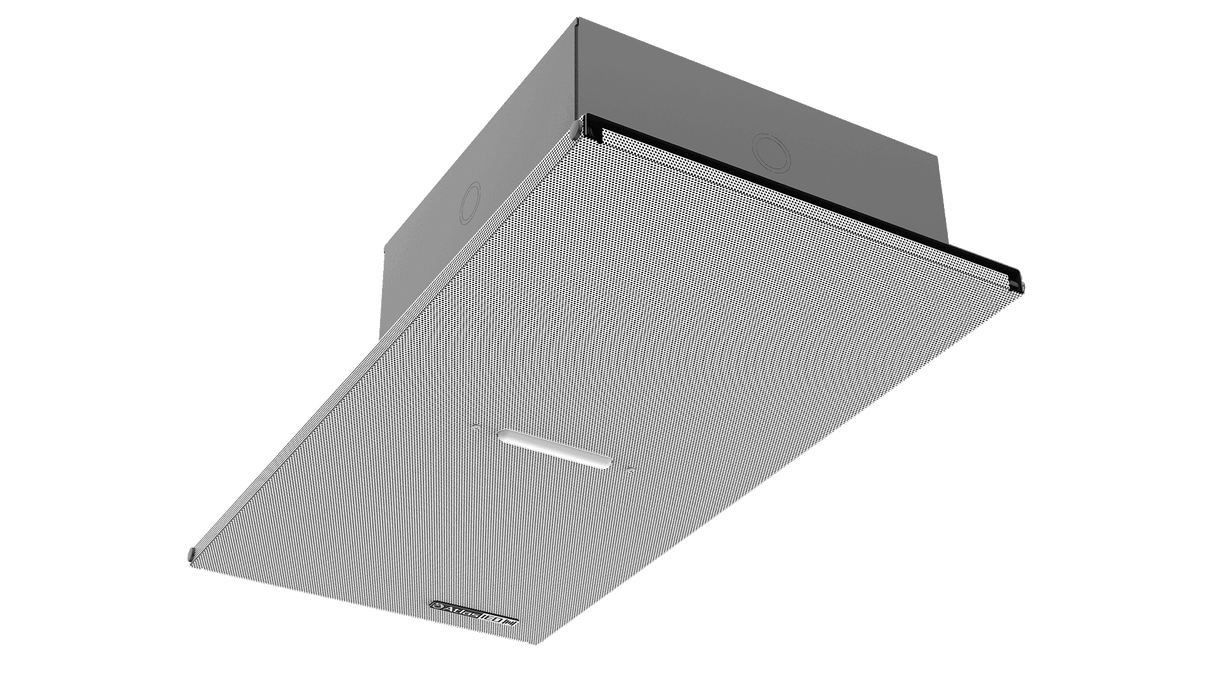

The IP-12SYSM drops into a standard suspended ceiling grid as a 1' x 2' tile replacement, arriving factory assembled with speaker, grille, and PCB amplifier/control board pre-mounted and mounting hardware included. The 8-inch (205 mm) coaxial driver with 1-inch high-frequency element is voiced for voice intelligibility, delivering 98 dB SPL average sensitivity across an 86 Hz to 15.5 kHz response. Power is delivered over a single RJ-45 connection: 12 watts maximum on 802.3af PoE or 25 watts maximum on 802.3at PoE+, which simplifies commercial audio deployment by eliminating dedicated speaker wiring and local power. An omnidirectional electret condenser microphone mounted behind the grille enables two-way SIP intercom and room monitoring from any PC or phone handset. Auto-provisioning and auto-registration let IT teams configure the speaker on the voice VLAN like a VoIP handset, sharing the same QoS policies as the phone system — supporting SLP for Singlewire, DHCP Option 72 for Syn-Apps, or IEDNet+ for AtlasIED applications, with an HTTP GUI for static configuration. Audio support includes G.711 u-law/a-law and G.722 wideband codecs, plus balanced aux line-in and line-out connections and a 15-watt integrated amplifier driving an 8-ohm primary output. Two general-purpose inputs and one general-purpose output (2A at 30 VDC) provide triggers for critical alert notification and integration with third-party security and access control systems. The 18-gauge steel grille with perforated 22-gauge screen, finished in neutral white powder coat, stands up to commercial environments while maximizing acoustic open area. For school paging system and enterprise mass notification speaker projects, the IP-12SYSM handles bell schedules, scheduled announcements, pre-recorded alerts, and live paging from one network endpoint.

Key Features

• PoE/PoE+ Powered — A single RJ-45 network drop delivers both data and power (12W on 802.3af, 25W on 802.3at), cutting installation cost and cabling complexity.
• 8-Inch Coaxial Driver — The 8" LF / 1" HF coaxial speaker is optimized for voice intelligibility with 98 dB SPL average sensitivity for high ambient noise spaces.
• Integrated Talkback Microphone — An omnidirectional electret condenser mic behind the grille enables two-way intercom and room monitoring from any PC or handset.
• InformaCast and Revolution Native — Registers directly as a communication endpoint in Singlewire InformaCast and Syn-Apps Revolution for enterprise mass notification.
• Direct SIP Registration — Registers to a SIP server or VoIP communications manager for paging and two-way communication without third-party notification software.
• Auto-Provisioning on the Voice VLAN — Configures like a VoIP handset with auto-registration, sharing QoS with the phone system for reliable delivery.
• GPI/O Integration — Two general-purpose inputs and one relay output (2A @ 30 VDC) trigger critical alerts or connect third-party systems.
• Aux Line-In and Line-Out — Balanced auxiliary audio connections support background music feeds or daisy-chained zone expansion.
• Commercial-Grade Construction — 18-gauge steel grille with 22-gauge perforated screen in neutral white powder coat, plenum-rated UL 2043 listed.
• Factory Assembled — Speaker, grille, and amp/control board ship pre-assembled with mounting hardware for fast suspended ceiling installation.

Typical Applications

• Government spaces requiring facility-wide critical alerting over the network
• Houses of worship with paging and announcement needs across large spaces
• Training rooms and multi-purpose rooms needing scheduled announcements and intercom
• Auditoriums and all-hands rooms with high ambient noise
• Commercial meeting spaces standardizing on VoIP-based paging

Technical Specifications

Frequently Asked Questions

Does the IP-12SYSM work with InformaCast?
Yes. It registers as a native communication endpoint in Singlewire InformaCast and Syn-Apps Revolution, supporting bell schedules, scheduled announcements, pre-recorded alerts, and live paging.

Can it operate without third-party notification software?
Yes. The speaker registers directly to a SIP server or VoIP communications manager for paging and two-way intercom, so a dedicated notification platform is optional.

What power does it require?
It is powered entirely over Ethernet: 12 watts maximum on 802.3af PoE or 25 watts maximum on 802.3at PoE+ through a single RJ-45 connection. An external power supply option is also available.

How is it installed?
The unit replaces a standard 1' x 2' suspended ceiling tile. It ships factory assembled with grille, speaker, and electronics pre-mounted, and includes mounting hardware.

Does the talkback microphone support room monitoring?
Yes. The omnidirectional electret condenser microphone enables two-way communication or audio monitoring from the speaker location to any PC or phone handset.

Is it suitable for plenum ceiling spaces?
Yes. The IP-12SYSM carries a UL 2043 listing along with UL 62368-1, CSA, IEC 62368-1 CB Scheme, and FCC certifications.

What is the warranty?
AtlasIED covers the IP-12SYSM with a 60-month warranty from date of purchase, and Creation Networks provides pre- and post-sale support for your AV system integration.
