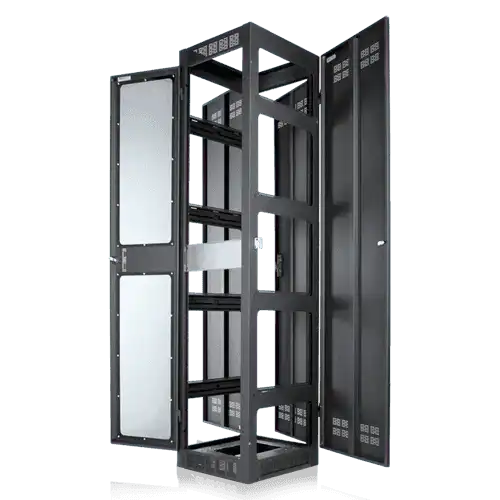

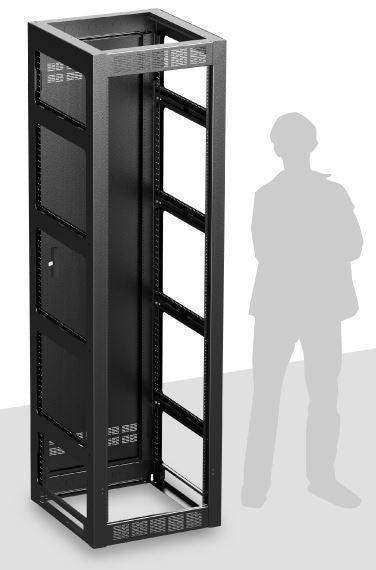

Atlas Sound FMA44-25G Gangable Rack 25.5 inch Deep, 44RU **Shown with Optional Side Panels & Front Door**

Product Overview

The AtlasIED FMA44-25G is a 44RU gangable equipment rack, 25.5 inches deep, built for commercial AV rack installations where multiple bays must be joined into a continuous equipment wall. Designed with contractor input, it addresses the wire management and storage demands of modern head-end rooms, equipment closets, and rack farms. The 14-gauge steel construction, included rear door, and pre-tapped 12-gauge mounting rails make it a dependable foundation for amplifiers, DSPs, network switches, and source gear. Note: product photos show optional side panels and front door, which are sold separately.

Product Description

The FMA44-25G features increased width for better wire management inside the bay, with slots maintained in the hat sections for cable routing and slots in the rack rails for cable pass-through and front door hinge access. Tops, bottoms, and frames are 14-gauge steel, and hat sections provide rail slots and retainer holes for added strength. Two pairs of 12-gauge CRS adjustable mounting rails come plated, drilled, and tapped 10-32 with hash marks indicating rack unit increments, which speeds equipment layout during commercial AV installation. Hat sections are sized for standard 19-inch panels, convenient for mounting stick-on modules and other hardware.

Integrators planning ganged rack rows will appreciate the practical details: holes for optional surface doors are pre-drilled with factory-installed threaded inserts so doors can be added after equipment is loaded, and a return provides a stop when flush-mount doors are used. Removable standard 2U panels at the rear of the cabinet top and bottom include 3/8-inch knockouts for BNC connectors, well suited to diversity wireless microphone systems. A 10RU open area on the top section accepts AtlasIED fan panels or 5000 Series top panels for ventilation planning, and multiple vent slots run along the top and bottom. The scratch-resistant textured black epoxy finish holds up in service, leg levelers are included, and optional swing-out side panels (FMA44-25LRPV) secure the end racks of a ganged row. Plexiglass, perforated steel, and solid front doors are optional. Find rack accessories and the rest of the equipment chain in our AtlasIED collection.

Key Features

• 44RU Gangable Design — Joins with additional FMA racks to build continuous multi-bay equipment rows in head-end rooms.
• 14-Gauge Steel Construction — Heavy-gauge tops, bottoms, and frames with reinforced stiffeners prevent flexing under loaded equipment.
• Pre-Tapped 12-Gauge Rails — Two pairs of adjustable CRS rails, tapped 10-32 with RU hash marks, speed rack elevation layout and equipment mounting.
• Contractor-Driven Wire Management — Increased width, hat-section slots, and rail pass-through slots keep cable bundles organized and serviceable.
• Load-First Door Installation — Pre-drilled holes with factory-installed threaded inserts let optional doors mount after equipment is loaded.
• BNC Knockout Panels — Removable 2U rear panels with 3/8-inch knockouts support antenna pass-through for diversity wireless systems.
• Ventilation Ready — Multiple top and bottom vent slots plus a 10RU open top area accept AtlasIED fan panels or 5000 Series top panels.
• Rear Door and Locks Included — Ships with a rear door and locks for equipment security out of the box.
• Leg Levelers Included — Level the rack on uneven floors during installation without extra parts.
• UL1678 Listed — Safety listing supports specification in commercial and government projects.

Typical Applications

• Commercial meeting spaces
• Government spaces
• House of worship
• Auditoriums
• Broadcast studios
• Training rooms
• Multi-purpose rooms

Technical Specifications

Frequently Asked Questions

What does "gangable" mean on the FMA44-25G?
The rack is designed to bolt to adjacent FMA racks to form a continuous multi-bay row. Optional swing-out side panels (FMA44-25LRPV) secure the exposed ends of a ganged run.

Are side panels and a front door included?
No. The product photos show optional side panels and front door. The rack ships with a rear door, locks, and leg levelers; plexiglass, perforated steel, and solid front doors are optional.

Can doors be installed after the rack is loaded?
Yes. Door mounting holes are pre-drilled with factory-installed threaded inserts, so optional surface doors can be added after equipment is in place.

How is ventilation handled?
Multiple vent slots run along the top and bottom, and a 10RU open area on the top section accepts AtlasIED fan panels or 5000 Series top panels for active or passive cooling.

Is the FMA44-25G suitable for wireless microphone systems?
Yes. Removable 2U rear panels include 3/8-inch BNC knockouts, making antenna pass-through for diversity wireless systems straightforward.

What warranty does AtlasIED provide?
The FMA44-25G carries a 60-month warranty from the date of purchase, and Creation Networks supports your project from quoting through delivery.

Where can I find rack accessories and matching AV equipment?
Browse the AtlasIED collection at Creation Networks for fan panels, doors, amplifiers, and processors to complete the rack build.
