Atlas Sound EZ96-4 – EZ Mount Flanged Enclosure 4-Inch Loudspeaker
Product Overview

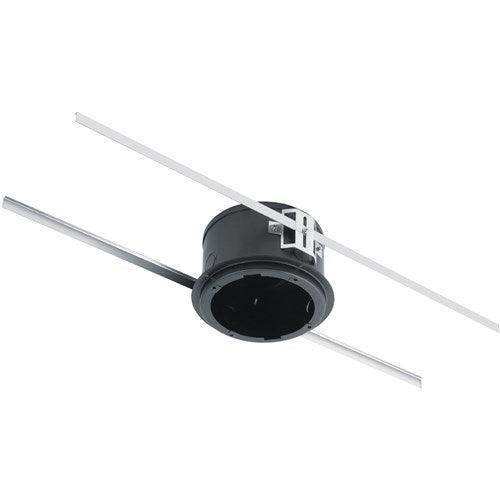

The Atlas Sound EZ96-4 is a patented EZ Mount flanged round enclosure designed for 4-inch loudspeaker installations in suspended tile and drywall ceilings. The EZ Mount system (U.S. Patent #4,484,658) uses adjustable support rails to transfer the combined weight of the speaker, baffle, and enclosure to the ceiling's structural support members, eliminating the need for tile bridges or conventional screw mounting. This enclosure is TAA and BAA compliant and carries a 60-month warranty.
Product Description
The EZ96-4 enclosure is part of Atlas Sound's most popular 4-inch round enclosure lineup and accommodates a wide selection of baffles, including the 51-4 and 60-4 models. The EZ Mount Enclosure/Rail System transfers the composite weight of the speaker, baffle, and enclosure assembly to the ceiling's structural support members through adjustable support rails that are included with the unit. The rails adjust vertically and are then secured to pre-mounted brackets on the enclosure with furnished screws, providing a stable, vibration-resistant installation. This approach is significantly faster than tile bridge installation methods and avoids the stress concentrations that screw mounting can place on finished ceiling tiles. At 4.25 inches (10.80 cm) in depth and 5.125 inches (13.02 cm) in diameter, the EZ96-4 is sized for standard 4-inch ceiling speaker installations. The unit is TAA and BAA compliant, qualifying it for government and federally funded projects. A 60-month warranty is included, consistent with Atlas Sound's long-term support commitment for installed AV infrastructure.
Key Features
- Patented EZ Mount Rail System — Transfers speaker, baffle, and enclosure weight to ceiling structure members for a secure, code-compliant installation.
- No Tile Bridge Required — Eliminates the most time-consuming step in conventional ceiling speaker installation.
- Adjustable Support Rails Included — Rails adjust vertically and secure to pre-mounted enclosure brackets with furnished hardware.
- Wide Baffle Compatibility — Accommodates Atlas Sound 51-4 and 60-4 series baffles.
- TAA and BAA Compliant — Eligible for government and federally funded procurement.
- 60-Month Warranty — Long-term warranty coverage for permanent ceiling installations.
Technical Specifications
| Specification | Value |
|---|---|
| Model | EZ96-4 |
| Depth | 4 1/4" (10.80 cm) |
| Diameter | 5 1/8" (13.02 cm) |
| Speaker Size | 4 inch |
| Shipping Weight | 2.33 lbs (1.06 kg) |
| Compatible Baffles | 51-4, 60-4 |
| Patent | #4,484,658 |
| Compliance | TAA, BAA |
| Warranty Period | 60 months from date of purchase |
