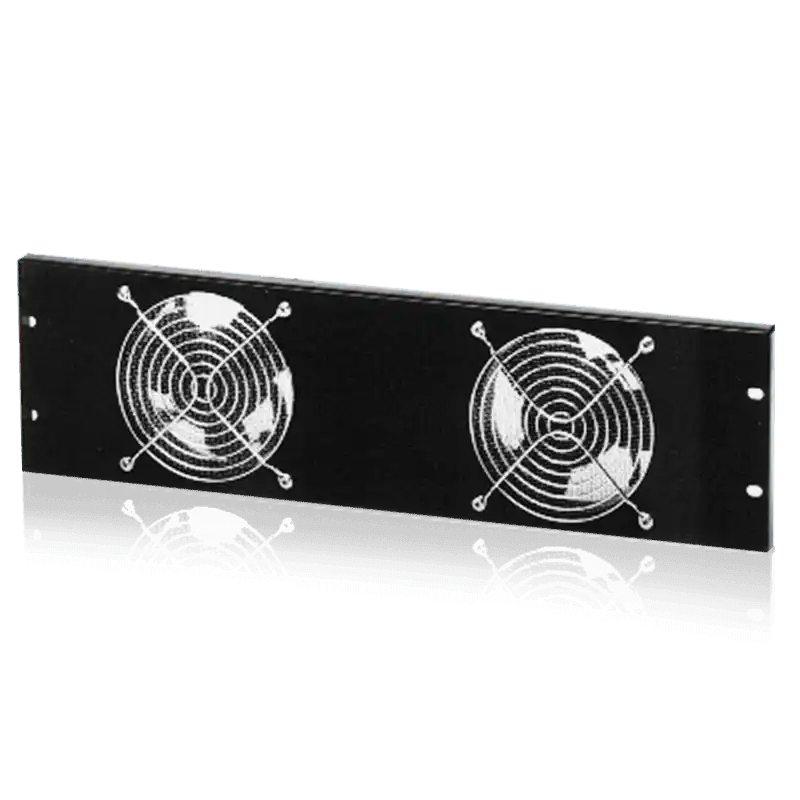

Atlas Sound EFP3-2 – 19" Dual Fan Panel Recessed Mount 3RU
Product Overview
The Atlas Sound EFP3-2 is a recessed-mount dual fan panel that occupies 3 rack units in standard 19-inch EIA cabinets, delivering 230 CFM of total airflow for rapid heat dissipation from enclosed rack equipment. Each of the two fans provides 115 CFM independently, and the panel can be configured for either exhaust or intake cooling without tools. This rack fan panel is the standard solution for thermal management in AV equipment racks, server rooms, and broadcast infrastructure enclosures.
Product Description
The EFP3-2 mounts to standard EIA 19-inch rack rails in a recessed configuration, providing 230 CFM of combined airflow through two 115 CFM fans. The fans are factory-configured for exhaust cooling but can be physically rotated in the field to intake mode without specialized tools, giving integrators flexibility during installation. Each fan is protected by a nickel-chrome plated wire grille backed with a steel wire mesh screen, preventing debris ingestion and providing physical protection against accidental contact. The 16-gauge cold-rolled steel panel mounts to all EIA-standard mounting rails and ships in standard black finish to match most rack enclosures. A 6-foot line cord is included for direct connection to an AC outlet or power strip within the rack. Operating at 30 watts total draw, the EFP3-2 is power-efficient relative to its airflow output. The recessed mount keeps the fan assembly within the rack footprint, avoiding front clearance issues in tight equipment rooms. This panel is suitable for any commercial AV rack where passive convection is insufficient to maintain safe operating temperatures for installed equipment.
Key Features
- Dual 115 CFM Fans — Two fans deliver a combined 230 CFM of airflow for rapid and efficient heat removal from enclosed rack cabinets.
- Field-Reversible Fan Direction — Fans rotate easily in the field for exhaust or intake cooling configuration without special tools.
- Recessed Mount Style — Panel sits within the rack footprint, preserving front clearance in constrained equipment rooms.
- Nickel-Chrome Plated Wire Grille — Protects fans from debris and contact; backed with steel wire mesh screen for added protection.
- 16-Gauge CRS Panel — Heavy cold-rolled steel construction for durability in permanent rack installations.
- 6-Foot Line Cord Included — Ready to connect to any standard rack power strip or AC outlet without additional hardware.
- EIA Standard Rail Compatibility — Mounts to all EIA-standard 19-inch rack mounting rails.
- 3RU Panel Space — Occupies three rack units for efficient use of rack real estate relative to airflow output.
Technical Specifications
| Specification | Value |
|---|---|
| Rack Units | 3RU |
| Number of Fans | 2 |
| Airflow per Fan | 115 CFM |
| Total Airflow | 230 CFM |
| Current Draw | 30 Watts |
| Height | 5-1/4" (13.335 cm) |
| Width | 19" (48.26 cm) |
| Depth | 2-1/8" (5.3975 cm) |
| Mount Type | Recessed |
| Power Cord Length | 6 ft |
| Shipping Weight | 8.0 lbs (3.63 kg) |
