Atlas Sound DD87W-HC – 8" In-Ceiling Coaxial Speaker 8W 70V Hydrophobic

Product Overview

The Atlas Sound DD87W-HC is an 8-inch in-ceiling coaxial speaker package with an 8-watt 70.7V transformer, CRS baffle, and AtlasIED proprietary Hyfidrophobic treatment coating for moisture resistance in high-humidity environments. This in-ceiling distributed audio speaker is a direct performance equivalent to the AtlasIED C803A, making it the specified replacement or expansion unit for systems built on that legacy model. With a 96dB average sensitivity, 105-degree dispersion, and 50Hz–15kHz frequency response, the DD87W-HC suits commercial background music, voice paging, and installed distributed audio in restaurants, natatoriums, locker rooms, and healthcare spaces.

Product Description

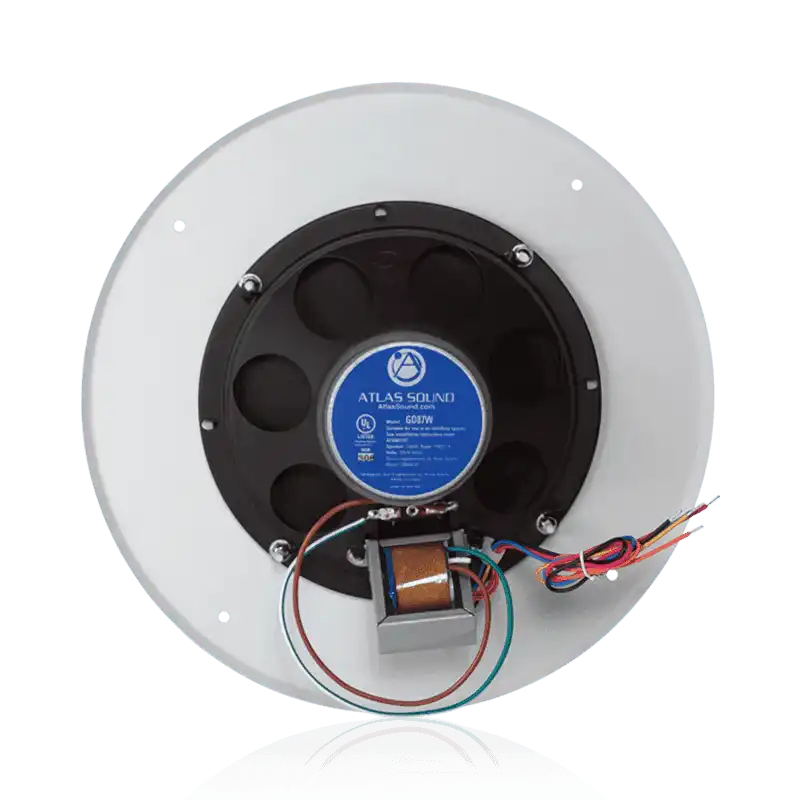

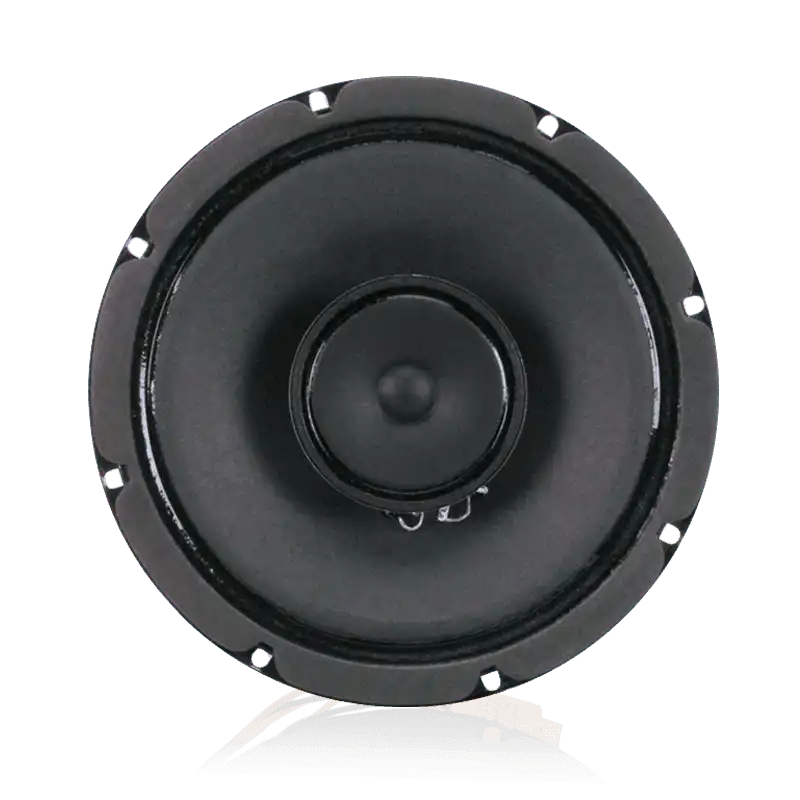

The DD87W-HC coaxial design combines a full-size 8-inch (203mm) low-frequency cone with a 3-inch (76mm) high-frequency tweeter on a common axis, connected through a built-in crossover network. This coaxial arrangement produces broad, uniform dispersion — 105 degrees at the 2kHz octave band — that distributes audio evenly across a coverage area without requiring precise aiming adjustments during installation. The 8-inch woofer uses a 10-ounce (260g) ceramic magnet and the tweeter uses a 2.35-ounce (67g) ceramic magnet. Average sensitivity is 96dB at 1W/1m. The included transformer is an 8-watt 70.7V unit with a maximum insertion loss of 0.6dB, constructed with audio-grade laminations and a frequency response of +1dB from 50Hz to 15kHz. Selectable primary taps at 1, 2, 4, and 8 watts enable zone-level output control. The factory-installed 62-8 style CRS baffle uses concealed mounting studs and includes screw mount hardware; the white powder coat epoxy finish is complemented by the Hyfidrophobic treatment, which resists moisture penetration and allows the baffle to maintain its appearance and integrity in environments with periodic condensation or splash exposure. Safety listed to UL 1480 and UL 2043.

Key Features

• Coaxial Driver Design — 8" LF and 3" HF drivers on a common axis with built-in crossover produce 105° uniform dispersion at the 2kHz octave band without aiming adjustments.
• 8W 70.7V Transformer — High-efficiency transformer with 0.6dB maximum insertion loss and audio-grade laminations for minimal signal degradation on distributed 70V lines.
• Selectable Power Taps: 1, 2, 4, 8W — Four tap positions allow per-zone SPL control on multi-zone 70V distributed audio systems.
• Hyfidrophobic Treatment Coating — AtlasIED proprietary moisture-resistant coating on the baffle enables deployment in high-humidity environments including natatoriums, locker rooms, and kitchens.
• 96dB Average Sensitivity — High output efficiency reduces amplifier power requirements for equivalent SPL compared to lower-sensitivity drivers.
• 50Hz – 15kHz Frequency Response — Full-range response covering voice and music content with accurate reproduction from the low-mid through high-frequency range.
• C803A Performance Equivalent — Identical sonic specifications to the legacy AtlasIED C803A, enabling expansion or replacement without audible performance differences.
• UL 1480 & UL 2043 Safety Listed — Dual listing confirms suitability for audio distribution wiring and plenum air-handling space installation.

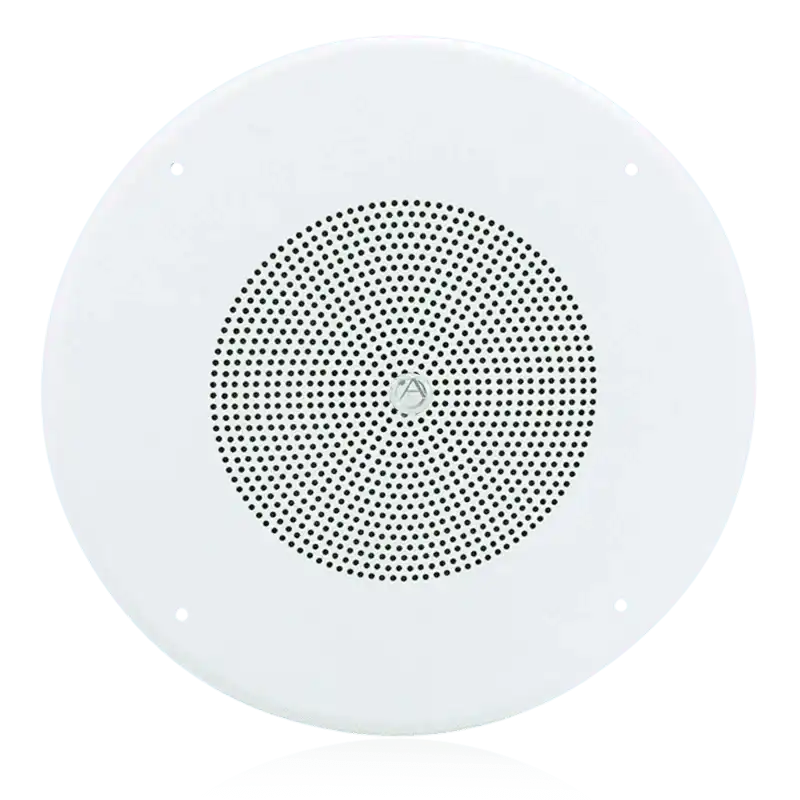

• Factory-Installed CRS Baffle — Concealed mounting studs and white powder coat finish simplify installation and provide a clean finished appearance.
