Atlas Sound CR222 2' x 2' Ceiling-Mount Rack with 2RU, Standard-Width, AmbiTILT™ Shelf and Integrated AC Power Pack with Auto Sensing "On-Off" - Without Projector Pole Adapter

Product Overview

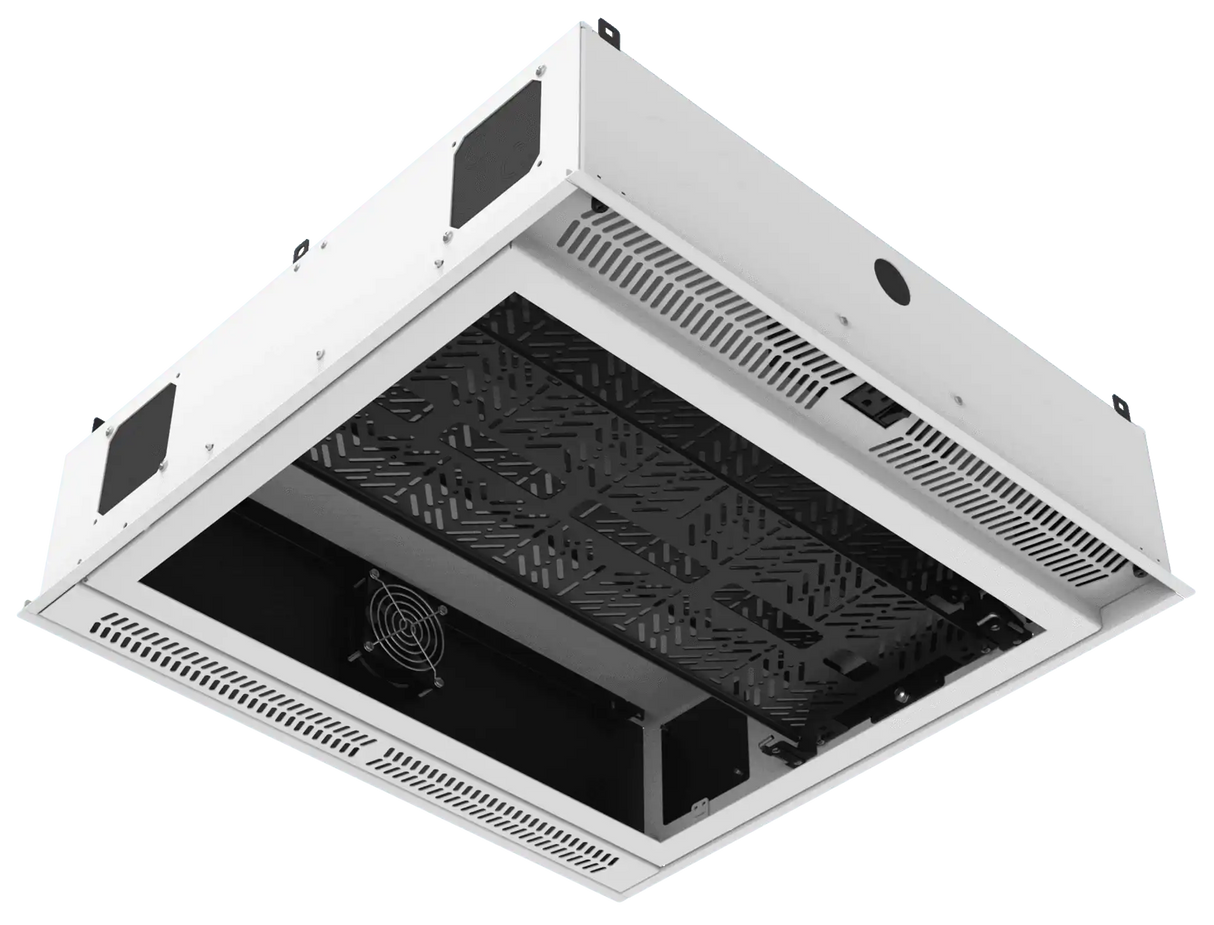

The AtlasIED CR222 is a 2' x 2' ceiling mount equipment rack that places AV electronics out of sight in the ceiling plenum, dropping into a standard reflected ceiling tile grid. The sealed, UL plenum-rated cabinet provides 2RU of 19-inch standard-width capacity with the AmbiTILT shelf system for tool-friendly loading and service. An integrated UL-listed AC power pack with PowerAWAKE auto-sensing on-off powers up to five devices, including a down-facing outlet for a projector. For classroom AV installation and conference room projector systems, the CR222 consolidates equipment mounting, power, and cooling in one above-ceiling enclosure.

Product Description

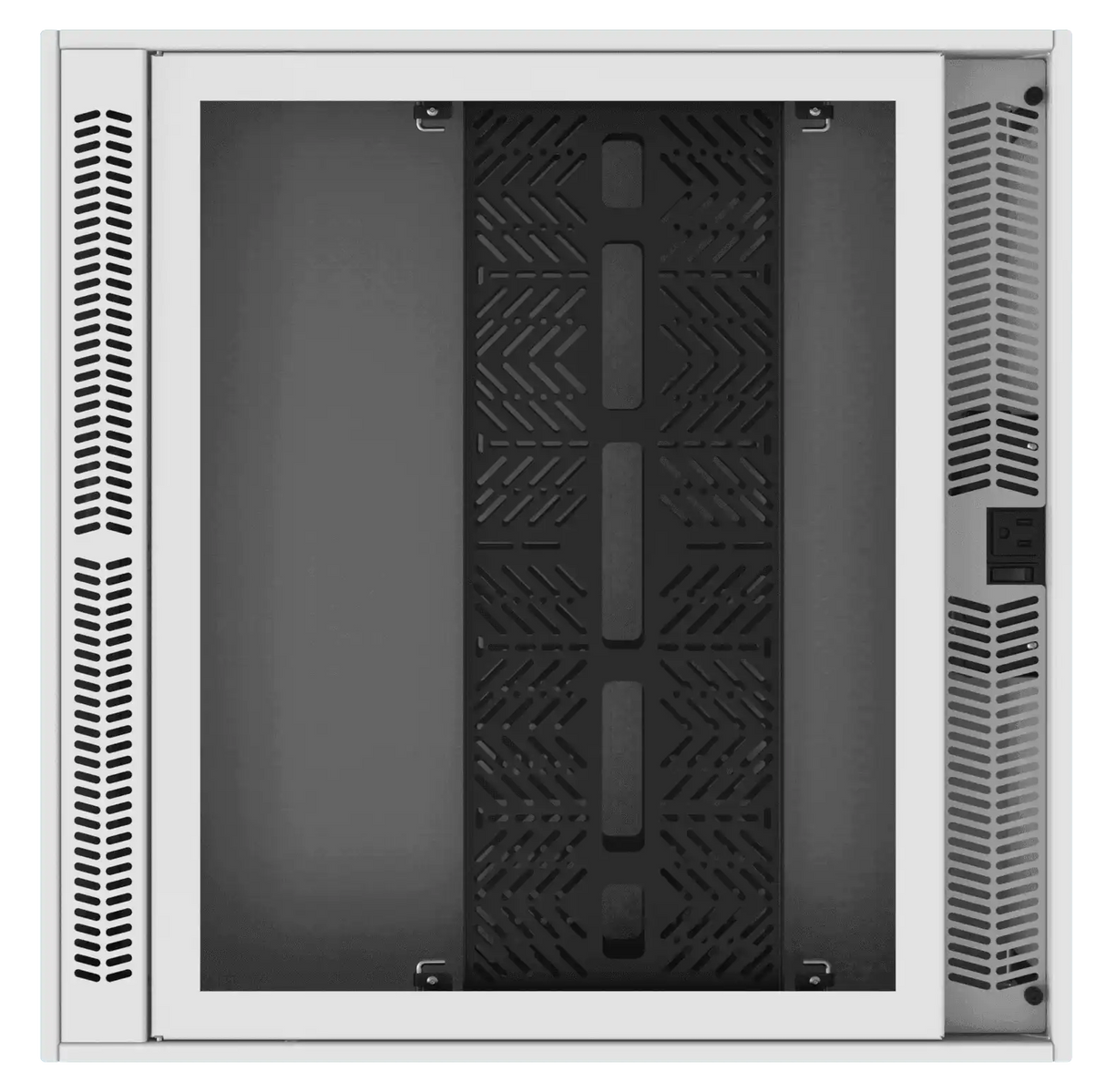

The CR222 solves a recurring problem in commercial AV integration: where to put amplifiers, switchers, and control processors in rooms with no credenza, closet, or wall space. The cabinet mounts above a drop ceiling, and its open-frame access door accepts a ceiling tile cut-out held by retainer tabs, so the rack disappears into the ceiling grid. Two retention thumb screws open the door, and attached safety cables protect against injury during service.

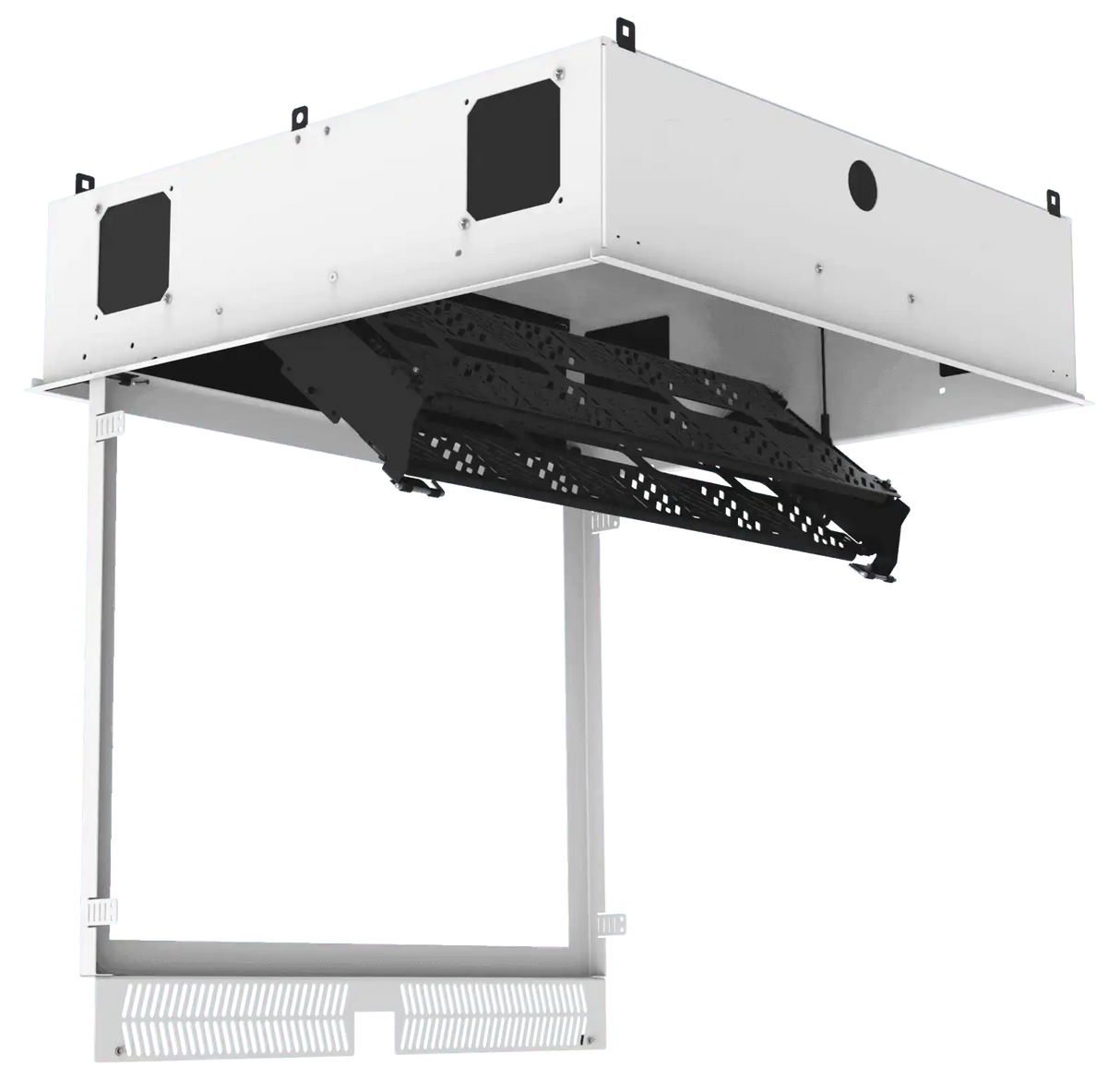

The AmbiTILT shelf gives integrators three service methods: release the front cane bolts to tilt the shelf down toward the front, release the rear cane bolts to tilt the rear down for connector access, or remove the shelf entirely via quick-release locking pins. Universal mounting holes bolt or tie down equipment directly, and the optional CR222RR rack rail kit adds standard 2RU rack mounting. The PowerAWAKE power pack is the standout for plenum rack installation: when a projector plugged into the always-on exposed outlet draws current, the sensing circuit automatically switches on the remaining outlets and the whisper-quiet 24 dB SPL fan assembly, so the entire rack powers on and off from the projector remote — extending equipment life and reducing energy use. Built from 18AWG powder-coated metal at AtlasIED's Texas manufacturing facility, the cabinet includes four removable side cover plates with conduit knockouts that can be swapped for custom connector plates (Ethernet, HDMI, XLR, and more). Mount via the optional CR222TRK threaded rod kit, the CR2CK cable suspension kit, or third-party hardware using the extruded mounting ears. Pair it with sources and amplifiers from the AtlasIED collection at Creation Networks.

Key Features

• 2' x 2' Ceiling Grid Form Factor — Fits a standard reflected ceiling tile grid and conceals behind a tile insert for a clean, discrete installation.
• AmbiTILT Shelf System — Front-tilt, rear-tilt, or full shelf removal via quick-release cane bolts speeds equipment loading and service.
• PowerAWAKE Auto Sensing On-Off — Detects projector current draw on the exposed outlet and automatically powers the remaining outlets and fan from the projector remote.

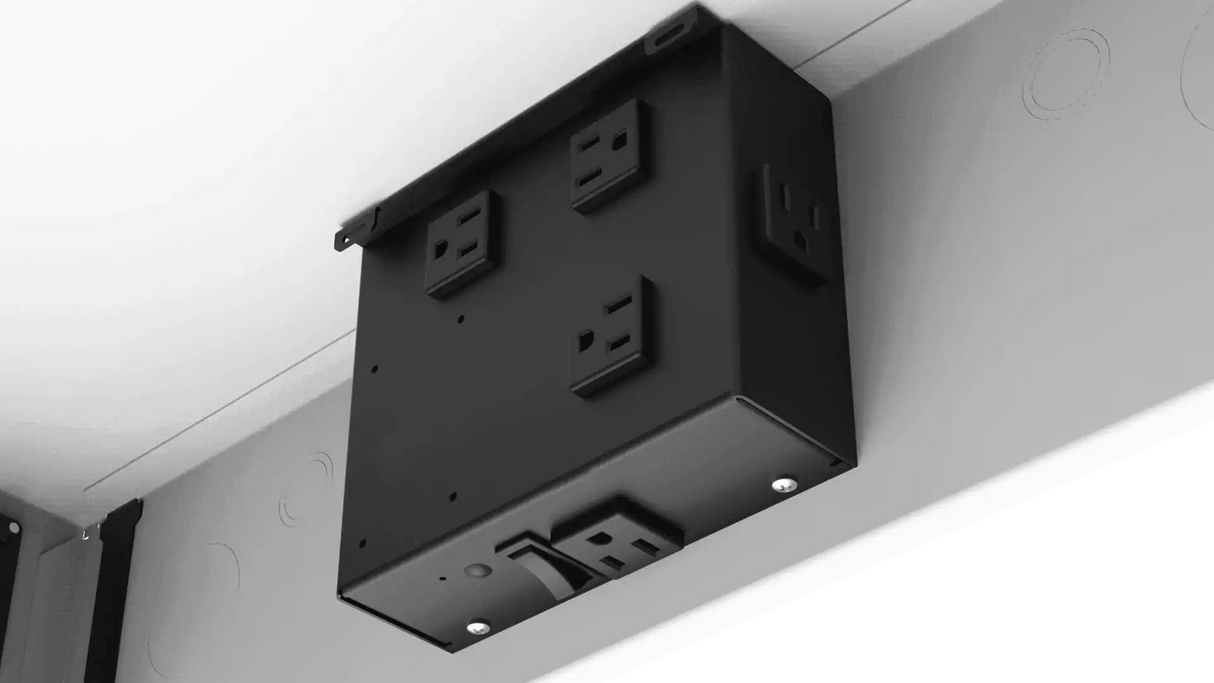

• Integrated UL-Listed Power Pack — Five 15 A Edison outlets: four inside the cabinet and one down-facing outlet exposed for projector power.
• UL Plenum Rated — Sealed cabinet is rated for installation in ceiling plenum air spaces.
• Whisper-Quiet Cooling — Integrated fan assembly operates at 24 dB SPL (A-weighted) to keep equipment cool without audible noise below.
• Customizable Side Panels — Four removable 4-inch cover plates with 1/2" and 3/4" conduit knockouts accept installer-provided custom connector plates.
• Three Mounting Methods — Optional CR222TRK threaded rod kit, CR2CK aircraft cable kit, or third-party hardware via extruded mounting ears.
• Made in the USA — Manufactured from 18AWG powder-coated metal at AtlasIED's Texas facility.

Typical Applications

• Conference rooms and boardrooms with ceiling-mounted projectors
• Training rooms and multi-purpose rooms needing concealed AV equipment
• Huddle rooms with no rack closet or credenza space
• Government spaces and commercial meeting spaces requiring plenum-rated enclosures
• House of worship classrooms and auditorium support spaces

Technical Specifications

Frequently Asked Questions

How does PowerAWAKE auto on-off work?

The exposed down-facing outlet stays always-on with a current-sensing circuit. When the user powers the projector with its remote, PowerAWAKE detects the draw and switches on the three remaining outlets and the fan. Powering the projector off shuts the rack down the same way.

Can I mount standard rack-mount equipment in it?

Yes. The shelf has universal mounting holes for bolting or tying down devices, and the optional CR222RR rack rail kit adds standard 19-inch 2RU rack rails for rack-mount gear.

Is the CR222 plenum rated?

Yes. The sealed cabinet is UL plenum rated for installation above drop ceilings in plenum air-handling spaces, a code requirement in many commercial buildings.

How is the rack suspended above the ceiling?

Three methods are supported: the optional CR222TRK threaded rod rail kit (preferred for stability), the CR2CK aircraft cable suspension kit with quick-adjust cable locks, or third-party mounting hardware attached to the cabinet's extruded mounting ears.

How do I service equipment after installation?

The AmbiTILT shelf tilts down from the front for general access, tilts down at the rear for connector access, or removes completely via quick-release locking pins — all without removing the cabinet from the ceiling.

Does this model include a projector pole adapter?

No. This CR222 configuration ships without the projector pole adapter. Contact Creation Networks if your design requires a pole-adapter variant or other CR Series accessories.

What warranty applies?

AtlasIED covers the CR222 with a 60-month warranty from date of purchase, and Creation Networks supports your project before and after the sale.
