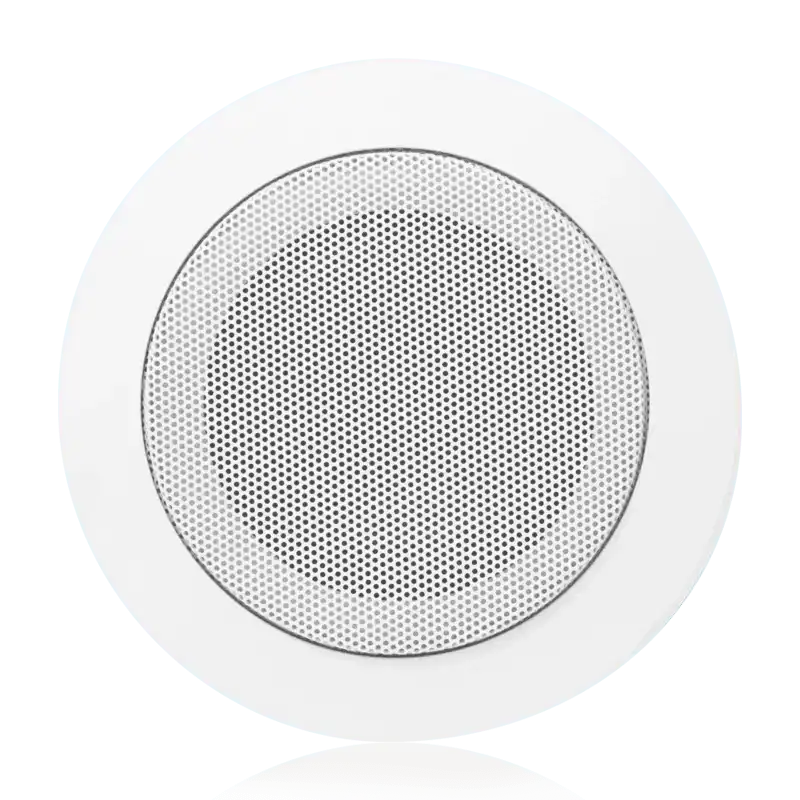

Atlas Sound BT720-4-T47 – 4" 70V In-Ceiling Speaker with Baffle Assembly
Atlas Sound BT720-4-T47 – 4" 70V In-Ceiling Speaker with Baffle Assembly is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound BT720-4-T47 – 4" 70V In-Ceiling Speaker with Baffl...
Product Overview
The Atlas Sound BT720-4-T47 is a factory-assembled 4" in-ceiling speaker package for 70V distributed audio systems, combining the FC104 high-compliance loudspeaker with a 4-watt 70.7V transformer and T720-4 torsion spring baffle. This package is designed for commercial background music and paging installations where consistent, full-range audio coverage is required with minimal installation labor. The BT720-4-T47 is compliant with BAA and TAA requirements and carries cUL certification, making it appropriate for government, education, and corporate facility deployments.
Product Description
The BT720-4-T47 uses the AtlasIED FC104 4" high-compliance loudspeaker, a proven driver for voice and music reproduction in distributed constant-voltage systems. A 10 oz. ceramic magnet and damped high-compliance cone deliver solid low-frequency response with smooth, extended high-frequency reproduction. The factory-mounted 70.7V transformer provides power taps at 0.5, 1, 2, and 4 watts, allowing system designers to optimize load distribution across long cable runs. A 135° dispersion angle at the 2kHz octave band ensures wide-area coverage, enabling fewer speakers per zone without sacrificing intelligibility. The torsion spring grille design eliminates screw-mount installation steps, reducing labor time on large-scale projects. All components ship pre-assembled and are ready to install directly into standard ceiling cutouts. The BT720-4-T47 is suited for hotels, retail spaces, healthcare facilities, corporate offices, and educational buildings where a clean ceiling appearance and reliable audio performance are both required.
Key Features
- Factory-Assembled Package — Speaker, transformer, and baffle arrive pre-assembled, reducing installation time on commercial projects.
- 70.7V Transformer with Multiple Power Taps — 0.5, 1, 2, and 4-watt taps allow precise load management in distributed audio systems.
- 135° Sound Dispersion — Wide-angle coverage at 2kHz reduces speaker count needed per zone.
- Torsion Spring Grille (T-Mount) — Tool-free grille installation accelerates ceiling speaker deployments.
- FC104 High-Compliance Loudspeaker — 10 oz. ceramic magnet delivers extended low-frequency response and smooth overall reproduction.
- BAA / TAA Compliant — Meets Buy America Act and Trade Agreements Act requirements for government and institutional procurement.
- cUL Listed — Certified for use in commercial installations requiring safety listing.
Technical Specifications
| Specification | Value |
|---|---|
| Speaker Type | 4" (102mm) High Compliance Loudspeaker Transformer / Baffle Assembly |
| Sensitivity | 94 dB (1W/1M) |
| Frequency Response | 150Hz – 17kHz |
| Power Taps | 0.5, 1, 2, and 4 Watts |
| Dispersion | 135° / −6 dB, 2kHz Octave Band |
| Depth | 3.64" (63mm) |
| Diameter | 4" (10.16 cm) |
| Transformer Voltage | 70.7V |
| Certifications | cUL Listed, BAA Compliant, TAA Compliant |
