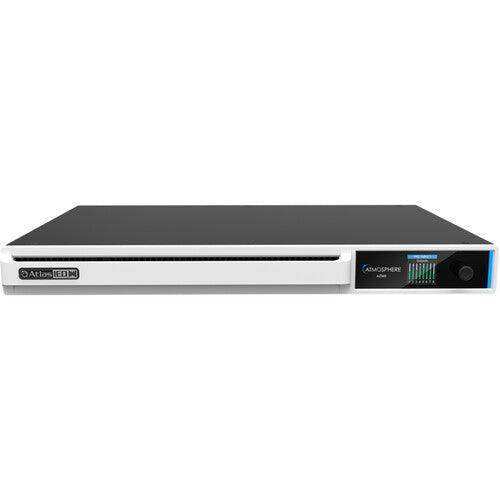

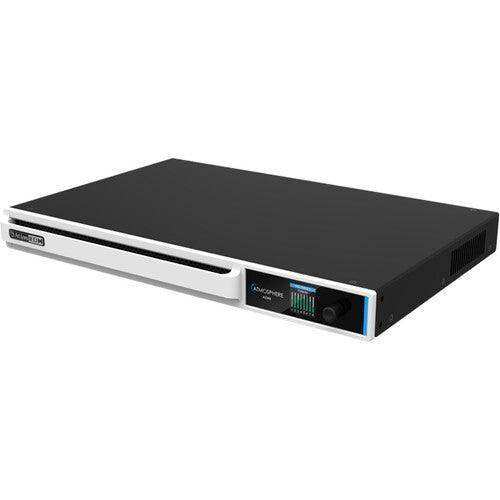

Atlas Sound AZM8 8-Zone Audio Processor

Availability: Call for Availability
Availability: Direct Ship
Atlas Sound SKU: AZM8
No reviews
Price:
$1,844.99 $1,940.99

Description

The Atmosphere AZM8 is an 8-zone audio processor and the heart of an Atmosphere audio control system. Powerful DSP combined with innovative algorithms offer custom solutions for a wide variety of spaces. A built-in message player, virtual wall controllers, learning ambient noise sensing, Tilter Filter, auto-gain, GPIO, bell scheduler, room combine, and many more features, make the AZM a processing powerhouse.

The AZM8 is compatible with all six of the Atmosphere accessories for control, remote audio input, and ambient noise sensing. Up to 16 of these plug-and-play Accessories can be connected across 4 accessory ports on the AZM8, with each port designed to work reliably up to 1000ft.

Programming is simple through a modern on-board web interface, optimized around common use-cases. Built around Progressive Web App technology, the control interface is device agnostic, responsive, and meticulously designed for an ideal user experience without sacrificing design freedom. In addition to Ethernet, built-in Wi-Fi allows for tablets and other controlling devices to connect directly to the AZM8.

  • Control Unit for AZM Audio Systems
  • Powerful DSP I/O Processing
  • Built-In Messenger/Virtual Controller
  • Bell Scheduler
  • Web Control Interface via URL/QR Code
  • RCA and Euroblock I/O
  • RJ45 Ports for up to 32 Controllers
  • High-Priority GPI Alarm System Input
  • Built-In Wi-Fi Support
  • Auto-Noise Compensation
General
Compatibility Atlas Sound Atmosphere Ecosystem
RTI Control Module
Crestron Control Module
Extron Control Module
AMX Control Module
THD+N <0.01 % with 0 dB Gain at 1 kHz
Frequency Response 20 Hz to 20 kHz (±5 dB)
Dynamic Range >108 dB (Unweighted, 20 Hz to 20 kHz)
>118 dB (A-Weighted)
Crosstalk >-78 dB at 1 kHz
Latency Euroblock In/RCA In/Euroblock Out: 4.9 ms
Accessory In A or C to Euroblock Out: 5.9 ms
Accessory In B or D to Euroblock Out: 6.7 ms
Max Gain 60 dB
Input Processing EQ: 24 dB/Oct HP, PEQ, Low / High Shelf, Notch, LP / HP (BW 6, 12, or 24 dB/Oct)
Dynamics: Gate, De-Esser, Compressor, Auto-Gain
Other: Gain, Mixer, Priority Router
Output Processing EQ: PEQ, Tilt Filter, Low / High Shelf, Notch, LP / HP (BW 6, 12, 24, or 48 dB/Oct), Speaker Tuning EQ Presets
Dynamics: Ambient Noise Compression, Limiter
Other: Delay (500 ms), Gain
Display
Panel Type TFT LCD
Display Size 1.45"
Resolution 128 x 128
Touchscreen No

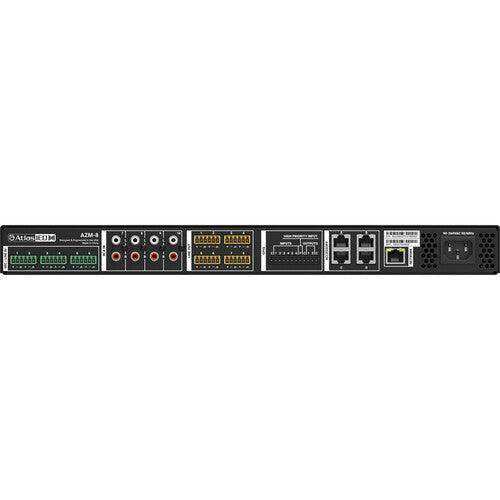

Inputs / Outputs
Audio I/O 6 x Block Line/Mic Input (Balanced)
4 x 2RCA Coaxial Line Input (Mono-Summed)
8 x Block Line Output (Balanced)
6 x Block Aux Input (GPIO)
1 x Block Aux Input (High-Priority)
2 x Block Aux Output (GPIO)
4 x RJ45 Input (Accessory Ports)
1 x RJ45 Input/Output (Network Port)
Wireless
Wi-Fi 802.11b/g; Single-Band (2.4 GHz)
Mobile App Compatible No
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility
Web Access Control QR Code or Distributed URL Web-Based Control
Power
Power Source AC Input (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 75 W (Maximum)
Trigger Voltage GPIO/High-Priority: 1.3 VDC
Phantom Power +48 VDC at 10 mA
Environmental
Certifications ANSI, CAN, FCC Part 15 (Class B)
Operating Temperature 32 to 72°F / 0 to 40°C
Physical
Mounting Front: 4 x Standard Rackmount Hole (With Rack Ears)
Color White
Material of Construction Metal, Plastic
Dimensions 19 x 11.7 x 1.75" / 48.3 x 29.7 x 4.45 cm (With Rack Ears, 1 RU)
Weight 8.33 lb / 3.78 kg
