Atlas Sound AWR3W-HR – 3RU Half Rack Tilt-Out Wall Cabinet

Product Overview

The AtlasIED AWR3W-HR is a 3RU tilt-out wall cabinet designed specifically to house half-rack-width components in commercial AV installations. Built for in-wall or surface-mount deployment within standard 16-inch stud wall construction, this half-rack wall cabinet simplifies installation by eliminating the need for drywall cutting and repair. With an 18-gauge CRS welded enclosure, locking tilt-out door, and PoE-compatible design context, the AWR3W-HR is an ideal solution for secure equipment mounting in conference rooms, training rooms, and commercial multi-purpose spaces.

Product Description

The Atlas Sound AWR3W-HR half rack wall cabinet is engineered for AV integrators who need a compact, secure enclosure for half-rack-width amplifiers, DSP processors, or control equipment. The in-wall design aligns with standard 16-inch stud construction, allowing the cabinet to recess into the wall while presenting a clean face plate flush with the finished surface. The 18-gauge cold-rolled steel welded back box is equipped with eight concentric 1/2-inch and 3/4-inch conduit knockouts, providing flexible cable entry points for structured cabling and conduit systems.

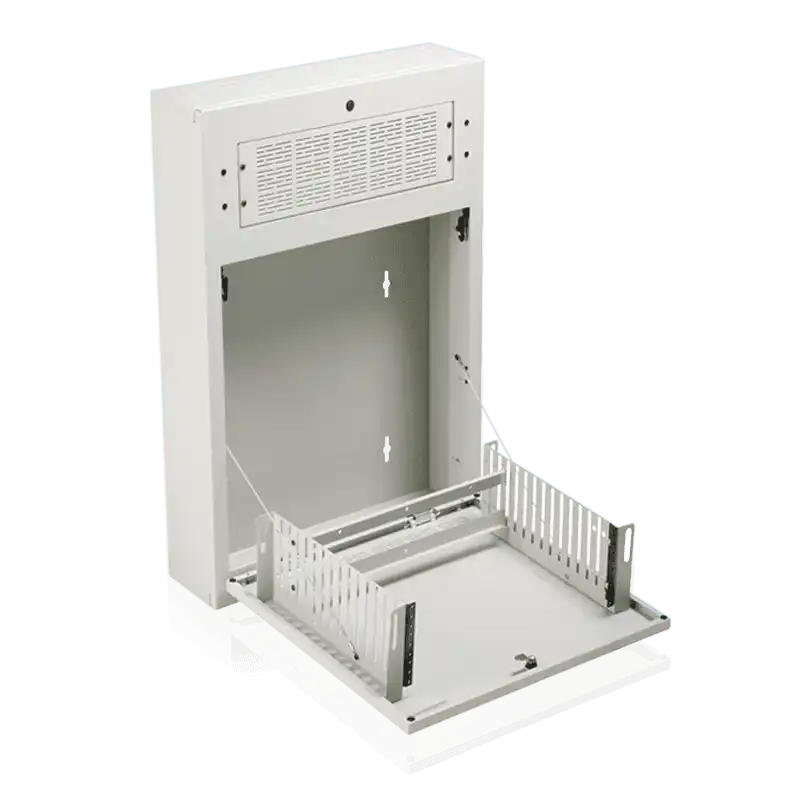

The tilt-out door operates in two positions: a partial tilt-out angle for normal equipment operation, and a full 90-degree open position released by side catches for equipment installation and maintenance access. Two steel safety catch cables suspend and hold the door at 90 degrees, keeping both hands free during rack servicing. The 18-gauge CRS locking door closes flush against the rack face plate and is attached internally with two pin-style hinges to prevent tampering. The 12-gauge CRS rack mounting rails accept standard 10-32 hardware. The AWR3W-HR carries a 5-year limited warranty and is TAA compliant, making it suitable for government and federally funded installations.

Key Features

• In-Wall or Surface Mount — Designed to install within standard 16-inch stud wall construction for a recessed, low-profile installation, or can be surface mounted where wall recess is not possible.
• Half Rack Width Configuration — Accepts half-rack-width (9.5-inch) components, maximizing utility in spaces where full-width rack enclosures are impractical.
• 18-Gauge CRS Welded Construction — Heavy-gauge cold-rolled steel welded body provides structural rigidity and tamper resistance suitable for commercial and institutional environments.

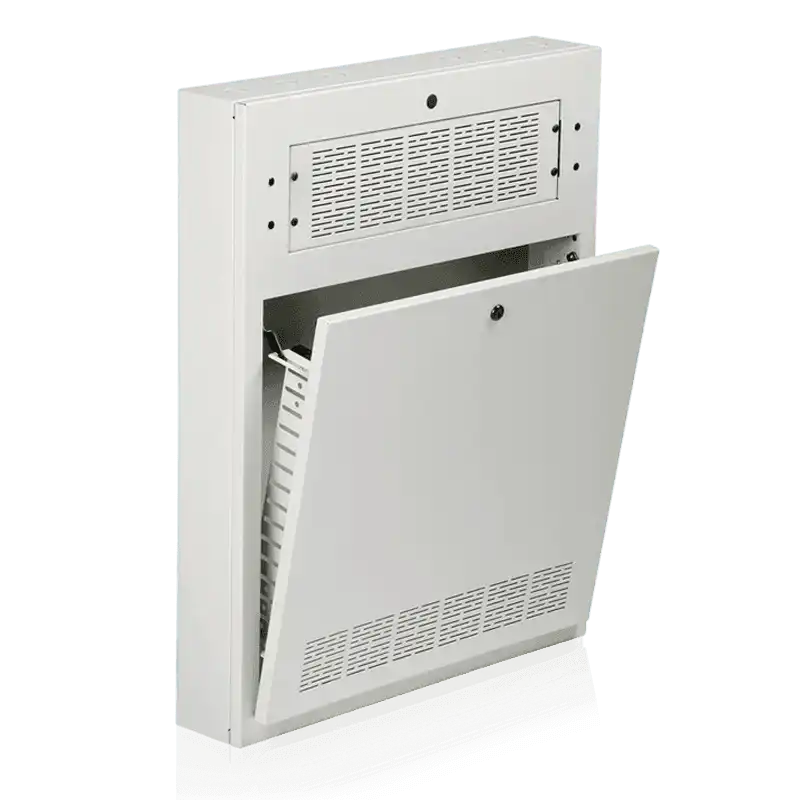

• Two-Position Tilt-Out Locking Door — Door tilts for equipment operation access and opens fully to 90 degrees for installation and maintenance, secured by two steel safety catch cables.

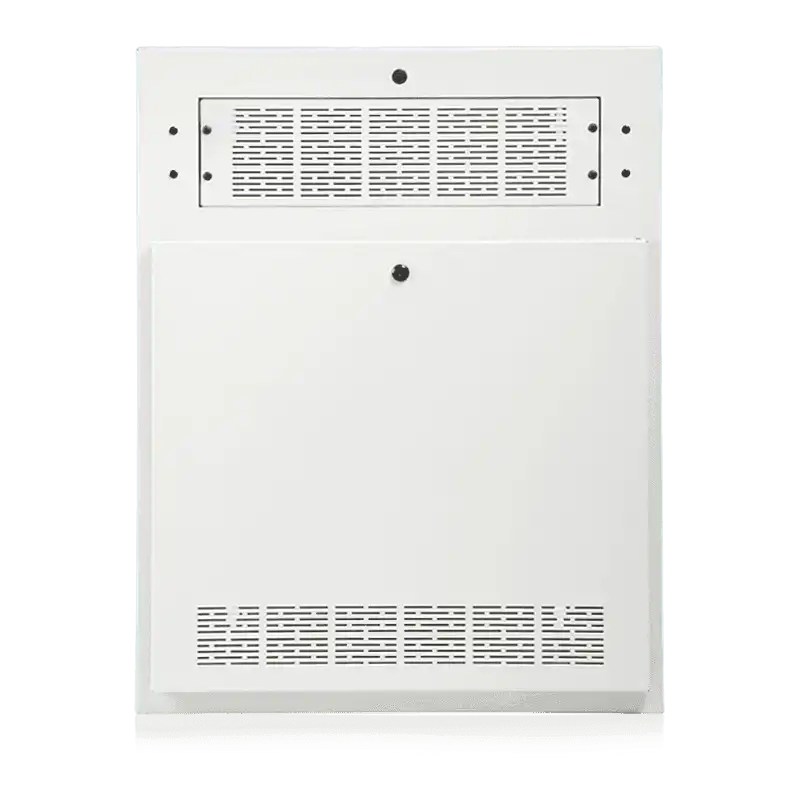

• Flush-Close Door Design — Door closes flush against the rack face plate with internal pin hinges to prevent unauthorized access or tampering.
• Eight Conduit Knockouts — Back box includes eight concentric 1/2-inch and 3/4-inch conduit knockouts for flexible structured cabling and conduit routing.
• 12-Gauge CRS Rack Rails — Mounting rails accept standard 10-32 hardware and accommodate most half-rack-width commercial AV components.
• TAA Compliant — Meets Trade Agreements Act requirements for government and federally procured AV installations.
• 5-Year Limited Warranty — Backed by AtlasIED's 60-month warranty from date of purchase.

Typical Applications

• Conference room AV control equipment
• Huddle room half-rack enclosure
• Training room equipment mounting
• Government and institutional AV spaces
• Commercial meeting room infrastructure
• Multi-purpose room rack installation

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the AWR3W-HR and the AWR3W?

A: The AWR3W-HR is designed for half-rack-width (9.5-inch) components and is built specifically for in-wall installation within 16-inch stud construction. The AWR3W accepts standard 19-inch full-width rack equipment and has a larger overall footprint.

Q: Can the AWR3W-HR be surface mounted instead of recessed?

A: Yes. While it is designed for in-wall installation within 16-inch stud walls, it can also be surface mounted where wall recess is not feasible.

Q: What size conduit can be run into this cabinet?

A: The back box includes eight concentric knockouts accepting 1/2-inch and 3/4-inch conduit, accommodating standard commercial structured cabling conduit sizes.

Q: Is the AWR3W-HR TAA compliant for government projects?

A: Yes. The AWR3W-HR is TAA compliant and suitable for government agency, GSA schedule, and federally funded AV installations.

Q: What rack hardware does the AWR3W-HR accept?

A: The 12-gauge CRS mounting rails accept standard 10-32 rack hardware, compatible with most commercial AV half-rack-width equipment.

Q: What is the warranty on the AWR3W-HR?

A: AtlasIED covers the AWR3W-HR with a 60-month (5-year) limited warranty from the date of purchase.
