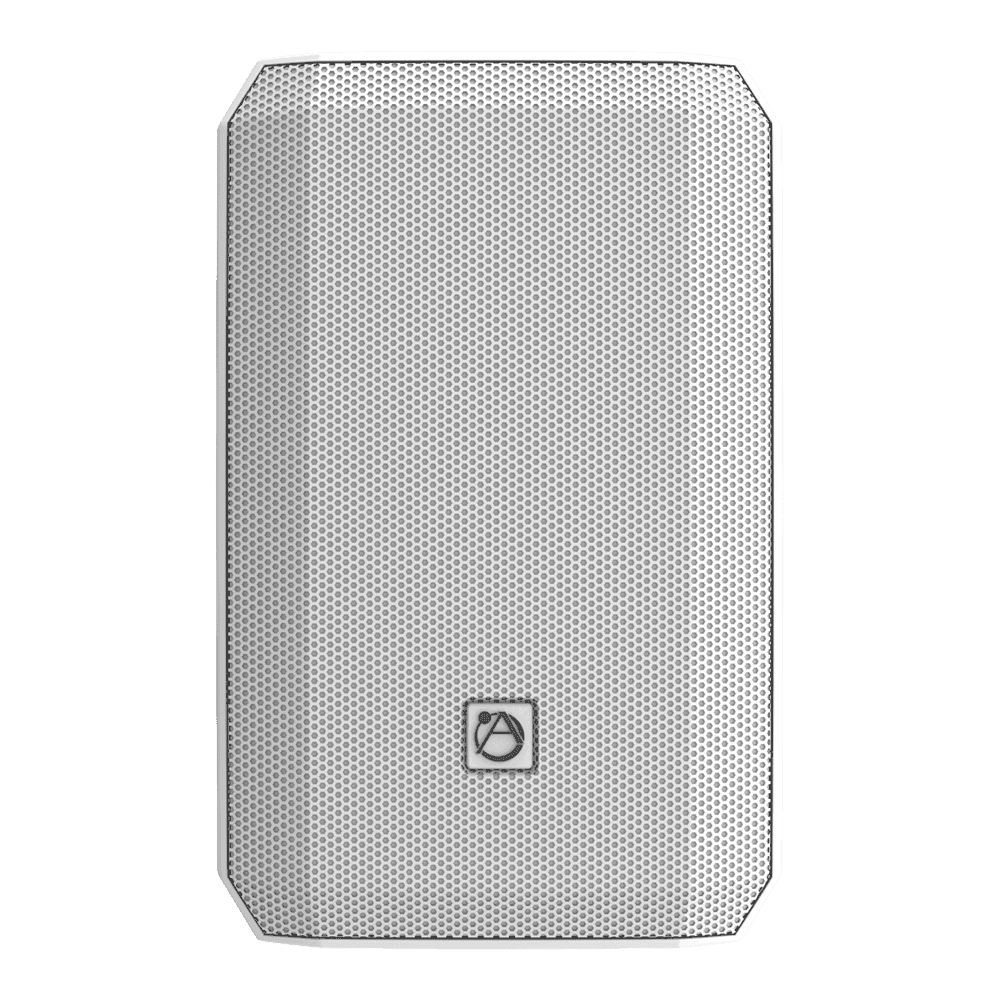

Atlas Sound AS-5T-W – 5.25" IP55 Surface Mount Speaker White Pair

Product Overview

The Atlas Sound AS-5T-W is a 5.25" 2-way all-weather surface mount speaker sold as a pair in white finish, designed for commercial distributed audio installations indoors and outdoors. With an IP55 ingress protection rating, the AS-5T-W surface mount commercial speaker handles rain, dust, and high-humidity environments that would compromise standard indoor speakers. Built-in 70V/100V transformer compatibility via a high-efficiency 30W transformer makes it straightforward to integrate into existing commercial distributed audio systems without external step-down transformers.

Product Description

The AS-5T’s acoustic design centers on a 5.25” woofer paired with a dome tweeter, with model-specific wave guides engineered through extensive listening and laboratory testing to produce even coverage across the listening area. The result is a speaker that reproduces both speech and music with consistent clarity from the full coverage zone. The 30W built-in transformer has been optimized for efficiency and frequency response flatness in the critical speech and music frequency regions, addressing a common weakness in competitive 70V/100V surface mount speakers that exhibit significant insertion loss or frequency response coloration at transformer taps. The 8-ohm impedance also allows direct connection to low-impedance amplifiers when the transformer is bypassed. Mounting options are comprehensive: the included color-matched C-bracket provides preset angle adjustment for quick, consistent positioning, while VESA-compliant mounting points allow installers to use third-party mounts already specified for a project. An optional universal mount in powder-coated aluminum offers additional vertical and horizontal angle adjustment. The ABS enclosure includes a UV inhibitor to resist yellowing and brittleness from solar exposure, and the powder-coated aluminum grille provides long-term corrosion resistance. Whether the application is a covered outdoor patio, a warehouse, a pool area, or a retail space with high wash-down requirements, the AS-5T-W is built to perform reliably over time.

Key Features

• IP55 Weather Rating — Rated against dust ingress and water jets from any direction, suitable for covered outdoor and high-humidity commercial environments.
• 5.25" Woofer with Dome Tweeter — 2-way configuration with purpose-designed wave guides provides even coverage for both voice and music reproduction.
• High-Efficiency 30W 70V/100V Transformer — Optimized for response flatness in speech and music frequency regions; outperforms standard competing transformer designs at multiple tap settings.
• 8-Ohm Nominal Impedance — Allows direct connection to low-impedance amplifiers when operating without the constant-voltage transformer.
• Color-Matched C-Bracket Included — Preset angle adjustment positions provide consistent installation without custom fabrication.
• VESA Mount Compatible — Standard VESA mounting points allow use of existing or preferred third-party mounting hardware.
• UV-Resistant ABS Enclosure — Enclosure material includes UV inhibitor to maintain appearance and structural integrity in high-UV outdoor locations.
• Powder-Coated Aluminum Grille — Corrosion-resistant grille finish maintains appearance in demanding environments.
• Sold as a Pair — Price covers two speakers; includes two C-brackets and all required mounting hardware.

Typical Applications

• Commercial meeting space
• Multi-purpose room
• House of worship
• Boardroom
• Training room

Technical Specifications

Frequently Asked Questions

Q: Is the AS-5T-W rated for fully outdoor use without a cover?

A: The IP55 rating means the speaker is protected against dust and water jets from any direction. It is suitable for covered outdoor areas and high-humidity environments. For direct prolonged rain exposure or full submersion, a higher IP-rated product would be required.

Q: Can the AS-5T-W be used on a 70V or 100V distributed audio system?

A: Yes. The built-in 30W transformer supports 70V and 100V constant-voltage distributed audio systems. Select the appropriate tap setting for your system’s total load calculation.

Q: What mounting options are included with purchase?

A: Each speaker includes a color-matched C-bracket with hardware covers. The bracket provides preset angle adjustments. Optional universal mounts and VESA-compatible hardware are also supported.

Q: Does this listing include one speaker or two?

A: This listing is for a pair (two speakers) in white finish, each including a C-bracket.

Q: Is there a black version available?

A: Yes. The AS-5T-B is the same speaker in black finish and is available separately.
