Atlas Sound AD-12BE – Desktop Male Mic Flange 5/8"-27 Ebony Finish

Product Overview

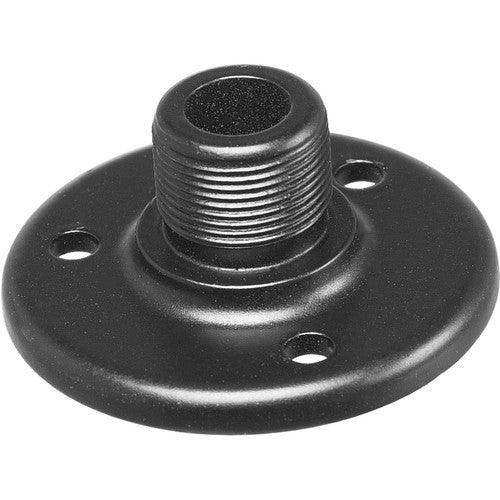

The Atlas Sound AD-12BE is a surface mount male microphone flange in ebony finish, with a 5/8"-27 male thread for attaching microphone stand tubes, goosenecks, and holders to fixed surfaces. It is the ebony equivalent of the chrome AD-12B, providing the same mounting function in a black finish that coordinates with dark-finish podiums, lecterns, and conference tables. Base holes are positioned on 1-1/4" centers for straightforward two-point surface mounting. TAA compliance makes it suitable for government, education, and institutional AV projects.

Product Description

The AD-12BE provides a permanent male microphone flange mounting point on any flat surface, accepting goosenecks, extension tubes, and microphone holders with 5/8"-27 female threads. This is the male counterpart to the AD-11BE female flange; selecting between them depends on the threading of the mating component in the stand assembly. The ebony black finish is consistent with Atlas Sound's "E" suffix designation across the AD series, and it pairs directly with ebony-finish goosenecks and tube extensions for a coordinated appearance. The 1-3/4" base diameter keeps the mounting footprint compact, while the 1-1/4" hole center spacing provides a secure, two-point attachment pattern on wood, MDF, and composite podium surfaces. Net weight of 1.3 oz adds negligible mass to the installation. Quality thread machining ensures precise 5/8"-27 engagement, reducing risk of cross-threading in high-turnover rental and touring applications. TAA compliance supports procurement under the Trade Agreements Act in government and education markets. The AD-12BE is directly compatible with Atlas Sound AD-8B tube extensions, GN-series goosenecks, and all standard 5/8"-27 microphone hardware.

Key Features

• 5/8"-27 Male Thread — North American standard thread accepts all female-threaded mic stand components and goosenecks.
• Ebony Black Finish — Coordinates with dark-finish podiums and ebony-series Atlas Sound microphone accessories.
• Base Holes on 1-1/4" Centers — Two-point mounting pattern for secure surface attachment on podiums and lecterns.
• 1-3/4" Base Diameter — Compact footprint with minimal surface disruption.
• Lightweight at 1.3 oz — Minimal added mass to podium or lectern surfaces.
• TAA Compliant — Eligible for government, education, and federal procurement.
• Touring-Grade Durability — Designed for long-lasting performance in touring PA and rental environments.

Technical Specifications
