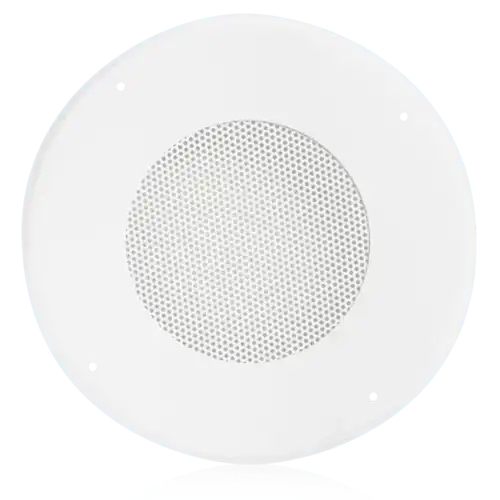

Atlas Sound 61-8W – Decorative Steel Speaker Baffle 8" White
Product Overview
The Atlas Sound 61-8W is a decorative steel speaker baffle designed to accept standard 8" (203 mm) loudspeakers in commercial ceiling installations. Finished in textured white with a two-piece welded CRS construction, it is UL Listed (UL 1480) and BAA/TAA compliant, making it suitable for both commercial and government facility audio projects. The concealed speaker mounting stud design creates a clean, grille-only appearance that integrates discreetly into suspended ceiling environments.
Product Description
The 61-8W baffle uses a two-piece welded cold-rolled steel construction consisting of a 20-gauge trim ring and a 22-gauge perforated grille, delivering both structural rigidity and adequate acoustic transparency. The textured white powder-coat finish matches standard commercial ceiling tile and drywall surfaces, allowing the baffle to blend naturally into installed environments. Concealed loudspeaker mounting studs eliminate visible hardware on the face of the baffle, providing a finished, professional appearance after installation. The 12 3/4" overall diameter fits standard 8" speaker cutouts in ceiling tiles and drywall. Companion enclosures and mounting rings are available from AtlasIED for tile bridge and blind-mount applications, providing installation flexibility across ceiling types. The 61-8W is UL Listed to 1480 and optionally available with Atlas's hydrophobic environmental treatment coating for environments with elevated humidity. A 60-month warranty supports long-term deployment in commercial facilities such as corporate offices, healthcare facilities, educational buildings, and hospitality venues.
Key Features
- UL Listed (UL 1480) — Meets safety standards for commercial in-ceiling speaker installations.
- BAA and TAA Compliant — Supports Buy America Act and Trade Agreements Act procurement requirements.
- Two-Piece Welded CRS Construction — 20-gauge trim ring and 22-gauge perforated grille for durability and acoustic performance.
- Concealed Mounting Studs — Hardware is hidden from view, producing a clean finished appearance.
- Textured White Finish — Blends with standard commercial ceiling surfaces.
- Companion Enclosures Available — Compatible with AtlasIED mounting rings and enclosures for tile bridge or blind-mount use.
- Optional Hydrophobic Coating — Available with environmental treatment for moisture-prone installations.
- 60-Month Warranty — Backed by a 5-year product warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Speaker Size | 8" |
| Overall Diameter | 12 3/4" (32.39 cm) |
| Construction | Two-piece welded CRS (20-ga trim ring, 22-ga perforated grille) |
| Finish | Textured White |
| Safety Listed | UL 1480 |
| Shipping Weight | 1.50 lbs (0.68 kg) |
| Warranty | 60 months from date of purchase |
