AtlasIED 307-12 – 19-Inch Stand-Alone Wall Cabinet 7 RU, 12-Inch Depth

Product Overview

The AtlasIED 307-12 is a 7 RU stand-alone wall mount rack cabinet with a 12-inch deep center mounting section and adjustable front rack rails, designed to house AV, audio, and networking equipment in commercial installations where floor space is at a premium. Part of the AtlasIED 300 Series wall rack line, the 307-12 is constructed from 16-gauge CRS steel with electric-welded seams, reinforced frame flanges, and corner-brace structural supports that provide a stable mounting platform for rack-mount equipment in offices, conference rooms, server closets, and AV equipment rooms. The 307-12 meets Buy America Act (BAA) and Trade Agreements Act (TAA) compliance requirements, making it appropriate for government and federally funded projects.

Product Description

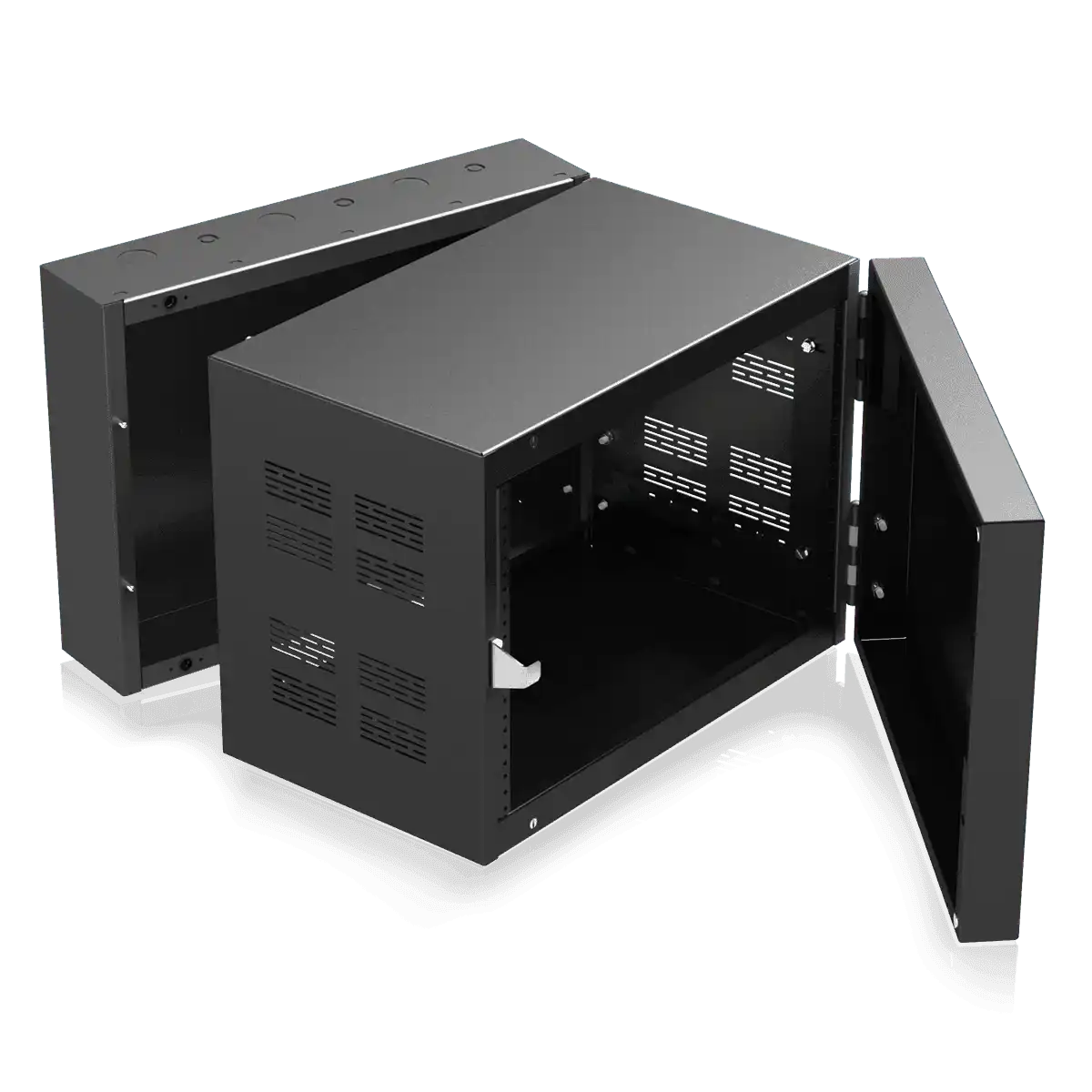

The 307-12 wall cabinet follows a three-section design: a 2-inch deep solid-steel front door, a 12-inch deep center section with adjustable mounting rails, and a 4-1/2-inch deep rear door. The front rack rails are tapped 10-32 and manufactured to standard EIA 1/2-inch spacing, ensuring compatibility with any standard 19-inch rack-mount equipment. The 7 RU panel space opening accommodates a range of equipment including amplifiers, signal processors, network switches, patch panels, and power distribution units.

Internal open raceways provide organized cable pathways through the cabinet, reducing cable clutter and improving serviceability. Corner brace supports on the rear section include 1-1/4-inch diameter round wire access holes for harnessing excess wire. The back face of the rear section features 1/4-inch deep boss detents on 12-inch centers, which give installers the option to mount a custom plywood, aluminum, or steel sub-plate for non-rack accessories inside the cabinet. The 307-12 has 16 conduit knockouts on the rear section with a centered array, providing flexible conduit entry options for structured wiring in commercial construction environments.

Perforated vents on both sides of the center section (top and bottom) provide passive ventilation for heat-generating rack-mounted electronics, an important consideration in enclosed wall cabinet installations. The center section uses a guide plate mechanism that distributes equipment weight to the rear section, preventing sagging and ensuring the door closes properly under load. The 307-12 is finished in #962 black epoxy and carries a 60-month warranty from AtlasIED. This model is listed as built-to-order.

Key Features

• 16-Gauge CRS Welded Steel Construction — Heavy-duty cold-rolled steel with electric-welded seams and miters for maximum structural integrity and long-term stability with rack-mounted loads.
• 7 RU Panel Space Opening — Accommodates standard 19-inch rack-mount equipment including amplifiers, DSP processors, network switches, and power distribution units.
• 12-Inch Deep Center Mounting Section — Provides adequate depth for most commercial AV and networking equipment without the bulk of a full-depth floor rack.
• Adjustable Front Rack Rails — 10-32 tapped rails at standard EIA 1/2-inch spacing allow equipment to be repositioned or replaced without modifications.
• Punched Ventilation — Perforated side vents on the center section dissipate heat from rack-mounted electronics, extending equipment service life in enclosed installations.
• Reinforced Frame and Corner Brace Supports — Frame flanges on bottom, top, and sides combined with corner-brace supports provide a stable, rigid enclosure that resists rack sag and structural flex.
• Internal Open Raceways — Cable pathways inside the cabinet keep signal, power, and data wiring organized and accessible for maintenance and future modifications.
• Boss Detents for Custom Sub-Plate — Rear section detents on 12-inch centers allow contractors to install a field-cut plywood, aluminum, or steel sub-plate for mounting non-rack accessories.
• 16 Conduit Knockouts — Rear section conduit knockout array supports structured cabling entry in both new construction and retrofit installations.
• BAA / TAA Compliant — Meets Buy America Act and Trade Agreements Act requirements for government, education, and federally funded commercial projects.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Training room
• Government space
• House of worship
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Q: What types of equipment can be mounted in the 307-12?

A: Any standard 19-inch rack-mount equipment that fits within 7 RU and a 12-inch center section depth. Typical installations include audio amplifiers, DSP signal processors, power distribution units, network switches, and patch panels. The front rails are tapped 10-32 at standard EIA 1/2-inch spacing.

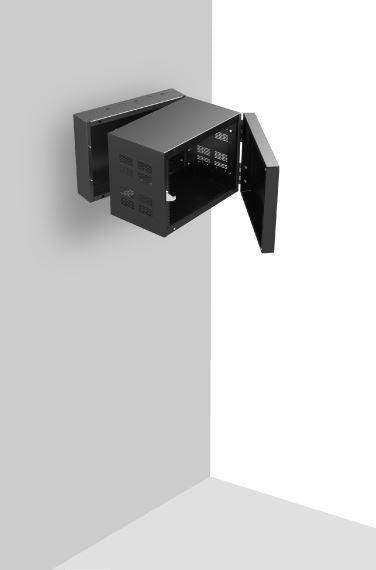

Q: How is the 307-12 mounted to the wall?

A: The 307-12 is a stand-alone wall cabinet designed to mount directly to wall studs or a solid backing. The rear section provides mounting provisions. For installations requiring a support caster, AtlasIED offers the CT31A heavy-duty support caster as an accessory.

Q: Is the 307-12 ventilated?

A: Yes. Perforated vents on both the top and bottom of both sides of the center section provide passive ventilation for heat-generating equipment. Active cooling fans can be added if required for high-heat installations.

Q: Does this cabinet meet government procurement requirements?

A: Yes. The 307-12 is BAA (Buy America Act) and TAA (Trade Agreements Act) compliant, making it suitable for use in government, education, and federally funded commercial construction projects.

Q: What is the lead time for the 307-12?

A: The 307-12 is listed as built-to-order by AtlasIED. Contact Creation Networks at creationnetworks.net for current lead time and availability before placing an order.

Q: What is the warranty on the 307-12?

A: AtlasIED provides a 60-month (5-year) warranty from the date of purchase on the 307-12, which is longer than the standard 36-month warranty on most AtlasIED products.

Q: Where can I order the AtlasIED 307-12?

A: The 307-12 is available through creationnetworks.net. Creation Networks can also assist with selecting the correct rack size, accessories, and mounting hardware for your specific installation.
