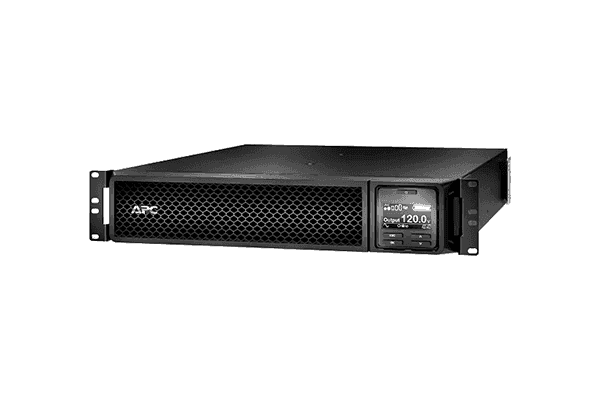

APC SRT1500RMXLA-NC Smart-UPS SRT 1500VA Sinewave 2U Rackmount 120V

Product Overview

The APC Smart-UPS On-Line SRT1500RMXLA-NC is a 1500VA double-conversion online UPS that delivers continuous, conditioned power for compact rack deployments. As a 1500VA online UPS, it provides pure sine wave output and true double-conversion protection for servers, networking devices, and AV control gear. This APC Smart-UPS SRT model fits AV racks and edge equipment closets running 120V where clean power and remote management are required. A factory-installed network card and scalable runtime make it suited to managed, continuity-critical installations.

Product Description

The SRT1500RMXLA-NC uses online double-conversion to isolate connected equipment from the utility feed, regenerating a clean 120V output that holds steady through sags, surges, and frequency variation. The compact 2U rackmount chassis installs in standard 19-inch racks and ships with a rail kit. Output is delivered through 6x NEMA 5-15R outlets, supporting servers, switches, point-of-sale systems, and AV control hardware. A factory-installed Network Management Card provides remote monitoring, control, and integration with management platforms, and PowerChute software coordinates graceful shutdown of connected systems. The unit supports extended runtime: up to ten SRT48BP external battery packs can be connected to lengthen backup time for sustained outages. A front LCD presents status and configuration data for commissioning and service. The combination of double-conversion protection, remote management, and scalable runtime makes it a practical choice for managed AV and IT edge deployments.

Key Features

• 1500VA double-conversion topology — Continuously regenerates output to isolate connected loads from utility disturbances.
• Pure sine wave output — Delivers clean waveform for sensitive switch-mode power supplies in servers and AV electronics.
• Compact 2U rackmount chassis — Fits standard 19-inch racks and ships with a rail kit for straightforward installation.
• 120V operation with 6x NEMA 5-15R outlets — Powers North American servers, networking, and AV control devices.
• Factory-installed Network Management Card — Enables remote monitoring, control, and management-platform integration out of the box.
• PowerChute software support — Coordinates graceful unattended shutdown of protected systems.
• Scalable runtime — Connects up to ten SRT48BP external battery packs to extend backup time.
• Front LCD interface — Shows status and configuration data for commissioning and service.

Typical Applications

• Conference room — Keeps AV control systems, codecs, and networking running through utility events.
• Training room — Protects presentation and recording equipment from disruptive power dropouts.
• House of worship — Maintains audio and control systems during services through brief outages.
• Commercial meeting space — Supports edge AV and IT hardware in distributed rooms.

Technical Specifications

Specifications sourced from Schneider Electric (APC) product data.

Frequently Asked Questions

What does the SRT1500RMXLA-NC protect?
It is designed for 120V racks running servers, networking devices, point-of-sale systems, and AV control gear that require continuous double-conversion protection.

Is it rack-mountable?
Yes. The compact 2U chassis ships with a rail kit for installation in standard 19-inch racks.

How does it integrate with AV and IT management?
A factory-installed Network Management Card enables remote monitoring and control, and PowerChute software coordinates graceful shutdown of connected systems.

Can the runtime be extended?
Yes. Up to ten SRT48BP external battery packs can be connected to extend backup time.

Are replacement batteries available?
APC offers replacement battery modules and SRT48BP external battery packs for this family; refer to Schneider Electric documentation for the correct components.

What warranty and support apply?
The UPS is covered under Schneider Electric's standard warranty and support program; consult current Schneider Electric documentation for specific terms.
