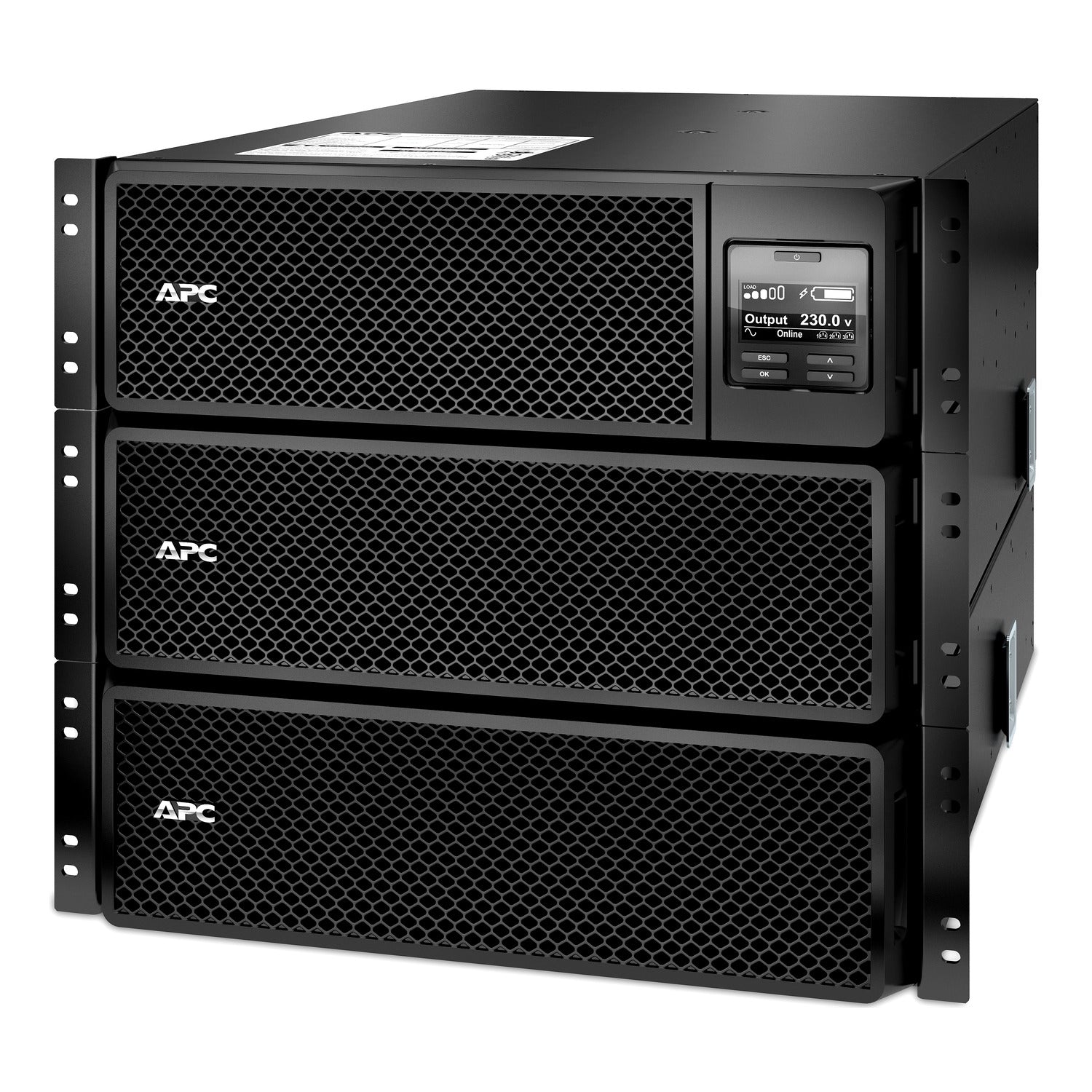

APC Smart-UPS On-Line SRT8KRMXLT-IEC 8000VA Rackmount 208V IEC

Regular price $18,375.00
Shipping calculated at checkout.
APC  |  SKU: SRT8KRMXLT-IEC

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

Accepted payment methods

Product Overview

The APC Smart-UPS On-Line SRT8KRMXLT-IEC is an 8000VA / 7200W double-conversion on-line UPS in a 6U rackmount chassis with 208V input and IEC 309 output receptacles, providing ultra-high-capacity zero-transfer-time power protection for broadcast production racks, command center infrastructure, and enterprise AV systems using IEC-configured equipment on 208V circuits. The continuously regenerated pure sine wave output delivers complete galvanic isolation from all utility power quality disturbances, appropriate for broadcast-grade electronics and mission-critical AV rack deployments with IEC power inlet equipment. Internal bypass, scalable runtime via external SRT 192V packs, and optional NMC complete the enterprise feature set.

Product Description

The SRT8KRMXLT-IEC addresses the most demanding 208V IEC-configured commercial AV and broadcast rack deployments — broadcast production facilities with IEC-equipped routing switchers and production servers, command center racks with international commercial AV hardware, and enterprise data center rows where 8000VA of double-conversion on-line 208V protection with IEC output is specified. The 6U rackmount chassis installs in standard 19-inch racks. Internal bypass maintains connected equipment power during UPS maintenance, critical for 24/7 broadcast operations. External APC SRT 192V battery packs scale runtime. SmartSlot accepts optional NMC for SNMP and EcoStruxure IT monitoring.

Key Features

  • 8000VA / 7200W Capacity — Ultra-high-capacity 208V on-line rack UPS with IEC output.
  • Double-Conversion On-Line Topology — Zero transfer time and complete 208V galvanic isolation.
  • IEC 309 Output Receptacles — For IEC-equipped broadcast and enterprise AV rack hardware.
  • 6U Rackmount — Standard 19-inch rack installation.
  • Internal Bypass — Continuous power during UPS maintenance.
  • Scalable Runtime — External APC SRT 192V battery packs.
  • SmartSlot — Optional NMC for enterprise monitoring.

Technical Specifications

Specification Value
Model SRT8KRMXLT-IEC
Capacity 8000VA / 7200W
Topology Double-Conversion On-Line
Input Voltage 208V
Output Voltage 208V
Form Factor 6U Rackmount
Receptacles IEC 309
Internal Bypass Yes
SmartSlot Yes (optional NMC)
External Battery Compatible with APC SRT 192V battery packs
Warranty 2 Years
