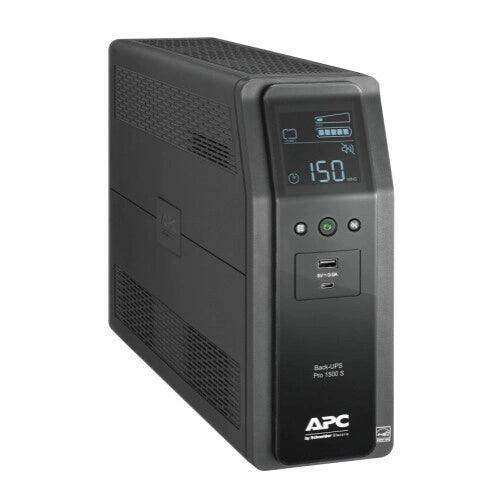

APC BR1500MS2 Back-UPS Pro Uninterruptible Power Supply

Product Overview

The APC Back-UPS Pro BR1500MS2 is a 1500VA/900W line-interactive UPS battery backup designed to keep commercial AV systems, control processors, and networked endpoints running through power outages and voltage events. This APC Back-UPS Pro 1500VA model pairs automatic voltage regulation with surge and data line protection in a 120V tower chassis. It is well suited to integrators who need a higher-capacity UPS battery backup for rack-adjacent and desktop AV equipment. With 10 backup outlets and an LCD status readout, the BR1500MS2 supports reliable runtime for mission-critical room technology.

Product Description

The BR1500MS2 delivers 1500VA/900W of capacity from a 120V tower form factor with 10 NEMA 5-15R outlets. Automatic Voltage Regulation (AVR) corrects high and low voltage conditions without switching to battery, which preserves battery capacity during brownouts and over-voltage events. An LCD display presents key UPS status at a glance, including load and battery bar graphs that help technicians verify operating conditions. Two USB smart charging ports, with both Type A and Type C, allow phones and small peripherals to charge directly from the unit. Data line protection helps guard connected equipment against surges that travel over signal lines. Audible alarms notify users of changing utility power and UPS power conditions. The battery is user-replaceable, so the unit can remain in service across multiple battery cycles. The BR1500MS2 is ENERGY STAR certified for energy-efficient operation.

Key Features

• 1500VA / 900W capacity — Provides higher backup headroom for AV control systems, displays, and network equipment.
• Automatic Voltage Regulation (AVR) — Corrects voltage variations to deliver reliable power without draining the battery.
• LCD status display — Shows load and battery bar graphs so technicians can confirm UPS status at a glance.

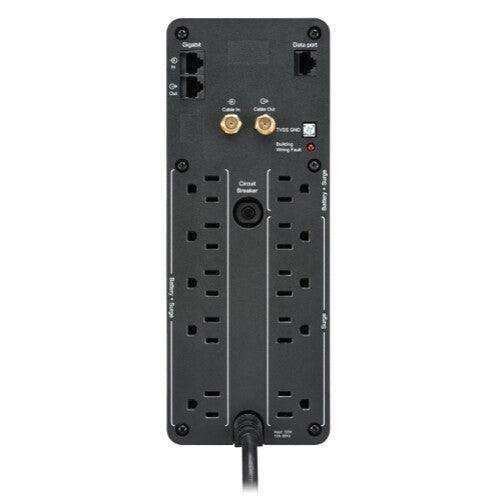

• 10 NEMA 5-15R outlets — Supplies backup and surge-protected outlets for multiple connected devices.
• USB Type A and Type C charging ports — Provide smart charging for phones and small peripherals at the rack or desk.
• Data line protection — Helps protect connected equipment from surges traveling over data lines.
• Audible alarms — Notify operators of changing utility power and UPS power conditions.
• User-replaceable battery — Keeps the unit serviceable across battery replacement cycles.
• ENERGY STAR certified — Meets ENERGY STAR UPS V2.0 efficiency requirements for lower operating cost.

Typical Applications

• Conference room — Keeps codecs, control processors, and displays online during short outages so meetings continue without interruption.
• Boardroom — Protects high-value presentation and video conferencing equipment from surges and unstable utility power.
• Training room — Maintains runtime for instructor stations and AV switching gear during power events.
• Broadcast studio — Supports continuity for production and signal-processing equipment that cannot tolerate sudden power loss.
• Government space — Provides backup power for secured AV and networking equipment in commercial meeting environments.

Technical Specifications

Specifications sourced from Schneider Electric (APC) product data.

Frequently Asked Questions

Is the BR1500MS2 compatible with AV control systems and computers?
Yes. It supplies 120V backup power through 10 NEMA 5-15R outlets and is intended for computers and electronics, including AV control gear and networked equipment.

How is the BR1500MS2 installed?
It is a tower-form UPS that sits on a desk, shelf, or rack-adjacent surface. Connect equipment to the battery-backup outlets and the unit to a grounded 120V wall outlet.

Can it integrate with AV and IT monitoring?
The unit includes USB connectivity and an LCD that displays load and battery status, which supports monitoring at the equipment location. Refer to Schneider Electric documentation for management software compatibility.

Does it use a replaceable battery?
Yes. The BR1500MS2 uses a user-replaceable battery, and a replacement battery is available so the unit can stay in service across battery cycles.

What warranty and support are available?
Warranty terms and technical support are provided by Schneider Electric (APC). Refer to Schneider Electric documentation for current warranty coverage and support options.

Browse more power protection options in the APC Power Protection & UPS collection at Creation Networks.
