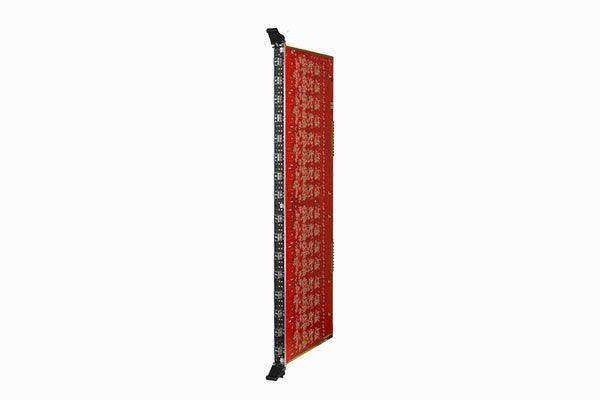

AMX EPICADGX288-VIO-SMF-S Epica DGX 288 Single Mode Fiber Input/Output Board, Simplex
AMX EPICADGX288-VIO-SMF-S Epica DGX 288 Single Mode Fiber Input/Output Board, Simplex is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
AMX EPICADGX288-VIO-SMF-S Epica DGX 288 Single Mode Fiber Input/Out...
AMX EPICADGX288-VIO-SMF-S – Epica DGX 288 Single-Mode Fiber I/O Board (Simplex)
Product Overview
The AMX EPICADGX288-VIO-SMF-S is a simplex single-mode fiber input/output board for the Epica DGX 288 modular matrix switcher, enabling uncompressed AV signal distribution over single-mode fiber at distances up to 10 km. Each board provides 16 bi-directional connections — functioning as a full 16x16 matrix per slot — and is designed for large-scale commercial AV, government command center, and broadcast infrastructure deployments requiring long-distance, lossless fiber transport. The board is compatible with AMX DXLink Multi-Format Simplex Transmitters and DXLink HDMI Simplex Receivers, and interoperates with Enova DGX systems using simplex fiber boards for cross-system signal routing.
Product Description
The EPICADGX288-VIO-SMF-S (FG1055-520) installs into the Epica DGX 288 Enclosure and delivers a full 16x16 matrix of single-mode fiber connections per board, with each port serving as both an input and an output. Up to 18 boards can be installed in a single Epica DGX 288 chassis, enabling configurations up to a full 288x288 matrix. Single-mode fiber (9/125 mm) supports transmission distances up to 6.21 miles (10 km), making this board ideal for campus-wide AV distribution, inter-building signal routing, and large venue infrastructure. The board supports HDMI with HDCP and embedded audio, with audio format compatibility covering Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and up to 8-channel L-PCM. SmartScale Technology on compatible DXLink Fiber Receivers automatically scales output resolution to each display's native EDID, ensuring compatibility across diverse display environments. Simplex fiber boards can also exchange signals with AMX Enova DGX systems, making the Epica DGX 288 a viable central distribution hub in multi-system enterprise or broadcast AV installations.
Key Features
- Full 16x16 Per Board: Each board provides 16 bi-directional simplex fiber connections, functioning as a complete 16x16 matrix in a single chassis slot.
- Single-Mode Fiber up to 10 km: Supports transmission over 9/125 mm single-mode fiber at distances up to 6.21 miles for inter-building and campus-scale AV distribution.
- Uncompressed AV Transport: Pixel-perfect, uncompressed video and audio over fiber with zero latency and no signal degradation.
- HDMI with HDCP: Full HDCP compliance for secure content distribution in commercial AV environments.
- Multi-Format Audio: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and 2 CH through 8 CH L-PCM.
- SmartScale Receiver Compatibility: Paired DXLink Fiber Receivers auto-scale to each display's native EDID.
- Enova DGX Interoperability: Can exchange signals with Enova DGX systems using simplex fiber boards for cross-system routing.
Typical Applications
- Government Command Centers: Long-distance, secure fiber signal distribution across secured facilities and multi-building government campuses.
- Broadcast Studios: High-density uncompressed fiber routing for live production and multi-studio distribution.
- Enterprise AV Infrastructure: Campus-wide AV signal routing between buildings using single-mode fiber.
- Auditoriums and Large Venues: Multi-zone AV distribution from a central matrix to remote display zones.
Technical Specifications
| Specification | Detail |
|---|---|
| Board Type | Simplex Single-Mode Fiber I/O Board |
| Connections Per Board | 16 (each port is both input and output — full 16x16 matrix per board) |
| Fiber Cable Type | Single-mode — 9/125 mm |
| Maximum Distance | 6.21 miles (10 km) |
| Compatible Video | HDMI with HDCP (depends on connected DXLink Fiber TX/RX) |
| Audio | Dolby TrueHD, Dolby Digital, DTS-HD MA, DTS, 2–8 CH L-PCM |
| Compatible Enclosure | AMX Epica DGX 288 (EPICADGX288-ENC) |
| Compatible Endpoints | DXLink Multi-Format Simplex TX, DXLink HDMI Simplex RX, Enova DGX simplex fiber systems |
| FG Number | FG1055-520 |
Frequently Asked Questions
- How many SMF-S boards can be installed in the Epica DGX 288 Enclosure?
- Up to 18 boards can be installed, enabling a full 288x288 single-mode fiber matrix. Each board adds a 16x16 block of routing capacity.
- Can single-mode and multimode boards be mixed in the same chassis?
- Yes. Both SMF-S and MMF-S boards can be mixed in the same Epica DGX 288 chassis, with all inputs routable to any output regardless of board type.
- What is the maximum distance supported?
- Single-mode fiber supports up to 10 km (6.21 miles). For shorter intra-building runs, the multimode MMF-S board supports up to 300 m.
- What support is available?
- Creation Networks provides full pre-sales, installation, and post-sale support for Epica DGX 288 deployments nationwide. Contact us at 1-888-230-3661 for project scoping and expert assistance.
