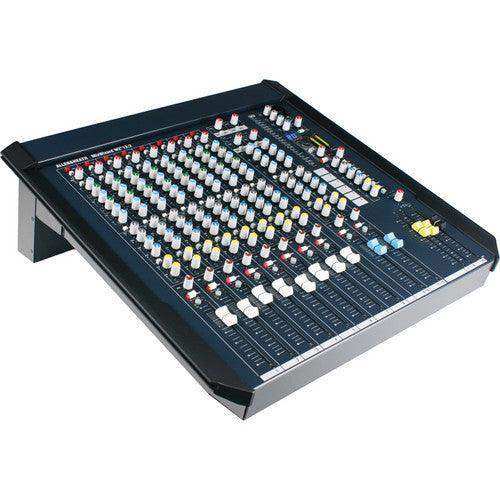

Allen & Heath AH-WZ412:2 – MixWizard4 12-Channel Professional Mixing Console

Product Overview

The Allen & Heath AH-WZ412:2 MixWizard4 12:2 is a 12-channel professional analog mixing console suited to commercial installation environments where a compact channel count, full EQ, and auxiliary flexibility are required in a desktop form factor. It provides 8 balanced mic/line input channels, two full dual-stereo input channels, six auxiliary outputs, two built-in FX engines with 20 presets, and 100mm faders. For commercial AV integrators specifying a 12-channel professional analog mixing console for boardroom installation, the WZ412:2 delivers a complete and well-structured signal path with direct outputs and comprehensive routing options at a lower cost and footprint than 16-channel alternatives.

Product Description

The MixWizard4 12:2 uses the same channel strip architecture as the WZ416:2, giving the WZ412:2 a full professional feature set on each of its eight mic/line input channels: balanced XLR and TRS jacks, 48V phantom power, -20dB pad, 4-band EQ with two swept midrange bands, six aux sends, pan, channel mute, and a high-pass filter at 80Hz (12dB/octave). These are not abbreviated specifications; each channel is identical in capability to those found on the larger MixWizard models.

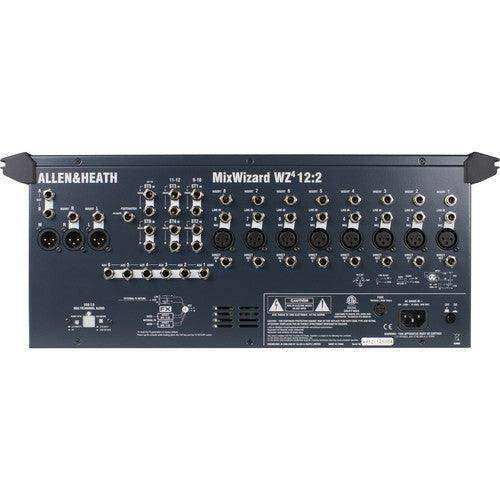

The two additional dual-stereo input channels accept stereo sources and can be used independently, mixed together, or split so that one feeds the other — a flexible arrangement for integrating stereo playback devices, confidence monitors, or tie-line signals from other rooms or systems. Direct outputs on all mic/line channels allow individual channel feeds to be sent to a recording interface, conferencing codec, or digital audio processor without affecting the main mix or requiring a split transformer.

The six auxiliary outputs support monitor sends, hearing loop feeds, effects return routing, or zone distribution as required by the installation. Two onboard FX engines with 20 factory presets handle common speech reinforcement reverb and delay needs without requiring an external processor. The stereo master, mono master, stereo control room/monitor output, and headphone output give operators the monitoring flexibility needed in both operator-attended and self-operated AV environments. This Allen & Heath MixWizard4 12:2 compact analog console for government and education installations offers a practical right-sizing of channel count for rooms where 16 inputs exceed requirements.

Key Features

• 8 Balanced Mic/Line Inputs — XLR and TRS jacks on all 8 mono channels with 48V phantom power and -20dB pad.
• 2 Dual-Stereo Input Channels — Flexible stereo inputs that can operate independently, summed, or split for versatile stereo source integration.
• 4-Band EQ with 2 Swept Mids — Full EQ on every mic/line channel for precise frequency control in speech and music reinforcement.
• 8 Direct Outputs — Individual pre-fader direct outputs on all mic/line channels for multitrack recording or codec feeds.
• 6 Auxiliary Outputs — Six mono aux sends per channel for monitor mixes, hearing loops, effects, or zone distribution.
• Dual Built-In FX Engines — Two effects processors with 20 factory presets for speech reinforcement reverb and delay applications.
• 100mm Faders — Full-length faders across all channels and master section.
• 80Hz High-Pass Filter — 12dB/octave HPF on every channel reduces low-frequency noise from mic inputs.
• Tri-Color LED Metering — Per-channel signal and peak indication for rapid level monitoring and troubleshooting.

Typical Applications

• Boardroom and conference room audio where a full 16-channel console exceeds channel requirements
• Government facility and hearing room audio systems
• Commercial AV installation in education, corporate, or government environments

Technical Specifications

Frequently Asked Questions

How does the WZ412:2 differ from the WZ416:2?

The WZ412:2 provides 8 mic/line input channels compared to 16 on the WZ416:2. Both use the same channel strip design, EQ, aux architecture, and FX engines. The WZ412:2 also includes 8 direct outputs versus 16 on the larger model.

What are the dual-stereo input channels used for?

The two dual-stereo channels accept stereo sources such as playback devices, streaming receivers, or tie-lines. They can be used independently, mixed together, or routed so one feeds the other.

Does the WZ412:2 support multitrack recording?

Yes. Direct outputs on all 8 mic/line channels provide pre-fader channel feeds suitable for multitrack recording interfaces or conferencing codecs.

Is the console rack mountable?

No. The WZ412:2 is a desktop console. It is designed for tabletop or built-in furniture installation in boardrooms and control rooms.

Can the aux sends be used for both monitor mixes and effects?

Yes. The six aux sends are independently assignable to different destinations simultaneously, such as monitor feeds, outboard effects, hearing loop distribution, or recording submixes.

Does the console include built-in effects?

Yes. Two onboard FX engines with 20 factory presets provide reverb and delay effects for speech reinforcement and presentation environments.

What warranty applies?

Standard Allen & Heath manufacturer warranty applies. Contact Creation Networks for warranty registration and support options.
