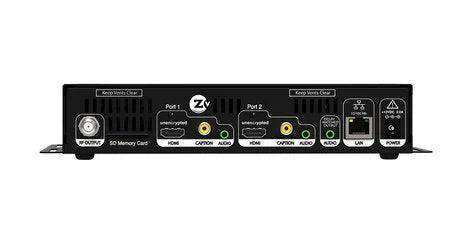

ZeeVee ZVPRO820I-NA ZvPro820i High Definition Video Encoder/QAM Module

A two channel QAM, MPEG2, Encoder/Modulator unit, the Zee Vee ZvPro820i, along with delivering uncompromising digital HD video distribution over your existing RF network from your unencrypted HDMI sources as well as providing simultaneous IP streaming with zero compromise to performance, allows you to easily distribute content up to 1080p resolution to an unlimited number of displays using the TV’s built-in QAM tuner. This eliminates the need for cumbersome, expensive set-top-boxes or media players at each display. Its onboard IP streaming functions can deliver remarkable quality video to any media player or other IP device - perfect for digital signage.

ZvPro Series

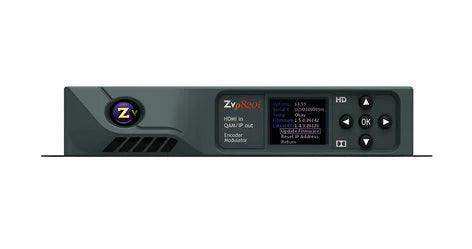

ZvPro units can be managed either locally through the color LCD screen on the front panel or remotely working with the Maestro web-based software. ZeeVee units can also support Dolby Digital audio encoding. ZvPro allows you to control power output from 25 to 45dBmV QAM output levels in 1dBmV steps. ZvPro delivers resolutions from 480i to 1080i/p. If you need a component or VGA connection, check out the ZvPro610i or the ZvPro620i.

Send HD Video to your Display using your Digital QAM Tuner or IP network

ZvPro lets you convert your content to a private television channel that is sent over a coax cable - just like your existing satellite or cable box - except you control the content. If your display or projector does not have a tuner, you can purchase a ZvSync decoder to convert the signal to a HDMI output to send to your display.

ZvPro iSeries models will also generate a simultaneous MPEG-2 video stream that can be sent over any IP network to IP set-top boxes, computers, or digital media players. This feature makes it easy for computer users to monitor news channels, worship services, presentations or other video where you may not have a coax cable connection.

Add a Digital and Tuner to your display with ZvSync

If you have a projector or other display that doesn't have a QAM or digital tuner, no problem. The ZvSync (sold separately) enables you to connect any display or projector to the ZvPro encoder coax connection and receive crystal clear 1080p video just as if your display was built with a digital coax tuner. Perfect for house of worship applications that use projectors and televisions in the same space.

Optional IP Output to send HD video directly to your network

ZvPro 810i and 820i products offer simultaneous IP network output that enables them to send HD video direct to a digital signage player, computer, or tablet simply by typing in the assigned address. The unit sends a standard MPEG 2 video stream that can be received by any standard device or player.

Made in the USA

The ZeeVee product line is proudly designed and manufactured in the USA.

Five Year Warranty

ZeeVee ZvPro products are highly reliable and feature an industry leading five year limited warranty.

Zee Vee ZvPro820i Specifications:

• General:
  • Power:100-240 VAC 50/60 Hz, 36W max., 18W Typical IEC 60320-C14
  • Cooling: Internal cooling fan, front inlet, rear exhaust
  • Temperature/Humidity: Operating +32 F° to +113 F° (0 C° to +45 C°) / 10% to 80%, non-condensing
  • Vibration: NSTA 1A in carton
  • MTBF: 62,000 hours
  • Compliance: FCC Class A, IEC60065, EN61000 (see Manual #70-00047), CE, RoHS
  • Enclosure Type: Metal
  • Mounting: Shelf mount flange or rack ears (sold separately), 1 RU high
  • Enclosure Dimensions (H x W x D): 8" x 10" x 1.75" (20.32 x 25.4 x 4.445cm)
  • System Weight: 3.1 lbs (1.4 kg)
  • Carton Dimensions (individual, H x W x D): 2.75" x 14" x 12" (6.985 x 35.56 x 30.48cm)
  • Shipping Weight: 5 lbs (2.3 kg)
  • Warranty: 5 years
• Video Input:
  • Closed Caption: EIA/CEA-608 captions accepted over composite video input
  • Unencrypted HDMI x2 or x1: One (1) or two (2) ports per model up to 1080; HDMI 1.3 compliant. Backwards compatible to DVI 1.0 specifications
  • Extra Digital Channel: MPEG2 program stream file, up to 200 MB
• Audio Input:
  • Stereo Analog and Digital Audio x4 or x2 Digital as element of HDMI 1.3 port or 3.5 mm stereo female, line level input per channel
• Video Encoder:
  • Encoder Video Profile MPEG2 HD: ISO13818-2 MainProfile @HighLevel
  • Traffic Shaping: Variable Bit Rate
  • Video Encoding Data Rates: Variable, 10 Mbs - 24 Mbs per channel
  • Average Encoding Data Rate: 18 Mbs per channel
  • Encoding Latency: Programmable 200 msec to 400 msec
  • Color Profile: 4:02:00
  • GOP Size: 15
  • Video, Audio PID: Programmable starting value
  • Program Information: Programmable program name, EIT
  • Encoder Audio Profile: ATSC A/52, Dolby® Digital (AC-3)
• Modulator/Upconverter:
  • Modulation Types: QAM 256 and 64 (ITU-T J83 Annex B) Interleaving modes: (64,2) only
  • Cable Standard: HRC, IRC or STD
  • Frequency Range: Single or one paired, frequency agile QAM RF CATV channels 2-135; 2kHz resolution; +/- 30 ppm accuracy; +/- 35 ppm stability
  • Output Power: +45 dBmV typical
  • Output Level Adjust: 25 - 45 dBmV in 1dBmV steps
  • MER: > 38 dB typical
  • I/Q Amplitude Imbalance: < 1% typical
  • Spectral Tilt: < / = 1 dB over 8 MHz typical
• IP Stream Output:
  • Stream Details: RJ-45 10/100Mb Ethernet connection; Up to 2 SPTS, one for each encoded video stream; UDP unicast or multicast, IPV4; User programmable destination address / port
• Control Set-up:
  • Network Interface: 10/100 Mb Ethernet via RJ45 connection; IP address via DHCP or set by user; HTML/Javascript served web interface for easy configuration; Telnet connection for CLI scripting; Easy firmware updates; All settings saved in NV storage
  • Front Panel Color Display: Quickly obtain status at a glance, basic configurations, software revisions and updates
