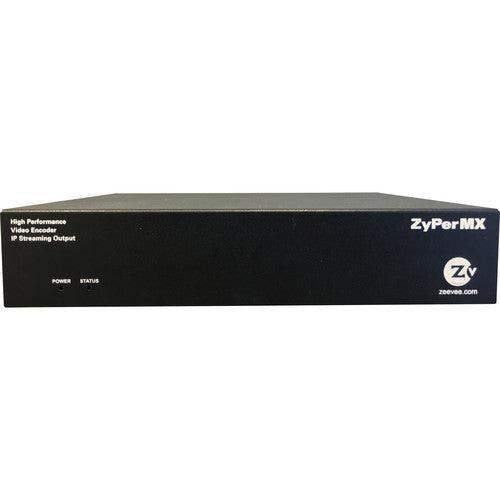

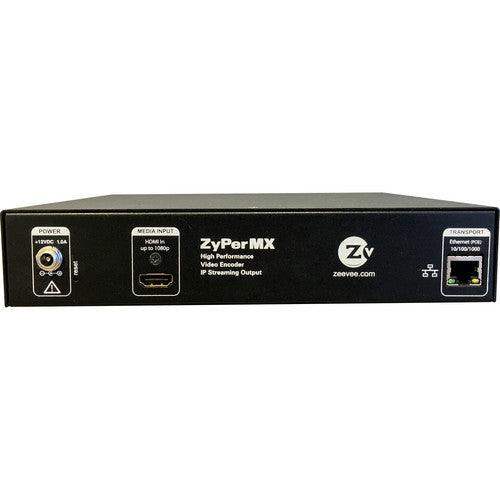

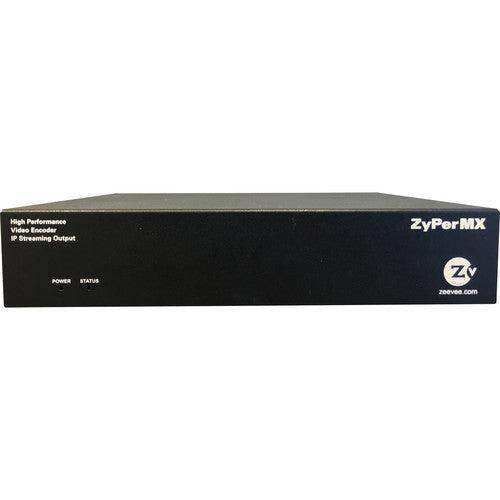

The ZyPerMX IP Encoder from ZeeVee is a hardware platform designed to encode and distribute video over a Local Area Network. It supports resolutions up to 1080p Full HD and 1920 x 1200 @ 60 Hz. It supports up to 8 channels of embedded audio and supports Dolby Digital, MPEG-1 audio, and LPCM audio streams. It communicates directly with each encoder using the built-in web server or Telnet protocol, providing full access to configuration parameters, control, and features. Once connected to the network, the IP settings on the encoder can be configured automatically by a DHCP server or can be entered manually in static mode. It supports both multicast and unicast UDP and RTP data connections.
You can input your HDMI source into the ZyPerMX encoder, and it will convert your video into a standard H.264 IP stream up to 1920 x 1200 @ 60 Hz. Using multicast mode, you can send audio and video content to an unlimited ZeeVee MXE set-top boxes or other H.264 compatible players. The encoder can be easily set up using the built-in HTML browser pages or with a third-party controller using standard Telnet commands.
When Bandwidth and Cost is a Concern
ZyPerMX encoder is a hardware platform designed to encode and distribute video over a Local Area Network. Resolutions up to 1080p Full HD and 1920 x 1200 @ 60 Hz are supported. Embedded audio, up to 8 channels, is passed through and supports Linear PCM, MPEG-1 Audio Layer 2, and Dolby® Digital formats. Communicate directly with each encoder using the built-in web server providing full access to configuration parameters, control, and features. Once connected to the network, the IP settings on the encoder can be configured automatically by a DHCP server or can be entered manually in static mode. Both multicast and unicast UDP and RTP data connections are supported. The ZyPerMX Encoder provides a complete and cost-effective solution for video-over-IP applications requiring high-performance and zero downtime in a dynamic environment.
Send compressed Full HD 1080p video, audio, and control over ethernet
ZyPerMX delivers stunning pixel for pixel reproduction of compressed 720p and 1080p HD resolution content directly over a standard 1Gb ethernet network. ZyPerMX eliminates the need to have a separate AV network or equipment for video and other AV content.
Change sources and content instantly without programming
IP based architecture enables you to quickly switch from one source to another with minimal loss of frames - even at 1080p resolutions
Dolby Digital 7.1 Audio
ZyPerMX can distribute high definition 7.1 crystal clear audio from each source over the entire network - perfect for churches, stadiums, or other public venues that need an affordable long distance audio solution.
