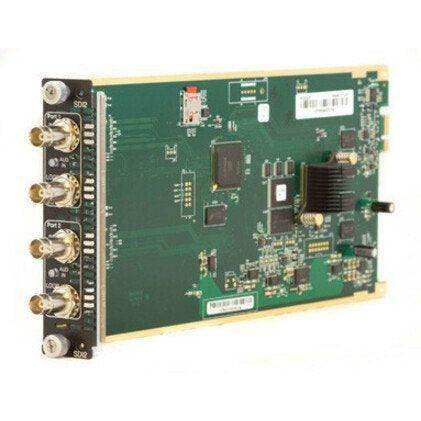

ZeeVee 3KSDI2RI HDbridge3000 HD-SDI RF-IP Media Module Blade

Availability: Call for Availability
Availability: Direct Ship
ZeeVee SKU: 3KSDI2RI
No reviews

Price:
Sale price$2,272.63

Description

RF Modulation and IP Encoding in one Chassis

Ideal for organizations looking for an easy and affordable way to create a digital head-end for distributing large numbers of AV sources to an unlimited amount of displays, the HDbridge3000 provides a reliable way to deliver multiple channels of video simultaneously within a compact 3RU footprint. Whether you are distributing SD or HD content, over RF or IP, the ZeeVee HDbridge3000 provides the flexibility needed.

The HDbridge3000 is modular with hot-swappable cards, allowing you to mix and match cards with different interfaces and resolution as needed. Populate the chassis with up to 72 channels of SD over RF, 24 channels of HD over RF (with the optional IP streams) or 48 channels of H.264 IP streams. Combine multiple HDbridge3000 units to increase the number of channels.

Increase Security

The HDbridge3000 has built-in Emergency Alert System capability. The ZeeVee Emergency Alert System (EAS) can tie into national or local alert systems. ZeeVee processes alerts sent with either EAS-NET or MPEG streaming. When an alert is active, all current audio and video will be interrupted and replaced with the alert.

Configure, Manage, and Monitor with Ease

The HDbridge3000 built-in management software, called Maestro, makes it simple to set up and manage channels, content, and more from anywhere on your network. ZeeVee RF Modulation products autodetect each other and all devices to managed from one user interface without having to log into multiple devices.

Create Custom Channels

On certain media modules for the HDbridge3000, there is an option an extra channel, called ZvShow, that offers looping customized content. ZvShow will play a video file on a separate channel to enable you to use displays to play commercials, showcase menus, or as digital signage.

Control Set-Top Boxes

The HDbridge3000 management software can control DirecTV and other supported receivers directly from the web interface. You can turn the receiver on or off, change channels, as well as edit a channel's on-screen display name.

  • The video encoder/modulator media module is a great choice for capturing and saving your favorite photos, audio and videos recorded by the capture card
  • Embed audio to the chosen video according to your desire
  • This blade device is quick and easy to install so that you can do the work yourself and speed up the department's work
  • This blade device is quick and easy to install so that you can do the work yourself and speed up the department's work
General Information Name: ZeeVee 3KSDI2RI HDbridge3000 HD-SDI RF-IP Media Module Blade, ZeeVee, Inc, ZeeVee Category: ZeeVee, Video Surveillance, Video Encoders Country of Origin: United States. Country of origin is subject to change.

General Information

ADI Part Number 4Z-3KSDI2RI Brand Name ZeeVee Manufacturer ZeeVee, Inc Manufacturer Part Number 3KSDI2RI Product Model 3KSDI2RI Product Name HDb3000 HDSDI RF/IP Media Module Blade Product Series HDbridge Product Type Video Encoder/Modulator Media Module Weight (Approximate) (g) 498.952


Technical Information

Functions Audio Embedding, Video Encoding Video Formats DVB, MPEG-2 Video Signal Format DVB-C, DVB-T, QAM


Interfaces/Ports

Number of SDI Inputs 2 SDI Yes

Physical Characteristics

Depth 11" Depth (mm) 279.4 Form Factor Blade Height 0.9" Height (mm) 21.59 Weight (Approximate) 1.10 lb Width 5" Width (mm) 127
