Williams Sound WIR SYS 90 ADV SoundPlus Advantage Courtroom System (Discontinued)

Availability: Call for Availability
Availability: Direct Ship
Availability: Discontinued
Williams Sound SKU: WIR SYS 90 ADV
No reviews
Price:
$2,984.00 $3,315.00

Description

The black WIR SYS 90 ADV SoundPlus Advantage Courtroom System from Williams Sound includes 1 black WIR TX90 infrared transmitter, 5 RX18 receivers, and 1 CHG 518 five bay charger. The TX90 2-channel IR transmitter combines modulator and emitter technology into a single operating unit, which reduces operating costs and eliminates rack space. The TX90 Transmitter produces a wide-angle infrared signal that concentrates the IR energy efficiently in the listening area. Operating on the 2.3 to 3.8 MHz bandwidth, the TX90 is less susceptible to radio and lighting interference. Each TX90 transmitter can cover up to 28,000 sq. ft (2,600 m2) in a single-channel operation. The coverage area can be easily increased by connecting additional TX9 emitters. A wall/ceiling omnidirectional mount is included, and stand kits are available for portable operation.

  • Modulator/emitter combined into a single operating unit
  • Resistant to high-efficiency lighting interference
  • Meets ADAAG guidelines
  • Made in USA
Model: WIR RX18 Specifications
Weight 2.0 oz (56 g) with battery
Material and Color ABS plastic, Black and Grey
Battery Type, Life BAT AP07D NiMH Battery Pack, 7 hours
Operating Range up to 3,063 sq ft (285 sq m) when used with the TX9 emitter or TX90 transmitter in single-channel mode; up to 1,000 sq ft (93 sq m) when used with the TX75 in single-channel mode
Modulation Frequency 2.3 MHz or 2.8 MHz or stereo
Frequency Response 200 Hz to 8 kHz, ± 5 dB
Signal to Noise Ratio 60 dB at 10 m
Controls Volume control thumbwheel; 3-position selection switch (2.3 MHz, 2.8 MHz, stereo)
Acoustic Output 120 dB MAX SSPL90 with 2 cc coupler
Compatibility Compatible with 2.3 MHz and 2.8 MHz IR transmitters, WIR TX900 and WIR TX925 systems
Battery Charger CHG 518
Power Switch Built into receiver “arms”
Ear pads Uses EAR 240 silicon eartips
Approvals CE, RoHS
Warranty 5 years (90 days on battery)

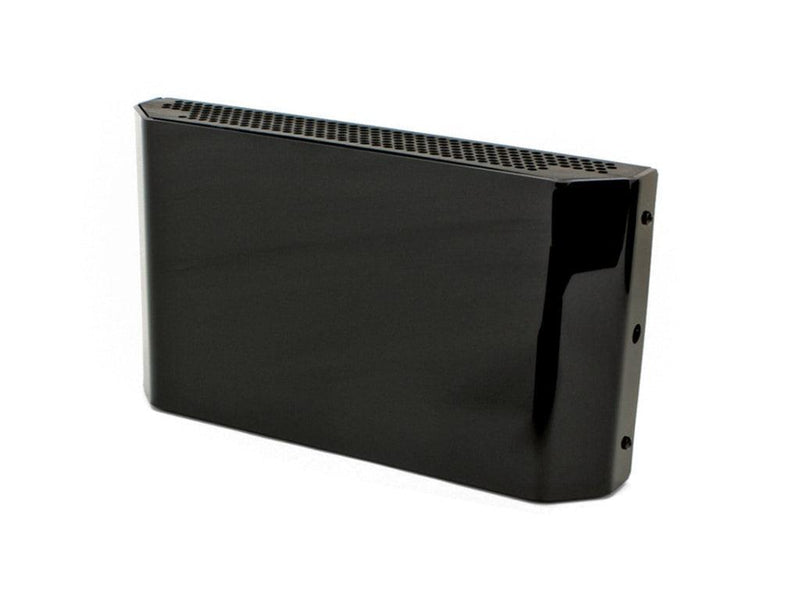

Model: WIR TX90 Specifications
Dimensions, Weight 11.25" W x 6.25" H x 2.125" D (28.6 cm x 15.9 cm x 5.4 cm), 1.8 lbs (0.8 kg)
Color Black with white legends, black acrylic lens (optional white enclosure available)
Power Supply Wall Transformer, 24 VAC, 50-60Hz, 35 VA, 3-pin MOLEX Connector
North America: TFP 010, UL/CSA
Europe: TFP 027-01, 2-pin Schuko plug, CE
UK: TFP 027-02, 3-pin UK plug, CE
Power Cable NEC Class 2 wiring, two-conductor, 18 ga., 200' (61m) max. length
Modulation FM Wideband, +50kHz deviation max., 50uS pre-emphasis
Carrier Frequency Channel A: Selectable, 2.3/2.8 MHz,
Channel B: Selectable, 3.3/3.8 MHz
Emitter IR Power 3.5 watts
Coverage Area 28,000 sq. ft. (2600 sq. m) in single channel mode when using the RX22-4 Receiver
18,000 sq. ft (1700 sq. m) in two channel mode when using the RX22-4 Receiver
11,000 sq. ft (1000 sq. m) in four channel mode when using the RX22-4 Receiver
3,500 sq. ft (325 sq. m) in single channel mode when using the RX15-2 Receiver
3,063 sq. ft (285 sq. m) in single channel mode when using the RX18 Receiver
Signal-to-Noise Ratio >75 dB, +3dB
Frequency Response 80 to 15,000 Hz, electrical response
Total Harmonic Distortion Less than .2%, electrical response at 1kHz
Compression Music preset 1:1, Voice preset 1.5:1, Hearing Assist preset 2:1
Auto Carrier Shut-Off 20 minute timer shuts off carrier when no audio is present
TX90 Bottom View
Power Indicator Red LED
Audio Volume Level Controls CHA and CHB Input Level, press to select, 28 dB adjustable range
Audio Indicators CHA and CHB Audio Level, yellow LED, flash
Carrier LEDs 2 green LED carrier "on" indicators
Phones Output 3.5mm TRS headphone jack. CH A tip, CH B ring on jack, 32 ohm headphone (min)
Application Preset Music, Voice, Hearing Assist. Frequency response; Music: Flat; Voice: Mid-range boost; Hearing Assist: High frequency boost
Tone Control Press to select, 21 dB adjustable range (1 kHz between low boost/hi-cut and low cut/hi boost).
TX90 Back Panel
Power Input 3-Pin Molex, 24 VAC, 50-60 Hz, 35 VA
Audio Input Connector CH A and CH B, 3 wire Phoenix
Input Level Balanced or unbalanced, 316 mVRMS (-10dBV) nominal, 5.7k input impedance; max input (over volume range) -21 to +7 dBV.
Baseband Output BNC, 50 Ω, for use with TX9 only
Baseband Cable RG 58 Coax, BNC connectors, maximum 1000’ (300m) length
Operating Requirements 0-50º C (+32°F to 122°F) ambient temperature, non-condensing, non-corrosive atmosphere
Mounting Kits Wall or Ceiling Mount: BKT 024 Omnidirectional mount
Optional: Tripod Stands: SS-11 or SS-6
Warranty 5 years on transmitter, 90 days on accessories
Approvals CE, FCC, RoHS, WEEE
Compatible Receivers WIR RX22-4 Four-Channel Receiver
WIR RX15-2 Two-Channel Receiver
WIR RX18 Two-Channel Receiver

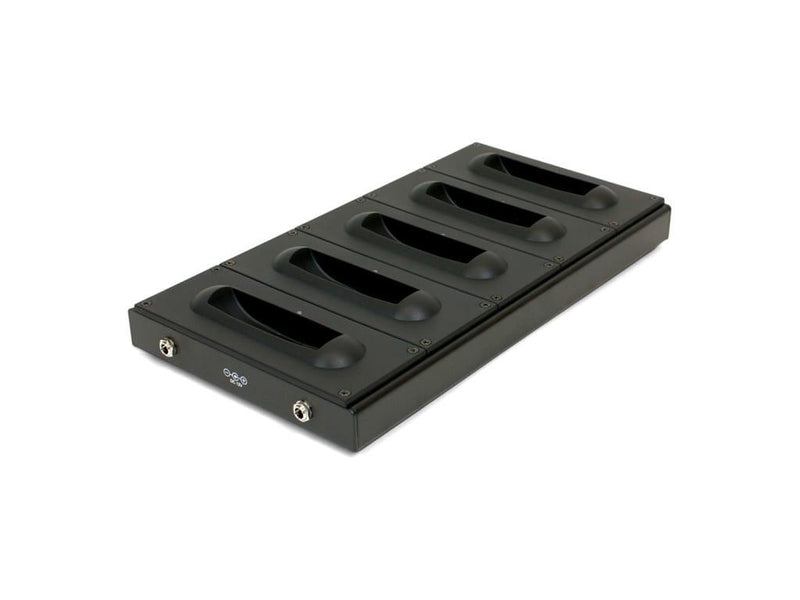

Model CHG 518 Specifications
Dimensions 12”L x 6.25”W x 1.5”H (30.48 cm x 15.875 cm x 3.81 cm)
Weight 1.04 lbs (.47 kg) excluding power supply
Color Black metal and plastic
Power Supply Input 120 VAC
Power Supply 100-240V / 12VDC TFP 043
Unit Capacity 5 Units
Indicators Individual Charging Indicators: Red LEDs
Warranty 1 year (90 day warranty on cables and power supply)
Approvals WEEE, RoHS
