Visionary Solutions PacketAV MV4 IP Multiviewer

Visionary’s MV4 is a high performance IP Multiviewer with integrated scaling and multi-windowing technology.

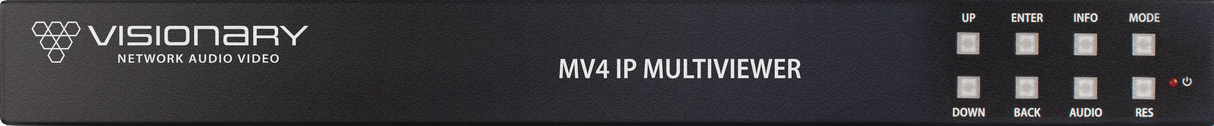

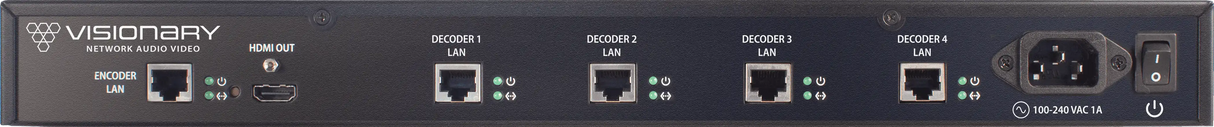

The MV4 IP Multiviewer is a 1RU rack-mountable windowing appliance that connects to a network and accepts up to (4) AV over IP streams from PacketAV Matrix Series ultra-low latency 4K encoders. The MV4 is designed for processing these dynamically switchable input streams simultaneously in a variety of layouts. Each input can be scaled and positioned according to default presets (such as quad view, side-by-side, Full, PiP, PaP, 3+1, etc.) or in any user-defined configuration.

With the MV4 users can mix and match input resolutions, scale any video input up to 4K UHD and route any input to any window, combining up to four sources together into a single 4K image. The combined output video is then encoded into a single stream sent to one or more PacketAV Matrix Series Decoders at resolutions up to 4K. Multiple MV4’s can be cascaded to provide 7×1, 10×1, 13×1, 16×1 or higher capability.

Features

4K Multi-viewer / 1080p Multi-viewer

• Displays four windows up to 4K UHD resolution
• Compatible with all PacketAV Matrix Encoders and Decoders
• Supports simultaneous local HDMI output & Streaming Output (LAN Port)

Seamless Independent Matrix Switching

• Simultaneously view and dynamically switch between four PacketAV input sources
• Un-interrupted screen transitions during source selections in both Full Screen and Multiview modes

Display Modes
Supports Quad (2×2), (PIP) Picture In Picture, (PAP) Picture Aside Picture, Full Screen, and Custom Multiview layout configurations

Cascade multiviewers to display video from any number of video sources on one screen

• Multiple MV4’s can be cascaded to provide 7×1, 10×1, 13×1, 16×1, or higher capability
• PacketAV stream inputs and outputs mean the MV4 does not have to be located near the sources or the displays, which often have space limitations

Adjust output video brightness, contrast, color and sharpness

Auto Video Scaler & Image Rotation

• No need to worry about configuring the source resolution
• 4K in/1080P out, 1080P in/4K out
• Ultra HD/4K Up-scaling
• 4K60-to-1080p Downscaling
• The user can easily Rotate/Scale each input/window image 90° left and right.

Window Transparency & Border

• Transparency/Opacity/Fading – Alpha blending allows you to view content through each other
• Each window can have a border with a selectable bezel width and color

Control

• Window Scale and Position – Supports easy adjustment of window size, position and layout in the Multiview modes via front panel buttons
• Default pre-configured Multiview window presets can be accessed via front panel push-buttons
• *API providing access to the full range of features on the encoders and decoders offered to qualified System Integrators

Dynamic OSD text overlay capabilities

• The ability to overlay dynamic or fixed text on screen enables displaying of alerts, announcements, special instructions, clocks / timers, schedules, and other messaging
• A customized text label can be added for each video window to provide easy input identification

QoS Support

• Quality of Service (QoS) is an advanced feature that prioritizes network traffic resulting in performance improvement for critical network traffic

Supported Resolutions:

• Max Input/Output: 4K30 4:4:4 HDR 8 bit (3840×2160 30Hz) / 1080P60 4:4:4 HDR 12 bit (1920×1080 60Hz)
• 4K30 4:4:4 HDR 8 bit (3840×2160 30Hz) output supports up to 2-windows except in Quad Mode
• Independent Video In to Video Out resolution.
• Note: rotation only supports the same input/output resolutions

Independent Video & Audio

• Listen to any audio source while in quadrant or Multiview modes

Dynamically Optimized (Adaptive) bit-rate compression CODEC w/ built-in Al

• Visionary’s highly efficient video compression codec is a modified full frame encoding that dynamically optimizes for fine lines (computer generated graphics) or motion video by using sophisticated Al to analyze the input source content. Actively matching the level of compression to a scene by leveraging periods of low motion video content reduces the stream’s size and enhances performance – enabling, without compromising image quality, Visually Lossless transmission of computer generated graphics or full-motion video sources
• Adjustable Video Bitrate: (50 – 200 Mbps or Auto [800Mbps max])

Enterprise Level Security -AES Encryption, 802.1x, HTTPS, SSH

• Enterprise applications demand a secure Network AV solution
  • AES Stream Encryption – The Advanced Encryption Standard, or AES, is a worldwide standard and was adopted as the standard encryption algorithm by the U.S. government for encrypting classified information
  • HTTPS Secure API – Using secure SSL/TLS communications
    HTTPS provides integrity that a client is communicating with the real API and receiving back authentic data. It also ensures privacy for applications and users using the API
  • 802.1x Authentication for Network access control – 802.1X provides a secure authentication mechanism for any device trying to access a network
  • SSH Network Protocol – SSH is a network protocol used to remotely access and manage a device through command line communications. The key difference between Telnet (used by other AV over IP manufacturers) and SSH is that SSH uses encryption, which means that all data transmitted over a network is secure

LLDP Support

• Link Layer Discovery Protocol (LLDP) is a protocol used by network devices for advertising their identity, capabilities, and neighbors on a local area network based on IEEE 802 technology
• Allows for dynamic control of endpoints based on automatic discovery of physical location

1U tall rack-mountable enclosure, rack ears included

HDCP 2.2 Compliant
