Vaddio ProductionVIEW – 7-Camera PTZ Control Console (999-5700-000)

Product Overview

The Vaddio ProductionVIEW Precision Camera Control (model 999-5700-000) is a dedicated hardware control console engineered for broadcast and production environments requiring centralized PTZ camera management. Designed to operate up to 7 discrete cameras simultaneously via RS-232, it delivers direct hardware control without the latency or complexity of software-based systems. The console integrates a built-in Camera Control Unit (CCU) that handles white balance, iris, and gain adjustments from a single operator position. At a sale price of $2,688.30, it represents a professional-grade solution for houses of worship, broadcast studios, lecture capture facilities, and corporate production rooms.

Product Description

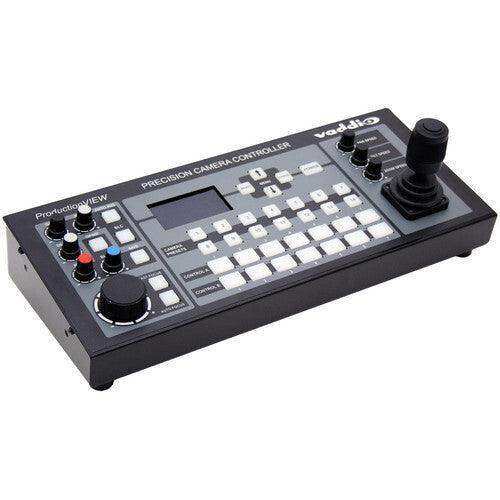

The ProductionVIEW 999-5700-000 gives operators direct, tactile control over an entire multi-camera PTZ array from one console. Seven RJ45 ports carry RS-232 signals to each connected camera, and the console's camera auto-sensing feature identifies connected units automatically at startup, reducing configuration time on installation day. Each of the seven camera channels supports 14 individually stored presets—98 presets in total—all retained internally in the console without dependency on an external PC or control system.

At the center of the control surface is a broadcast-quality 3-axis Hall-effect PTZ joystick. Hall-effect sensors use magnetic fields rather than mechanical contacts, which means the joystick maintains precision and consistent feel across years of daily production use without the drift or wear typical of potentiometer-based joysticks. Pan, tilt, and zoom axes respond proportionally to joystick deflection, giving camera operators the smooth, graduated moves expected in live broadcast.

The integrated CCU section provides one-push white balance (OPWB), auto white balance (AWB), and auto iris control alongside dedicated red and blue gain trim knobs for manual color correction. A separate large-diameter focus wheel on the console surface gives precise manual focus authority when autofocus is not appropriate—common in theatrical and studio lighting conditions where autofocus systems hunt.

Dual bus mode allows the operator to manage two independent program feeds from a single console, and the RS-232 output port (9-pin D-Sub) plus 7-pin Euroblock tally outputs allow the ProductionVIEW to send control and tally signals to an external video switcher or production mixer. Two RJ45 sync I/O ports support genlock or sync distribution in multi-unit installations. System status and CCU parameters are displayed on an 8-line LCD menu, keeping the operator informed without requiring a separate monitor. The unit is powered by an 18 VDC, 2.78 A barrel connector supply included with the unit.

Creation Networks stocks the Vaddio 999-5700-000 and ships across the continental United States. For integration quotes, system design support, or volume pricing, contact the Creation Networks team at creationnetworks.net.

Key Features

• 7-Camera RS-232 Control via RJ45 — Seven dedicated RJ45 ports deliver independent RS-232 control to each connected PTZ camera, supporting full multi-camera production workflows without an external control processor.
• Built-in CCU (Camera Control Unit) — Integrated CCU provides OPWB, AWB, auto iris, and manual red/blue gain adjustments directly from the console surface, eliminating the need for a separate camera control unit rack unit.
• Camera Auto-Sensing — The console automatically identifies connected cameras at startup, reducing manual configuration during installation and system commissioning.
• 98 Internally Stored Presets — 14 presets per camera across all 7 channels (98 total) are stored inside the console, not on an external device, ensuring reliable recall during live production.
• Broadcast-Quality Hall-Effect PTZ Joystick — 3-axis Hall-effect joystick delivers smooth, proportional pan/tilt/zoom control with long-term durability and no mechanical contact wear.
• Large Manual Focus Wheel — Dedicated focus wheel provides fast, accurate manual focus control independent of PTZ joystick operation.
• Dual Bus Mode — Allows simultaneous management of two separate program outputs from one console, suited to multi-feed or confidence-monitoring production setups.
• External Switcher/Mixer Control — RS-232 (9-pin D-Sub) output and 7-pin Euroblock tally outputs allow the console to drive external video switchers or production mixers, consolidating control to one operator position.
• Sync I/O — Two RJ45 sync input/output ports support genlock or house sync distribution in larger multi-unit installations.
• 8-Line LCD Status Display — Onboard LCD shows CCU parameters, camera status, gain, and iris settings at a glance without requiring an attached monitor.

Typical Applications

• Houses of Worship — Central PTZ camera control for multi-camera sanctuary productions, livestreams, and IMAG systems where a single operator manages the full camera array.
• Broadcast Studios — Professional broadcast environments requiring tactile hardware control, dual bus switching, and tally integration with production switchers.
• University Lecture Capture and Distance Learning — Multi-camera lecture hall installations where automated presets cover standard shot positions and operators can override with the joystick as needed.
• Corporate AV and Executive Briefing Centers — Boardrooms and executive production suites requiring professional camera control for videoconferencing, streaming, and recorded content.
• Government and Legislative Chambers — Fixed-installation camera control for council chambers, courtrooms, and legislative broadcast applications with strict preset-recall requirements.
• Sports and Event Production — Live event environments where multiple PTZ cameras cover different angles and rapid preset recall is essential during fast-paced action.
• Performing Arts Venues — Theater and auditorium productions where manual focus control and smooth PTZ moves are required for cinematic-quality camera work.

Technical Specifications

Frequently Asked Questions

Which Vaddio cameras are compatible with the ProductionVIEW 999-5700-000?

The ProductionVIEW 999-5700-000 is designed for use with Vaddio RS-232-controlled PTZ cameras, including the RoboSHOT and WallVIEW series. The console's camera auto-sensing feature detects connected camera models automatically. For a current compatibility matrix or to confirm a specific camera model, contact Creation Networks.

Can the console control cameras from manufacturers other than Vaddio?

The 999-5700-000 is optimized for Vaddio RS-232 camera protocols. Third-party PTZ cameras using VISCA or Pelco-D over RS-232 may not be compatible without a protocol converter. Verify RS-232 protocol compatibility before specifying this console for non-Vaddio cameras.

What does dual bus mode do?

Dual bus mode allows the operator to manage two separate program outputs simultaneously from one console. This is useful in productions where two independent feeds—such as a main program feed and a confidence or overflow monitor feed—need to be controlled from a single operator position without switching between modes.

Does the ProductionVIEW 999-5700-000 require a PC or network connection to operate?

No. The console operates as a standalone hardware controller. All 98 presets are stored internally, and RS-232 control signals go directly from the console to each camera via the RJ45 ports. No PC, network switch, or software application is required for basic camera control operation.

How does the Hall-effect joystick differ from a standard potentiometer joystick?

Hall-effect sensors use a contactless magnetic mechanism, meaning there are no physical wiper contacts to wear down over time. In daily production use—where joysticks are operated hundreds of times per session—Hall-effect designs maintain consistent center-null accuracy and smooth proportional response far longer than conventional potentiometer joysticks, which can develop dead zones and drift as contacts wear.

Can the ProductionVIEW send tally signals to a video switcher?

Yes. The console includes a 7-pin Euroblock tally output and a 9-pin D-Sub RS-232 port for external switcher or mixer control. These outputs allow the ProductionVIEW to pass tally status to compatible production switchers so on-air indicators can be triggered from the camera control console.

What is the power requirement for the 999-5700-000?

The unit requires 18 VDC at 2.78 A via a barrel/coaxial connector. A compatible power supply is included with the unit. Verify rack or table power availability at the operator position during installation planning.

Is the ProductionVIEW 999-5700-000 rack-mountable?

The console is designed as a desktop/tabletop operator surface at 16 x 7 x 3.8 inches. It is not a standard 1U or 2U rack unit. For rack integration, a suitable rack shelf or custom rack drawer would be required. Contact Creation Networks for integration design recommendations.
