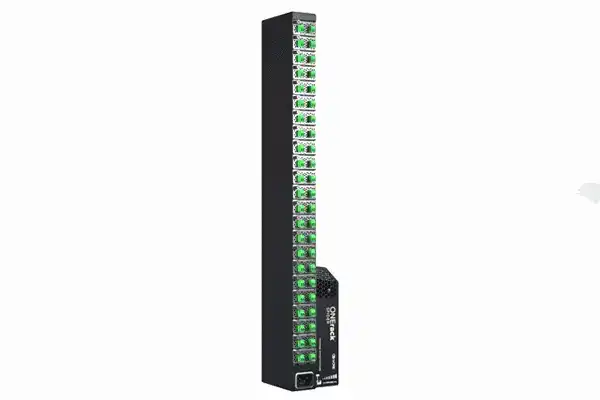

tvONE 1RK-SPDR-STRIP-23 – ONErack Spider Vertical PSU Strip 23-Slot
tvONE 1RK-SPDR-STRIP-23 – ONErack Spider Vertical PSU Strip 23-Slot is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
tvONE 1RK-SPDR-STRIP-23 – ONErack Spider Vertical PSU Strip 23-Slot
Product Overview
The tvONE 1RK-SPDR-STRIP-23 ONErack Spider Vertical PSU Strip is a high-capacity, multi-voltage DC power distribution strip designed for rear or side mounting inside standard equipment racks. It eliminates DC wall wart adapters by centralizing power delivery for up to 23 modules in a single, organized strip format. With 14 voltage modules included and support for 7 selectable output voltages, it provides flexible, reliable power for a wide range of DC-powered AV devices from any manufacturer. This solution is engineered for mission-critical AV installations where power reliability and rack cleanliness are essential.
Product Description
The 1RK-SPDR-STRIP-23 is the large-capacity vertical strip variant of the tvONE ONErack Spider multi-voltage power system. It mounts at the rear or side of a rack enclosure, occupying zero front rack space while delivering DC power to AV devices installed throughout the rack. The strip features 23 module slots, and ships with 14 voltage modules pre-installed. Each module is independently selectable across 7 voltage outputs: 5V, 7.5V, 9V, 12V, 13.5V, 18V, and 24V — making it compatible with virtually any DC-powered AV peripheral from any manufacturer. Built-in surge suppression and overload protection safeguard connected devices. This product pairs with the ONErack chassis system as well as functioning as a standalone power strip solution when front-rack space is unavailable or needs to be preserved. It is UL compliant and suited for healthcare, higher-education, broadcast, government, and control room environments. The ONErack Spider system is supported by the ONErack Alliance, a growing group of AV manufacturers who formally approve ONErack and ONErack Spider as an accepted alternative to their supplied power adapters. Installations using 1RK-SPDR-STRIP-23 benefit from cleaner cable management, reduced rack heat from wall warts, and centralized power control. Available from Creation Networks with expert AV integration support.
Key Features
- 23 Module Slots — Maximum-capacity vertical strip format for large rack deployments with many DC-powered devices.
- 14 Voltage Modules Included — Ships ready to power immediately with 14 pre-installed voltage selector modules.
- 7 Selectable Output Voltages — Each module independently configurable to 5V, 7.5V, 9V, 12V, 13.5V, 18V, or 24V.
- Zero Front Rack Space — Mounts vertically at the rear or side of the rack, preserving all front RU space for AV equipment.
- Surge Suppression & Overload Protection — Protects connected devices from voltage spikes and power faults.
- Universal DC Compatibility — Powers DC devices from any manufacturer, replacing wall wart adapters across the rack.
- UL Compliant — Meets UL safety standards for professional installation environments.
- ONErack Alliance Approved — Accepted by participating manufacturers as an approved alternative to supplied power adapters.
Typical Applications
- Large conference room AV racks with multiple DC-powered devices
- Broadcast studio racks requiring clean rear-mount power distribution
- Government and enterprise AV installations with mission-critical uptime requirements
- House of worship production racks with high device density
- Healthcare and higher-education AV control rooms
- Any rack where front RU space must be fully preserved for equipment
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 1RK-SPDR-STRIP-23 |
| Module Slots | 23 |
| Voltage Modules Included | 14 |
| Output Voltages | 5V, 7.5V, 9V, 12V, 13.5V, 18V, 24V |
| Mount Format | Vertical rear/side strip (zero front rack space) |
| Protection | Surge suppression, overload protection |
| Compliance | UL |
| Compatible System | tvONE ONErack chassis system |
Frequently Asked Questions
What is the difference between the 1RK-SPDR-STRIP-23 and the 1RK-SPDR-HALF-7?
The 1RK-SPDR-STRIP-23 is the full-size vertical strip with 23 module slots and mounts at the rear or side of the rack. The 1RK-SPDR-HALF-7 is a half-rack 1RU unit with 7 output slots that installs in the front of the rack. The Strip-23 is suited to high-density installations where front rack space must be preserved.
Does this product require the ONErack chassis?
No. The ONErack Spider Vertical Strip operates independently of the ONErack chassis and can be used as a standalone rear-mount power distribution strip in any standard rack.
How many voltage modules are included, and can I add more?
The unit ships with 14 voltage modules installed across the 23 available slots. Additional voltage modules can be purchased separately to fill the remaining slots.
Can I mix different voltages in the same strip?
Yes. Each module slot is independently configurable, so you can run multiple different voltages simultaneously across the 23 slots to power a variety of DC devices.
What devices are compatible with this PSU strip?
Any DC-powered AV device operating at 5V, 7.5V, 9V, 12V, 13.5V, 18V, or 24V is compatible. ONErack Alliance member manufacturers have formally approved the Spider as an accepted replacement for their supplied power adapters.
Is the 1RK-SPDR-STRIP-23 suitable for mission-critical installations?
Yes. Built-in surge suppression and overload protection make it appropriate for healthcare, broadcast, government, and other mission-critical AV environments.
Where can I purchase the tvONE 1RK-SPDR-STRIP-23?
The 1RK-SPDR-STRIP-23 is available directly from Creation Networks, an authorized tvONE dealer specializing in professional AV integration.
