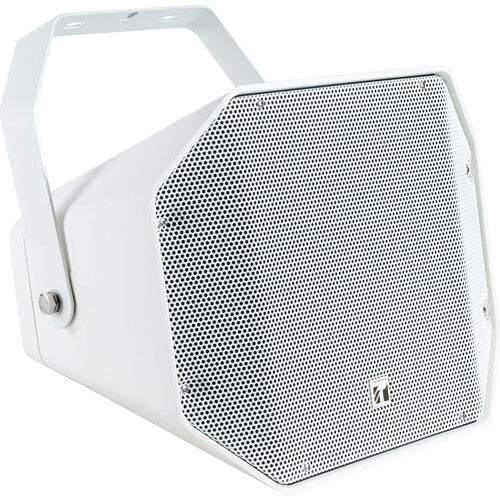

TOA Electronics 2-Way Weatherproof Coax Music Horn Speaker

TOA SKU: CS-761W
No reviews
Color: White
Price:
$378.00 $467.00

Description

CS-761 is a 2-way coaxial speaker system designed for high efficiency, high power input handling capacity, and is a highly intelligible speaker suited for public address announcements and BGM application in an outdoor environment.

  • highly intelligible broadcasts that can be used for music.
  • IP66 rating: Ideal for outdoor applications within the rated operating temperature specifications.
  • 2-way coaxial speaker construction with 16 cm cone speaker and 2.5 cm tweeter enabling.
  • Wide frequency response 100 Hz - 20 kHz allowing various audio applications.
  • High-powered 60 W rated input enabling high-quality broadcast in a wide area.
  • An elegant enclosure formed of straight lines suitable for any installation requirements.
Rated Input 60 W Rated Impedance 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W)
70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W) Sensitivity 100 dB (1 W, 1 m) (1 kHz – 10 kHz, pink noise) Frequency Response 100 Hz – 20 kHz Directivity Angle Horizontal: 90°, Vertical: 80° Speaker Component Low frequency: 16 cm (6") cone-type, High frequency: 2.5 cm (1") tweeter Connection Speaker cable (Hot: Black, Com: White) Dust/Water Protection IP66 Operating Temperature –10 to +50 °C (14 to 122 °F) Finish Enclosure:ABS resin, black (RAL 9011 equivalent),paint
Punched net:Steel plate, black (RAL 9011 equivalent),paint
Bracket:Stainless steel, black (RAL 9011 equivalent), powder coating
 Dimensions 388 (w) x 310 (h) x 367 (d) mm (15.28" x 12.2" x 14.45") Weight 7.6 kg (16.75 lb)
