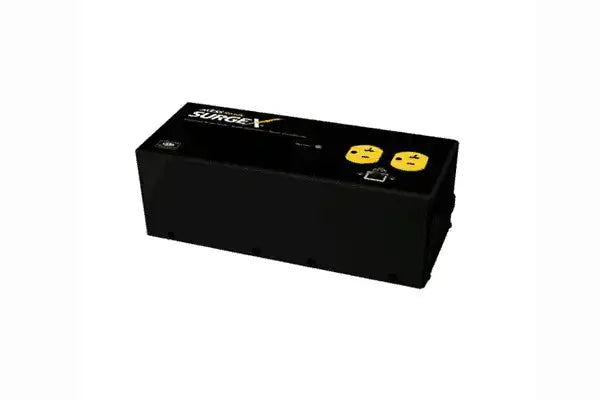

The SA-20-AR shall be a compact standalone unit in a magnetic shielding steel enclosure. It shall operate from 120 volts AC and have a 9-foot, grounded 3-wire #12 line cord. There shall be 2 grounded AC receptacles. Overall dimensions shall be 4.0" H x 10.2" W x 4.2" D. Weight shall be 8.5 pounds. The SA-20-AR shall have a load rating of 20 amps at 120 volts, a self-test circuit with visual indicator, and provide EMI/RFI filtering. It shall have remote control, scheduling, and AutoPing functions via wired Ethernet HTTP, Telnet, and DxP protocols. It shall withstand at least 1000 occurrences of surge pulse voltages up to 6000 volts.
Technical Description
| Description |
Axess Ready IP Enabled Standalone Surge Eliminator |
| Load Rating |
20 Amps at 120 Volts |
| Power Requirement (no load) |
10 watts |
| Surge Let-Through Voltage (6000-volt surge) |
0 volts |
| UL 1449 Adjunct Classification Test Results |
1000 surges, 6000 Volts, 3000 Amps, B3 pulse |
| Measured suppressed voltage |
170 Volts, no failures |
| Federal Guidelines |
Grade A, Class 1, Mode 1 (CID A-A-55818) |
| Maximum Applied Surge Pulse Joule Rating |
Unlimited, due to current limiting (8 x 20 µs) |
| EMI/RFI Filter, Normal Mode (50-ohm load) |
40 dB at 100 kHz; 50 dB at 300 kHz; 50 dB at 3 MHz; 50 dB at 30 MHz |
| EMI/RFI Filter, Common Mode (50-ohm load) |
18 dB at 300 kHz; 30 dB at 1 MHz; 50 dB at 5 MHz; 50 dB at 20 MHz |
| Maximum Applied Surge Voltage |
6000 Volts |
| Dimensions |
4" H x 10.2" W x 4.2" D (10.2 x 25.9 x 10.7 cm) |
| Weight |
8.5 lbs (3.8 kg) |
| Temperature Range |
5° to 35° C |
| Humidity Range |
5% to 95% R.H., non-condensing |
| Agency Listings |
ETL and cETL certified to (UL 1449; CSA C22.2 No.8-M1986, R2000)
UL 1283 |
