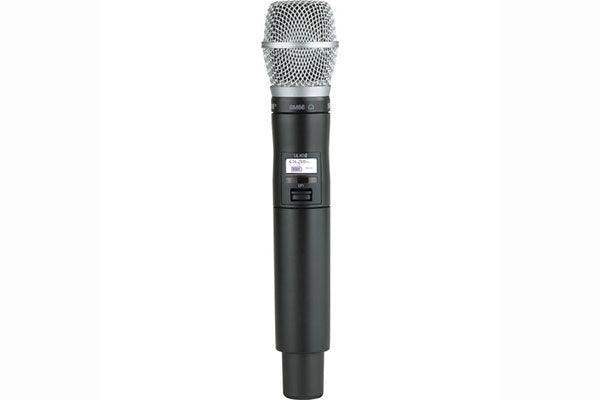

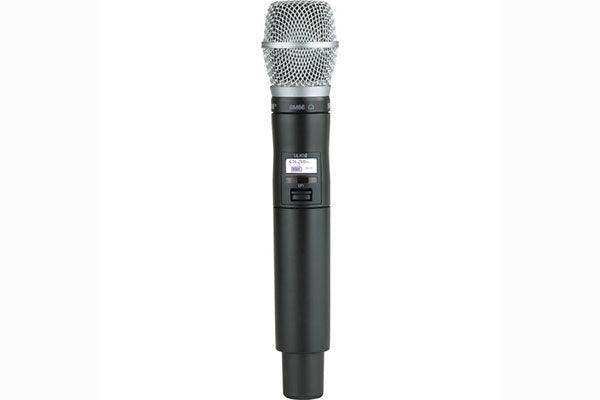

Shure ULXD2/SM86 Digital Handheld Wireless Microphone Transmitter with SM86 Capsule

Product Overview

The Shure ULXD2/SM86 is a professional digital handheld wireless microphone transmitter pairing the ULX-D platform with the SM86 cardioid condenser capsule, well-regarded for clear, natural vocal reproduction in live sound reinforcement and commercial AV applications. Priced as an accessible entry into the ULX-D condenser transmitter range, it provides 24-bit/48 kHz digital audio, AES 256-bit encryption, and multi-channel RF coordination capability for integration into installed commercial audio systems.

Product Description

The SM86 cardioid condenser capsule delivers extended high-frequency response and natural sound reproduction suited for vocal and speech reinforcement in conference rooms, houses of worship, and commercial meeting spaces. Its fixed cardioid polar pattern provides good off-axis rejection while maintaining warmth and presence on close-miked vocals. The ULXD2 transmitter body features lightweight aluminum construction, an integrated antenna, and Shure Gain Ranging technology for automatic dynamic range optimization in the field. AES 256-bit encryption secures audio transmission in commercial and government environments. The optional SB900C rechargeable battery provides over 9 hours of runtime with LCD metering. Pair with the Shure ULXD4 Single-Channel Wireless Receiver or ULXD4D Dual-Channel Receiver to complete the ULX-D wireless system.

Key Features

• SM86 Cardioid Condenser Capsule — Provides clear, extended high-frequency vocal reproduction with natural sound character suited for speech reinforcement and live vocal performance applications.
• AES 256-Bit Encryption — Secures digital audio transmission for corporate, government, and commercial AV environments where RF security is required.
• Shure Gain Ranging Technology — Automatically optimizes dynamic range for any input source, eliminating manual transmitter gain adjustments and reducing setup time.
• 9+ Hour Rechargeable Battery — Optional SB900C lithium-ion battery delivers over 9 hours of runtime with zero memory effect and precision time metering on the backlit LCD.
• Rugged Aluminum Body with Integrated Antenna — Lightweight and durable construction for commercial installation, touring, and rental environments.
• Field-Replaceable Capsule — The ULXD2 body accepts compatible Shure RPW wireless cartridges, including the RPW114 SM86 replacement capsule for long-term serviceability.
• ULX-D and QLX-D Compatibility — Works with ULXD4, ULXD4D, ULXD4Q, and QLXD4 receivers for single and multi-channel wireless system configurations.
• Drop-In Charging Support — External charging contacts enable docked charging via SBC200, SBC220, and SBRC charging systems for fleet management in multi-unit commercial deployments.

Typical Applications

• House of worship vocal and speech reinforcement
• Corporate conference room and meeting space presentations
• Government and municipal meeting facilities
• Commercial multi-purpose room and auditorium events
• Training rooms and all-hands presentations
• Live sound reinforcement for performing arts facilities

Technical Specifications

Frequently Asked Questions

Q: What receivers are compatible with the ULXD2/SM86?
A: This transmitter is compatible with ULX-D receivers (ULXD4, ULXD4D, ULXD4Q) and the QLX-D receiver (QLXD4). Frequency bands must match between transmitter and receiver when purchasing separately.

Q: How does the SM86 capsule compare to the Beta 87A or Beta 87C on the ULXD2 platform?
A: The SM86 is a cardioid condenser with a natural, balanced frequency response. The Beta 87A is supercardioid with a more pronounced presence peak and tighter off-axis rejection. The Beta 87C is cardioid with characteristics similar to the SM86 but with Shure Beta series voicing.

Q: Does this system support Wireless Workbench and network control?
A: Yes. When paired with a networked ULXD4 or ULXD4D receiver, the system integrates with Wireless Workbench 6 and supports AMX/Crestron control for enterprise AV management.

Q: What warranty applies to this product?
A: Shure provides a two-year limited warranty on the ULXD2/SM86. Contact Creation Networks for purchasing support or Shure directly for warranty service.
