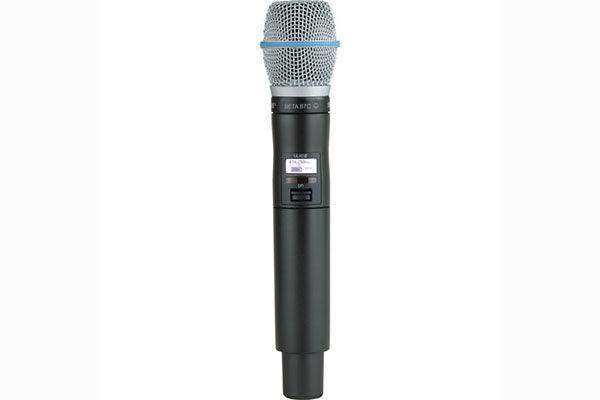

The Shure ULXD2/B87C is a digital handheld wireless microphone transmitter compatible with ULX-D and QLX-D receivers. It comes equipped with the Beta 87C cardioid condenser capsule designed to deliver an extremely smooth frequency response with extended high end for vocal performers and presenters. The capsule features a cardioid pick-up pattern that reduces rear and off-axis background noise, helping to control feedback.
With a rugged, yet lightweight aluminum housing, the ULXD2/B87C transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.
Clear, Accurate Audio with Interchangeable Capsule
The unit delivers clear, reliable 24-bit/48 kHz digital audio over its entire 330' range, great for live performances and presentations in music venues, houses of worship, and conference spaces.
The Beta 87C cardioid condenser capsule offers a gradual presence rise and controlled proximity effect tailored for clear, intelligible vocals.
The interchangeable capsule design allows you to replace the Beta 87C capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including SM58, SM86, SM87A, Beta 58A, Beta 87A, KSM9 capsules, and more.
User-Friendly Features in a Rugged Housing
The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
Shure Proprietary Gain Ranging automatically adjusts the mic input level, eliminating the need for transmitter gain adjustments.
The power button conveniently doubles as mute switch, while preserving RF lock.
Frequency and power lockout functions prevent accidental or unauthorized changes during events.
A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.
1/10/20mW Variable selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
Convenient Power Management Options
Operates for up to 11 hours on two AA batteries.
Optional Shure SB900A lithium-ion rechargeable battery pack offers intelligent power management with over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect.
External charging contacts allow for docked battery charging with the SBC200 dual-docking charger (available separately).
The networkable SBC220 charger (available separately) allows for remote power monitoring via Shure’s Wireless Workbench software.
- For ULX-D and QLX-D Digital Systems
- Beta 87C Cardioid Condenser Mic
- Interchangeable Capsule Design
- Automatic Gain Adjustment
- 1/10/20mW Variable RF Output Power
- Mute Mode, Backlit LCD
- Secure AES-256 Encryption
- Networked Intelligent Charging
- 12 Hr with SB900A Rechargeable Battery
Shure ULXD2 Specs
|Wireless Technology||Digital UHF|
|RF Frequency Band||
|RF Bandwidth||64 MHz|
|Frequency Step Size||25 kHz|
|Max Operating Range||328.1' / 100 m|
|Latency||< 2.9 ms|
|RF Output Power||1 / 10 / 20 mW (Switchable)|
|Gain Range||0 to 21 dB (3 dB Steps)|
|Antenna||1 x Internal Single-Band Helical|
|Battery Type||2 x AA (Included)
1 x Shure SB900A (Not Included, Replaceable)
|Approx. Battery Life||Med.:
11 Hours (Alkaline)
12 Hours (Lithium Shure SB900A)
|Display & Indicators||1 x Backlit LCD (Battery Status, Channel, Group, Mute, RF Output Power, Sync)|
|Storage Temperature||-20 to 165°F / -28 to 73°C|
|Dimensions||10.1 x 2" / 256 x 51 mm|
|Weight||12 oz / 340 g|
|Frequency Range||50 Hz to 16 kHz|
|SNR||Cardioid: 70.5 dB A-Weighted|
|Equivalent Noise Level||22 dB A-Weighted|
|Maximum SPL||139 dB SPL|
|Sensitivity||-51 dBV/Pa at 1 kHz|
|Dynamic Range||117 dB|
|Package Weight||1.44 lb|
|Box Dimensions (LxWxH)||12.75 x 4.9 x 3.45"|
