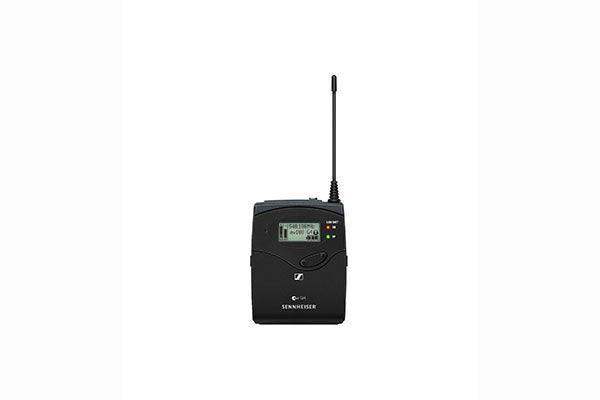

Sennheiser's EK100-G4 is a portable camera-shoe-mountable evolution wireless G4-series microphone receiver that continues the evolution wireless G-series tradition of offering adaptive-diversity technology which provides excellent reception at all times. Like the previous generation, it's designed to securely attach to a camera's shoe-mount for convenient access. It can also synchronize to a G4 transmitter with a simple push of a button. The unit is compatible with the optional DC2 external adapter (sold separately) for extended use without batteries where a 12VDC source is available. And further, it's compatible with all previous evolution G-Series systems.
Documentary • Mobile Journalism • Audio for Video applications
- EK100G4 camera receiver
- Compatible with all previous evolution wireless G-Series systems
- Dimensions: 3.23" x 2.52" x 0.94" (82 x 64 x 24mm)
Comes in 3 models which each operate in one of these frequency bands (please specify when ordering):
- (2) AA batteries
- Enhanced frequency bank system with up to 12 compatible frequencies
- Compander: Sennheiser HDX
- A1 (470 - 516MHz)
- CA2 camera adapter
- Adaptive-diversity reception for high reception quality
- Total Harmonic Distortion (THD): ≤ 0.9%
- A (516 - 558MHz)
- CL1 3.5mm jack cable
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Weight: 0.35lbs. (160g)
- G (566 - 608MHz)
- CL100 XLR to 3.5mm jack adapter cable
- Automatic frequency scan feature searches for available frequencies
- Audio Output: 3.5mm Jack: 12dBu (mono, unbalanced)
- Quick guide
- Enhanced AF frequency range
- Signal-to-noise ratio: ≥ 110dBA
- Safety guide
- Wireless synchronization of transmitters via infrared interface
- Switching Bandwidth: up to 42MHz
- Manufacturer declaration sheet
- User-friendly menu operation with more control options
- Peak Deviation: ±48kHz
- Illuminated graphic display
- Nominal deviation: ±24kHz
- Auto-Lock function avoids accidental changing of settings
- Operating Time: Typically 8 hrs
- HDX compander for crystal-clear sound
- Modulation: Wideband FM
- Power Supply: 2 AA Batteries
- Receiver features battery indication in 4 steps
- Adjacent Channel Rejection: ≥ 65dB
- Contacts for recharging BA2015 accupack directly in the receiver
- Intermodulation Attenuation: ≥ 65dB
- Wide range of accessories adapts the system to any requirement
- Powering: 3V Battery / 2.4V Rechargeable Battery
- Sturdy metal housing
- RF Sensitivity: < 1.6μV for 52dBA eff S/N
- 42MHz bandwidth: 1680 tune-able UHF frequencies for interference-free reception
