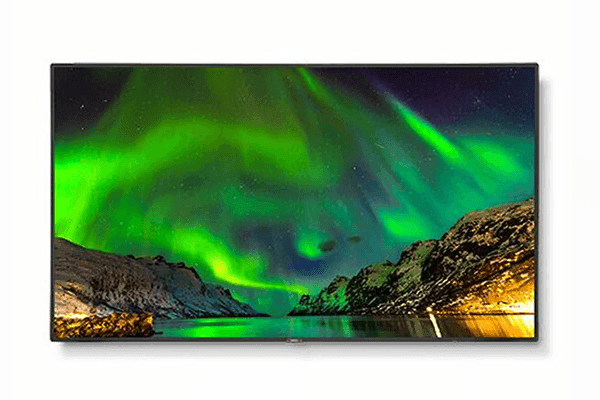

NEC C861Q 86" UHD Commercial Display

Spec Sheet

NEC C861Q 86" UHD Commercial Display

Overview

With industry leading experience in superior design and customer focus, the 86" NEC C861Q allows for clear, detailed imagery for unobtrusive digital signage. New contemporary and slim mechanical design with focused aesthetics allows for the smooth and stylistic integration into any type of environment while the full metal chassis coupled with real-time temperature sensors and integrated cooling fans maintain the professional quality necessary for commercial environments. With a wide range of the latest connectivity interfaces including HDMI 2.0 x3 and DisplayPort 1.2 x2/daisy chain option, these displays offer the future-proofing necessary for the investment. These displays also include expandability options such as the Open Pluggable Specification (OPS) and Raspberry Pi Compute Module slots for source integration directly into the display. The C861Q series boasts a 350 cd/m² brightness along with a new anti-glare surface that allows for efficient readability when ambient light is present and is ideal for 24/7 signage in Retail environments as well as when used for presentation purposes in Corporate or Educational institutions.

Key Features

• 4K UHD (3840 x 2160) Native Resolution
• 60 Hz Refresh Rate
• 1200:1 Typical Contrast Ratio
• Built-In Ethernet Connectivity
• Specification Brochure
• User Manuals

Additional Features

• 350 cd/m² brightness combined with 4K UHD resolution and an anti-reflective screen surface help provide clear image visibility
• Localized dimming
• Ethernet and RS-232 control and communication
• USB upstream/downstream
• CEC communication
• HDCP 1.4 and 2.2 support via HDMI; HDCP 1.3 support via DisplayPort
• Firmware updates via USB/network
• Image flip
• TileMatrix (10 x 10)
• Carbon footprint meter
• 24/7 scheduler with real time clock
• Holiday settings
• Screensaver function
• Multi-picture mode
• Metal rear cabinet
• Carrying handles
• Variable picture modes
• Noise reduction & adaptive contrast
• Input labeling
• Backlight adjust
• Aspect ratio control
• Powered USB
• LED edge-lit backlighting
• Auto ID/IP address control
• Crestron RoomView, AMX Beacon, PJLink support
• Optional human sensor
