EXTENDER * VIRTUAL MATRIX * VIDEO WALL PROCESSOR * KVM EXTENDER

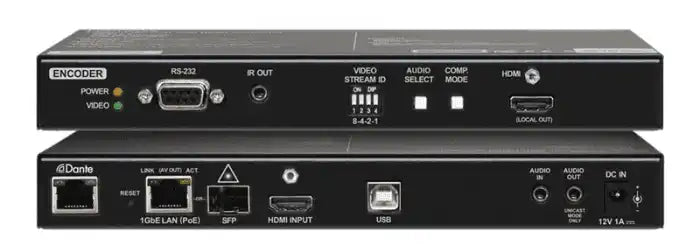

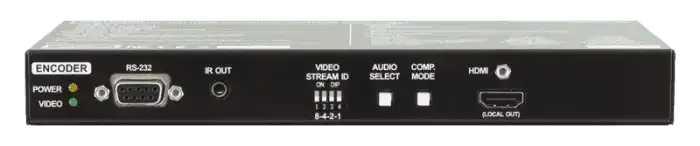

VINX-120AP-HDMI-ENC-DNT features Dante audio capability and also offers independent AES67 support. This allows operators to easily adopt to any scenario where audio signal management is in focus, besides of video capabilities.
Video signals can be expanded from a simple point-to-point application to unlimited endpoints for ultimate virtual matrix switching, digital signage and signal extension. The extenders include our Advanced EDID Management system, are HDCP compliant and decoders are capable of scaling the video signal up to the maximum supported resolution of 4K UHD @ 30 Hz. RS-232 and IR control channels are also supported, the built-in USB ports support KVM function and can handle USB 2.0 mass storage as well.
These models feature options for fiber optical transmission in the form of an SFP port, audio embedding and de-embedding, and also return audio features. These VINX devices can be powered remotely by PoE, PoE+ and UPoE. Contrary to common belief, PoE systems, like VINX, can run on much less power than PoE+ devices, contributing to carbon footprint reduction and energy saving. The VINX-120AP-HDMI-ENC-DNT features a local HDMI output port for monitoring.
One of the most popular unique features of VINX is the Video Wall processing, significantly reducing the time needed to install a video wall compared to other systems. The feature options include gap and bezel adjustment, which can be performed in batches.
DANTE/AES67 AUDIO CAPABILITY

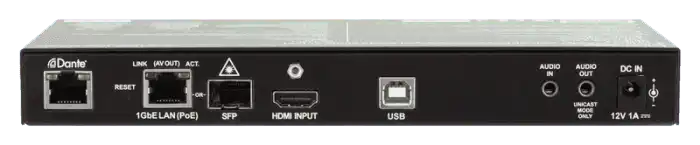

A dedicated RJ-45 port in the new VINX device carries two-fold advantage. First, it allows immediate audio signal de-embedding from the HDMI source that can be then directly sent to an external, Dante/AES67 capable audio system and second, the additional RJ-45 interface has its own MAC address separate from the video port, therefore eliminate relevant, IT security related concerns.
The efficient design of all VINX models allows passive, fanless cooling. Unlike other third party models in this product category, VINX have noiseless operation, fitting even the most silent application environments.
BUILT-IN CROSSPOINT VIEW
VINX series also features crosspoint view: available in both the free Lightware Device Controller (LDC) management software and the built-in web in the devices, the crosspoint view shows the available input and output ports of all connected encoder and decoder units, and allows switching the signals across them. The signal can also be switched to a video wall output assembled from several VINX units and acting as a single display sink. A special keyboard combination can be linked with various sources to switch signals.
SMART BANDWIDTH MANAGEMENT
The built-in, selectable Video and Graphic Modes optimize streaming and compression to match the transferred media. The Variable Bitrate feature provides an even more accurate adjustment option for smart bandwidth management, adjustable between 10 Mbps and 800 Mbps.
- HDMI Stereo embedded Audio can be de-embedded and converted to 2 channel Dante/AES67 streams
- Audio de-embedding to the dedicated RJ45 port connector complying with the Dante/AES67 standards
- USB 1.1 K+M (HID) extension
- USB 2.0 MSC (Mass Storage Class) extension
- Compact and silent design
- Audio embedding (or replace original audio)
- Command injection on RS-232 ports
- 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
- Advanced EDID Management
- Intuitive control software for device configuration
- Device control via Ethernet (TCP/IP)
- Built-in website for device configuration
- Bi-directional RS-232 extension (pass-through)
- HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
- Firmware upgrade through Ethernet
- HDCP 2.2 and HDCP 1.4 compliant
- Local monitor output on transmitter
- Status LED for video signal detection
- Supports several embedded audio formats (including PCM, Dolby Digital and DTS)
- External universal power adaptor
- Can be remote powered through CATx cable (PoE PD)
- Mounting options for rack, furniture or truss
|Component type||Encoder (Transmitter)|
|Max. Image Resolution||3840 x 2160 @30Hz|
|Video Interface||HDMI Female (In), HDMI Female (Out, Loopback)|
|Audio interface||3.5 mm stereo jack (In), 3.5 mm stereo jack (Out), Dante/AES67 RJ45 (out)|
|Video Wall Wizard||Yes|
|Video delay:||1.1 frames (source to sink)|
|EDID emulation:||Advanced EDID Management|
|EDID memory:||53 factory preset, 5 user programmable|
|HDCP||Yes, HDCP 2.2|
|USB Device||USB Type B|
|Network Interface||RJ45 Female, 1 Gbps SFP|
|Switch||4 Position Dip Switch|
|IR||3.5 mm Jack Female (IR Out)|
|Local Power||DC 12V|
|Power-over-Ethernet (PoE)||Yes, PD (Powered Device)|
|PoE, PoE+, PoE++ and UPoE||Yes|
|Acoustic Noise||0 dB|
|Humidity||0-90% RH, Non-condensing|
|Dimensions (L x W xH)||218.5 x 104 x 25|
|Rack mountable:||Yes (1/2 RU width)|
|Compatible with VINX Power Tray||No|
|Video Resolution||Quality level||Max Frame Rate||Average Network Bandwidth (Mbps)|
|3840x2160 (2160p30)||Auto||30||218 (146~268)|
|1920x1080 (1080p)||Auto||60||133 (80~210)|
|1280x720 (720p)||Auto||60||147 (112~177)|
|1600x1200 (UXGA)||Auto||60||81 (57~105)|
|1280x1024 (SXGA)||Auto||60||113 (79~150)|
|1024x768 (XGA)||Auto||60||81 (72~120)|
|800x600 (SVGA)||Auto||60||66 (49~82)|
|640x480 (VGA)||Auto||60||43 (29~56)|
COMPARISON TABLES OF AVAILABLE VINX MODELS
|Av Ports of Encoders|
|HDMI local output||check||check||check||cancel||cancel|
|Analog audio input||cancel||check||check||check||cancel|
|Dante / AES67 Audio output||cancel||cancel||check||cancel||cancel|
|Av Ports of Decoders|
|Analog audio output||cancel||check|
|Ethernet and Control Ports|
|RS-232||RJ12||9-pole D-sub||9-pole D-sub||9-pole D-sub||cancel||RJ12||9-pole D-sub|
|USB||Mini USB Type B||USB Type B||USB Type B||USB Type B||USB Type B||4x USB Type A||4x USB Type A|
|Image resolution||3840 x 2160 @ 30Hz||3840 x 2160 @ 30Hz||3840 x 2160 @ 30Hz||3840 x 2160 @ 30Hz||3840 x 2160 @ 30Hz||3840 x 2160 @ 30Hz||3840 x 2160 @ 30Hz|
|EDID Management||Advanced Management||Advanced Management||Advanced Management||Advanced Management||Advanced Management||Transparent||Transparent|
|HDCP||HDCP 2.2||HDCP 2.2||HDCP 2.2||HDCP 2.2||HDCP 2.2||HDCP 2.2||HDCP 2.2|
|Powering and Mounting|
|Local Power||DC 5V||DC 12V||DC 12V||DC 12V||DC 5V||DC 5V||DC 12V|
|PoE Remote powering||cancel||check||check||check||check||cancel||check|
|RU Width for rack mounting||1/4||1/2||1/2||1/2||cancel||1/4||1/2|
|Power Rack Tray compatibility||check||cancel||cancel||cancel||cancel||check|
