Huddly L1 AI Large Room Collaboration Camera - HUD-L1

Product Overview

The Huddly L1 (HUD-L1) is a commercial-grade, network-connected AI conference camera designed for medium and large meeting rooms where Power over Ethernet deployment is the preferred infrastructure approach. Sold without a USB Adapter, the HUD-L1 is the correct specification for IT and AV teams deploying centrally managed, PoE-connected conference room cameras across enterprise networks — as opposed to direct PC-connected USB deployments. With a 20.30 MP 1-inch CMOS sensor, 6K image pipeline, and the full Huddly AI feature suite including Speaker Mode, Group Framing, and Real-Time Dewarping, this large room collaboration camera delivers consistent image quality and intelligent auto-framing without mechanical PTZ hardware. The HUD-L1 carries both iF Design Award and DOGA Award recognition and is a direct component of the Huddly Crew multi-camera system architecture.

Product Description

The Huddly L1 connects to the network via a single Power over Ethernet cable — Cat 5e, Cat 6, or Cat 7 — which delivers both power and data through an RJ45 port. This architecture supports clean installations in large conference rooms and boardrooms where running USB cable from camera to PC would be impractical due to distance or cable management constraints. The camera outputs 1080p at 30fps or 720p at 30fps, with up to 5x digital zoom providing close framing of individual speakers at the far end of large tables from a fixed wall or ceiling mount position.

The HUD-L1 runs the complete Huddly AI processing stack onboard. Speaker Mode continuously identifies and frames the active speaker. Collaboration Mode shifts the active frame to whiteboards or displays during content sharing. Gallery View presents a structured tiled layout of multiple participants. Group Framing automatically adjusts the field of view to encompass all occupants in the room. Perspective Correction compensates for steep wall-mount angles to produce a naturalistic head-on image. Framing Zone allows administrators to define specific regions of the room for AI tracking, preventing the camera from responding to movement outside the intended meeting area. Digital PTZ delivers motorless pan, tilt, and zoom. Portrait Lighting improves subject appearance in variable commercial room lighting. Real-Time Dewarping corrects lens distortion in real time, and Image Enhancement optimizes color balance and clarity for video conferencing output.

The absence of mechanical pan/tilt/zoom components means no motor maintenance, no acoustic noise during camera operation, and no mechanical failure points — a meaningful operational advantage in high-frequency commercial use environments. A standard tripod mount on the base accommodates temporary or portable deployment scenarios in addition to permanent wall installation. The HUD-L1 is software-upgradable over the network, ensuring that AI feature improvements and security patches are applied without requiring physical access to installed units.

The InSights Analytics API enables room occupancy and utilization data collection from deployed cameras, integrating with facility management systems for space planning and real estate optimization. For organizations standardizing on Huddly’s multi-camera Crew platform, the HUD-L1 is the individual camera unit that forms the foundation of a Crew system deployment.

Key Features

• PoE Network Deployment — Single Cat 5e/6/7 Ethernet cable delivers power and data, eliminating separate power runs and enabling central network management of camera infrastructure.
• 6K Sensor, 20.30 MP 1" CMOS — High-resolution imaging pipeline supports sharp 1080p output and precise AI framing at extended camera-to-subject distances typical in large meeting rooms.
• Speaker Mode — Onboard AI continuously identifies and frames the active speaker without manual camera preset recall or operator intervention.
• Collaboration Mode — Automatically shifts active framing to whiteboards and display areas when content sharing or collaboration is detected in the room.
• Gallery View & Group Framing — Supports both tiled multi-participant layouts and automatic all-participant framing to match meeting format and participant count.
• Perspective Correction — Electronically simulates a head-on camera position from high wall-mount angles, reducing the precision required during physical installation.
• Real-Time Dewarping — Corrects wide-angle lens distortion on-camera in real time, delivering natural image geometry without post-processing on the host PC.
• Image Enhancement — Onboard processing optimizes color balance, exposure, and clarity for video conferencing output under variable room lighting conditions.
• Portrait Lighting — AI-driven subject illumination enhancement improves individual appearance in rooms with overhead, mixed, or backlit lighting.
• InSights Analytics API — Exposes room occupancy and presence data for integration with facility management systems, space planning tools, and building automation platforms.
• No Moving Parts — All framing is electronic; absence of PTZ motors eliminates maintenance requirements and acoustic noise in commercial conference environments.
• Tripod Mount — Base tripod thread supports both permanent wall installations and temporary or mobile deployment configurations.
• Software-Upgradable — Network-delivered firmware and AI model updates extend hardware lifespan without requiring physical access to installed units.

Typical Applications

• Large conference rooms and boardrooms with PoE network infrastructure
• Enterprise PoE camera deployments across multi-room or multi-site campuses
• Huddly Crew multi-camera system installations (standalone L1 component)
• Government and financial services conference suites requiring network-managed cameras
• Higher education lecture halls and auditoriums
• Legal deposition rooms and hearing facilities
• Corporate real estate projects requiring room occupancy analytics integration

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the HUD-L1 and the L1 Kit with USB Adapter (SKU 7090043790948)?
A: The HUD-L1 is sold without a USB Adapter and is intended for PoE network-connected deployments where the camera is managed as a network device. The L1 Kit with USB Adapter includes the adapter that converts the camera’s PoE interface to USB 3.0, allowing direct connection to a PC or compute unit in environments where Ethernet infrastructure is not available at the camera mount point.

Q: Does the HUD-L1 require a dedicated PoE switch, or can it use an existing network switch with PoE ports?
A: The L1 requires a PoE-capable switch port. It can connect to any standard PoE (802.3af/at) switch port on an existing network switch, or to a dedicated PoE injector if the installed switch does not provide PoE. No proprietary Huddly switch hardware is required for standalone L1 deployment.

Q: Can the HUD-L1 be used as part of a Huddly Crew multi-camera system?
A: Yes. The Huddly L1 is the camera unit that forms the Crew base system. If you are building a Crew installation, you would acquire the Huddly Crew bundle (which includes three L1 cameras, a managed switch, and other components) rather than individual HUD-L1 units. Contact Creation Networks for Crew system configuration and pricing.

Q: How is the HUD-L1 managed on the network?
A: Huddly cameras are managed through the Huddly Device Manager software, which provides firmware update management, AI feature configuration, and camera health monitoring across all deployed units from a central interface.

Q: What does the InSights Analytics API integrate with?
A: The InSights API is an open interface that provides room occupancy and presence data. It can be integrated with facilities management systems, Microsoft Power BI dashboards, building management systems, or custom applications. Huddly provides API documentation for IT and developer teams.

Q: Is a USB Adapter available separately if one is needed later?
A: Yes. The Huddly USB Adapter is available as a separate accessory through Creation Networks, allowing a HUD-L1 purchased for PoE deployment to be converted to USB connectivity if infrastructure requirements change.

Q: What warranty and support options are available for commercial installations?
A: Huddly products carry a manufacturer warranty. Creation Networks provides commercial support, volume pricing, and authorized installation services. Contact us for current warranty terms and support contract options for multi-site enterprise deployments.

Physical Dimensions, Weight & Cabling

The following figures come from the Huddly L1 technical specification sheet and matter when you are laying out a wall plate, sizing a mount, or planning a cable pull.

Part Numbers & Variants: Huddly L1 Kit vs L1 Camera

Search results for "Huddly L1" mix two different orderable items, and they are not interchangeable. The camera hardware is identical in both; what differs is the adapter that ships in the carton and therefore how the camera reaches its host.

Ordering note: Huddly has published an end-of-sales announcement covering the Network Adapter configuration. If you are specifying new rooms, or if availability matters to your project schedule, contact Creation Networks at sales@creationnetworks.net before ordering so we can confirm current stock and recommend the correct kit for your infrastructure.

What's in the Box

Contents of the Huddly L1 carton, per Huddly's published kit documentation:

• Huddly L1 camera
• Wall and shelf mount for the camera, 0.26 lb (120 g)

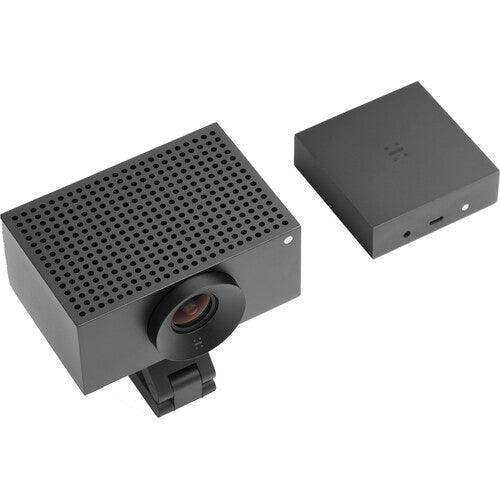

• Adapter appropriate to the kit ordered - Network Adapter on this SKU, USB to PoE Adapter on part 7090043790948
• Wall mount plate for the adapter
• 2 m Cat 5e/6/7 Ethernet cable
• 0.6 m USB-C and USB-A cables
• AC/DC power adapter, 1 m lead, with regional plugs

Not included: PoE switch or injector, structured cabling beyond the supplied 2 m patch lead, ceiling or display mounting brackets, microphones and speakers. The L1 is a camera only - room audio is specified separately.

Deployment & Compatibility Notes

Room sizing in feet. Huddly rates the L1 for rooms up to roughly 33 x 16 ft (10 x 5 m) in its large-room configuration and up to roughly 20 x 16 ft (6 x 5 m) as a medium-room camera. The 92 degree horizontal field of view sets the width the camera can see from a given mounting distance, and the 20.30 MP 1-inch sensor is what allows 5x digital zoom to hold usable detail on a talker at the far end of a long table. Beyond about 33 ft of table length, plan a second camera or a Huddly Crew architecture rather than relying on digital zoom.

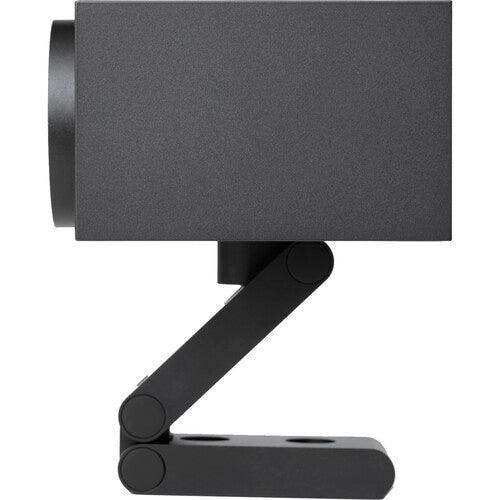

Mounting. The supplied wall and shelf mount handles the common cases - above or below the room display, or resting on a credenza. Perspective Correction is what makes an above-display mount workable: it electronically simulates a head-on camera position, so a steep downward angle does not produce a distorted image. There is also a standard tripod thread in the base for temporary and mobile carts.

Network and power. One Cat 5e, Cat 6 or Cat 7 run carries both power and video, and Huddly rates that run to 100 m (328 ft) - far beyond what passive USB will do, which is the main reason to specify the PoE configuration in a large room. Terminate on a PoE-capable switch port, or add a PoE injector if the existing switch has no powered ports. No proprietary Huddly switch is needed for a single-camera install.

Platform certification. The Huddly L1 is certified for Microsoft Teams. Drivers are published for Windows and, where the Network Adapter is used, for macOS; Huddly's deployment guide includes an MSI package for distributing the driver across a managed Windows fleet.

Documentation & Resources

• Huddly L1 official product page
• Huddly L1 technical specification sheet (PDF)
• Huddly L1 setup guide, drivers and deployment documentation

Further Questions: Sizing, Cabling and Kit Selection

Should I buy the Huddly L1 kit or just the L1 camera?
Decide by where the host computer is. If the room already has a PoE switch port at the camera position, buy the PoE configuration on this page - one Ethernet run does everything and the camera is managed as a network device. If the camera has to plug into a room PC or MTR compute unit and there is no powered switch port nearby, buy part 7090043790948, the L1 Kit with USB Adapter, because that carton contains the USB to PoE Adapter and its power supply. The camera itself is the same in both.

How large a room will one Huddly L1 cover?
Up to about 33 x 16 ft (10 x 5 m) as a large-room camera, or about 20 x 16 ft (6 x 5 m) in a medium room. The 92 degree horizontal field of view means the camera sees a wide arc from a short throw, so it does not need to sit far back from the near end of the table.

How far can the L1 be from the switch or the host PC?
Up to 100 m (328 ft) of Cat 5e, Cat 6 or Cat 7 between the powered port and the camera. That distance is the practical argument for the PoE version in auditoriums, lecture halls and long boardrooms where a USB cable run would need active extension.

Does the Huddly L1 output 4K?
No. The sensor is 20.30 MP with a 6K internal pipeline, but the camera's video output is 1080p at 30 fps or 720p at 30 fps. The oversized sensor is used for framing headroom and digital zoom quality rather than for a 4K stream, which is why 5x digital zoom still looks clean.

How big is the camera, and how much does it weigh?
4.8 x 3.5 x 3.2 in (122 x 90 x 82 mm) and 1.3 lb (0.6 kg), with a 0.26 lb (120 g) wall and shelf mount in the box. It is small enough to sit under a display without intruding on the screen bezel.

Is the Huddly L1 certified for Microsoft Teams?
Yes, the L1 is certified for Microsoft Teams. Room-level Teams Rooms certification also depends on the compute and audio devices you pair with it, so ask us to review the full bill of materials if certification is a procurement requirement.

Does the L1 include microphones or speakers?
No. The L1 is a camera. Room audio - ceiling or table microphones, DSP and loudspeakers - is specified separately, which is exactly why the L1 is commonly paired with a networked microphone array in medium and large rooms.

Can I mount the L1 above the display without the image looking distorted?
Yes. Perspective Correction electronically simulates a head-on camera position from a steep wall-mount angle, and Real-Time Dewarping removes wide-angle lens distortion on the camera. Together they mean the physical mounting angle does not have to be perfect for the far end to see a natural, level image.
