Crestron TSS-1070-T-W-S-LB KIT 10.1 in. Room Scheduling Touch Screen for Microsoft Teams, White Smooth, inc TSW-1070-LB-W-S light bar

Product Overview

The Crestron TSS-1070-T-W-S-LB KIT is a complete 10.1 in. room scheduling solution for Microsoft Teams in a white smooth finish, bundled with a TSW-1070-LB-W-S room availability light bar. The TSS-1070-T runs the native Microsoft Teams Panels application, while the light bar shows green or red room status visible down the hallway. Both install over a standard electrical box with single-cable PoE+ power. The TSS-1070-T-W-S-LB KIT is purpose-built for booking and managing meeting spaces at the room entrance.

Product Description

The TSS-1070-T-W-S-LB KIT pairs the TSS-1070-T-W-S room scheduling touch screen with the TSW-1070-LB-W-S light bar for an out-of-the-box scheduling display. The 10.1 in. (257 mm) 1920x1200 WUXGA capacitive touch screen runs the native Microsoft Teams Panels scheduling application, letting users view availability and book or end meetings from the panel. It also supports Crestron and various third-party scheduling apps. The light bar provides a 180-degree visual indication of room status, illuminating green when the room is available and red when reserved, with custom color options. The touch screen connects over a single 100BASE-TX PoE+ Ethernet cable and includes 802.11ac Wi-Fi, with two USB 2.0 host ports for the light bar and an optional accessory such as an RFID-USB card reader. Enterprise security includes TLS, SSH, IEEE 802.1X, SNMP, and Active Directory authentication, plus XiO Cloud management. Note that the TSS-1070-T runs only the scheduling application and cannot be interfaced with a control system or custom programmed for other functions; an internet connection and applicable Microsoft subscriptions are required. The panel mounts over a US, European, or UK electrical box and supports wall, surface, and rack mounting options sold separately.

Key Features

• Microsoft Teams scheduling — Runs the native Microsoft Teams Panels application for room booking.

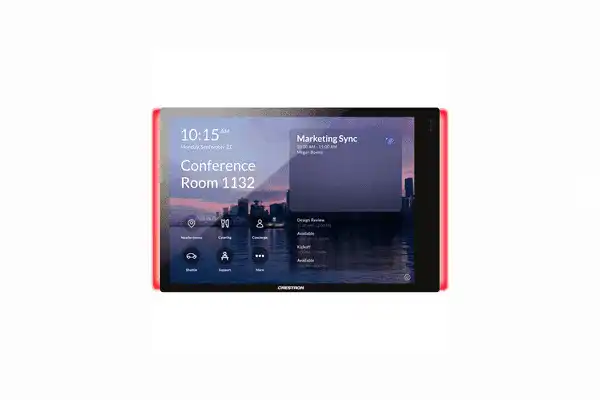

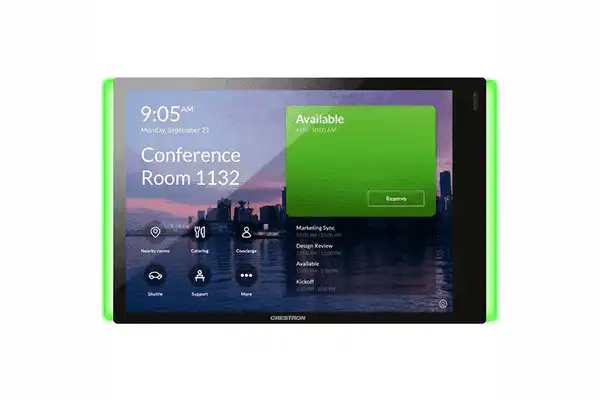

• Included light bar — Bundled TSW-1070-LB-W-S provides 180-degree green/red room status indication.
• 10.1 in. WUXGA display — 1920x1200 active-matrix capacitive touch screen with 5-point multitouch.
• Single-cable PoE+ power — Draws power and network over one IEEE 802.3at Type 2 Ethernet connection.
• Dual USB host ports — Supports the light bar plus an optional accessory such as an RFID-USB reader.
• Wi-Fi connectivity — Includes 802.11a/b/g/n/ac Wi-Fi for flexible network deployment.
• Enterprise security — Supports TLS, SSH, IEEE 802.1X, SNMP, Active Directory, and XiO Cloud.
• Versatile mounting — Mounts over US, European, or UK electrical boxes with wall, surface, and rack options.
• White smooth finish — Edge-to-edge glass with a white surround for a clean entryway appearance.

Typical Applications

• Conference and meeting room scheduling at the room entrance.
• Microsoft Teams Rooms deployments needing panel-based booking.
• Open-plan offices and hot-desking neighborhoods.
• Higher education and training room reservations.
• Hallway room-status indication for shared spaces.

Technical Specifications

Frequently Asked Questions

What is included in the TSS-1070-T-W-S-LB KIT? The kit includes the TSS-1070-T-W-S room scheduling touch screen and the TSW-1070-LB-W-S room availability light bar.

Which scheduling platform does it use? It runs the native Microsoft Teams Panels scheduling application, and also supports Crestron and various third-party scheduling apps.

Can it be custom programmed or tied to a control system? No. The TSS-1070-T runs only the scheduling application and cannot be interfaced with a control system or custom programmed for other functionality.

How is it powered? It is powered over the network using IEEE 802.3at Type 2 PoE+, which is required when the light bar is connected.

Does it require a subscription? An internet connection is required, and additional Microsoft subscriptions or licenses may be needed for the Teams scheduling service.

What warranty applies? The TSS-1070-T-W-S-LB KIT is covered by the Crestron 3-year limited warranty. For deployment assistance, Contact Creation Networks.
