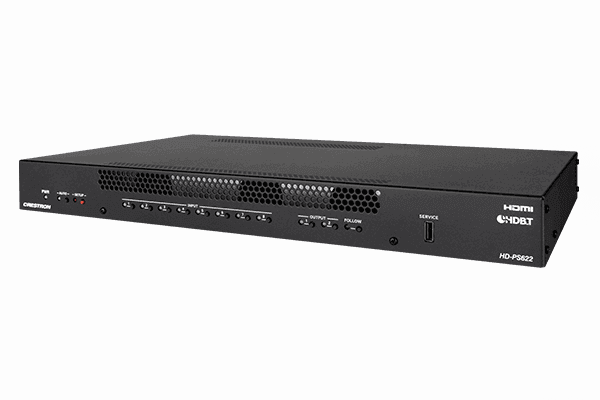

Crestron HD-PS622 8x2 4K60 4:4:4 HDR Presentation System

Product Overview

The Crestron HD-PS622 is an 8x2 4K60 4:4:4 HDR presentation system that combines multi-input AV switching, dual scaled outputs, and an integrated audio mixer in a single 1RU chassis. Designed for conference rooms, classrooms, and training spaces, this 4K presentation switcher routes six HDMI and two DM Essentials sources to two mirrored HDMI and DM Essentials outputs with independent 4K60 4:4:4 scalers. It supports HDR10, HDR10+, and Dolby Vision, with HDCP 2.3 content protection throughout. The HD-PS622 is a rack-mountable 4K60 AV presentation system that simplifies signal management and microphone mixing for fixed-install rooms.

Product Description

The HD-PS622 provides six HDMI inputs (DVI and Dual-Mode DisplayPort compatible) and two DM Essentials inputs, switching to two pairs of mirrored HDMI and DM Essentials outputs. Each output pair shares a dedicated 4K60 4:4:4 scaler with motion-adaptive deinterlacing, intelligent frame rate conversion, and content-adaptive noise reduction, automatically matching source content to the connected display's native resolution. Video resolutions up to 4096x2160 and 3840x2160 are supported, along with HDR10, HDR10+, and Dolby Vision pass-through. A five-channel audio mixer per output pair combines extracted HDMI LPCM stereo with eight mono analog inputs, including two switchable mic/line channels with selectable phantom power and six line inputs, plus two balanced stereo AUX outputs. The unit features Crestron Auto-Locking and QuickSwitch HD technologies for fast, reliable switching, and supports Ethernet control with IEEE 802.1X, Secure CIP, SSH, and TLS. The HD-PS622 mounts in a 19 in. rack using the included rack ears and occupies 1RU. For DM Essentials endpoints and related switching gear, see the associated Crestron products below.

Key Features

• 8x2 4K60 4:4:4 switching — Routes six HDMI and two DM Essentials inputs to two mirrored HDMI and DM Essentials output pairs.
• Dual independent scalers — Each output pair has a 4K60 4:4:4 scaler with deinterlacing, frame rate conversion, and noise reduction.
• HDR support — HDR10, HDR10+, and Dolby Vision pass-through with Deep Color and HDCP 2.3.
• Integrated audio mixer — Five-channel mixer per output pair combines HDMI audio with eight analog inputs; two channels offer mic/line with phantom power.
• DM Essentials distribution — DM Essentials outputs drive receivers or HDBaseT devices over a single shielded cable.
• Network control and security — Ethernet control with IEEE 802.1X, Secure CIP, SSH/SSL, and TLS.
• 1RU rack-mountable — Fits a 19 in. EIA rack using the included rack ears; 72 W typical power consumption.

Typical Applications

• Conference rooms and boardrooms requiring multi-source 4K presentation switching
• Classrooms and training rooms with microphone mixing and dual displays
• Fixed AV installs distributing video over DM Essentials to remote receivers
• Houses of worship and lecture halls needing HDR-capable scaled outputs

Technical Specifications

Frequently Asked Questions

How many sources and displays does the HD-PS622 support? It switches eight inputs (six HDMI, two DM Essentials) to two mirrored HDMI and DM Essentials output pairs, each independently scaled to 4K60 4:4:4.

Does it support HDR? Yes. HDR10, HDR10+, and Dolby Vision are supported with pass-through, along with Deep Color and HDCP 2.3.

Can it mix microphones? Yes. A five-channel mixer per output pair combines HDMI audio with eight analog inputs, including two mic/line channels with selectable +48 V phantom power.

How is it installed and controlled? The HD-PS622 mounts in a 19 in. rack using the included rack ears (1RU) and is controlled over Ethernet with web browser setup and Crestron control system integration.

What cabling is required for full 4K60 4:4:4? Use HDMI cables and couplers rated for a minimum 18 Gbps TMDS bandwidth. The system carries the Crestron 3-year limited warranty. For design assistance, Contact Creation Networks.
