Christie Stacking Frame for Projectors - 118-100107-01

Product Overview

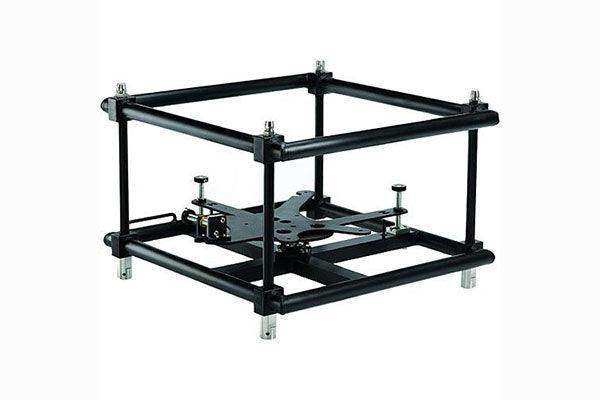

The Christie 118-100107-01 Stacking Frame is a single-assembly rigging frame that fastens to the bottom of a compatible Christie projector and supports stacks of up to three units, in normal or inverted orientation. Independent pitch, roll, and yaw adjustments allow precise alignment of overlaid images for brightness stacking or passive 3D. One person can complete installation and adjustment, keeping setup time short on show sites.

Product Description

Stacking projectors doubles or triples on-screen brightness, but only if the overlaid images converge precisely — and that is the job this frame is built for. Each projector in the stack mounts in its own frame, and independent pitch, yaw, and tilt controls let technicians correct a single unit without disturbing the others above or below it. The frame is constructed with standard 1.75-inch OD tubing, so common burger clamps and industry rigging hardware attach directly for flown configurations. The open design preserves access to the projectors for lamp and filter replacement and routine maintenance without de-rigging the stack. Compatibility covers the Christie M Series when each projector uses its own Stacking Frame; E Series projectors require the optional stacker plate. For rental and staging operations, the one-person setup and repeatable adjustments translate directly into faster load-ins.

Key Features

• Stacks Up to Three Projectors — in normal or inverted orientation for floor or flown rigs.
• Independent Pitch, Yaw, and Tilt Controls — align one projector without affecting the others in the stack.
• Standard 1.75-inch OD Tubing — accepts common burger and industry rigging clamps.
• One-Person Installation — quick setup and adjustment on time-constrained show sites.
• Maintenance Access — open design allows lamp/filter replacement without de-rigging.
• M Series Compatible — each projector uses its own frame; E Series requires the optional stacker plate.

Typical Applications

The Stacking Frame supports brightness-stacked and passive 3D projection rigs in live events, concert touring, large venue installations, houses of worship, and simulation facilities using Christie M Series projectors. It is standard equipment in rental and staging inventories that fly or floor-stack projectors. See compatible Christie projection gear in our Christie Digital collection.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

How many projectors can be stacked?
Up to three, in normal or inverted orientation, with each projector adjustable independently.

Which projectors does the frame support?
Christie M Series projectors when each unit uses its own Stacking Frame. E Series projectors require the optionally purchased stacker plate.

Can the stack be flown?
The frame uses standard 1.75-inch OD tubing that accepts common burger and industry rigging clamps for flown configurations. Always follow applicable rigging safety standards.

Can one technician set it up?
Yes. Installation and image alignment adjustments are designed to be done quickly by a single person.
