Christie One Projector Mount - 108-506102-01
Product Overview

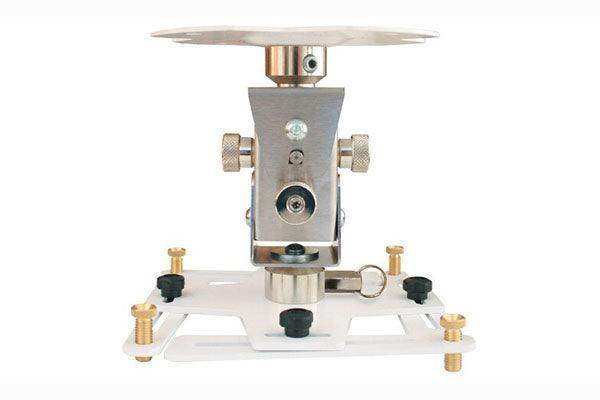

The Christie One Mount (108-506102-01) is a professional ceiling mount with tool-free fine adjustment of pitch, yaw, and roll for over 20 Christie projector models. Thumb screws lock the projector in place once the image is aligned, and a quick-release pin allows service without removing hardware. Rated for 44 lb (20 kg), it is the standard mount for Christie GS, Q, E, and LCD-series projectors.
Product Description
The One Mount is built around the same priority as every good projector mount: fast, precise alignment that holds. Fingertip controls adjust pitch and roll through 30 degrees and yaw through a full 360 degrees, each independently and without tools, so installers can converge on a square image quickly. Once set, thumb screws lock the position. The quick-release pin detaches the projector for lamp or filter service without disturbing the alignment hardware, eliminating re-aiming after maintenance. A ceiling plate is included, and the Italian-made construction supports up to 44 lb (20 kg). Compatibility spans more than 20 Christie models, including the DHD555-GS, DWU555-GS, DWX555-GS, DHD600-G, DWU600-G, DHD/DWU675-E and 775-E, the 851-Q and 951-Q families, DXG1051-Q, and the LW, LWU, and LX LCD projector lines. For heavier projectors, see the One Mount Plus (140-117100-03) with its 100 lb capacity.
Key Features
- Tool-Free Fine Adjustment — independent pitch, roll (30° each), and 360° yaw control.
- Locking Thumb Screws — hold final image alignment securely over time.
- Quick-Release Pin — detach the projector for service without losing alignment.
- 44 lb (20 kg) Capacity — covers Christie GS, G, E, Q, and LCD-series projectors.
- 20+ Compatible Models — including DHD/DWU/DWX555-GS, 600-G, 675/775-E, 851/951-Q, and LW/LWU/LX series.
- Ceiling Plate Included — complete ceiling installation hardware in the box.
- Made in Italy — professional build quality.
Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | 108-506102-01 |
| Adjustments | Roll 30°, Pitch 30°, Yaw 360° |
| Load Capacity | 44 lb (20 kg) |
| Dimensions | 9.4 x 9.4 x 7.9 in (24 x 24 x 20 cm) |
| Mount Weight | 6.5 lb (3 kg) |
| Package Weight | 7.03 lb |
| Box Dimensions (LxWxH) | 9.6 x 9.3 x 8.9 in |
| Compatibility (partial) | DHD/DWU/DWX555-GS, DHD/DWU/DWX600-G, DHD/DWU675-E, DHD/DWU775-E, DHD/DWU/DWX851-Q, DHD/DWU/DWX951-Q, DXG1051-Q, LW/LWU/LX series |
| Country of Manufacture | Italy |
Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.
