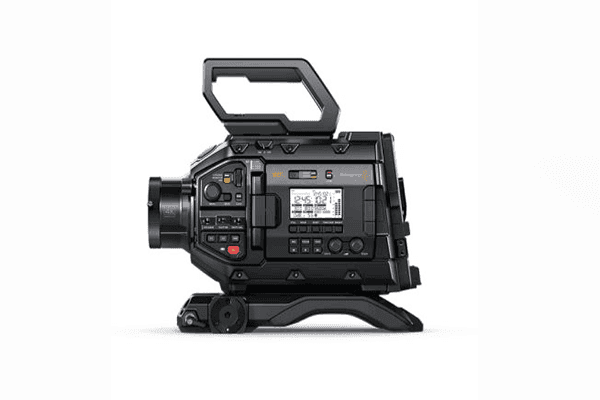

Blackmagic Design URSA Broadcast G2 - CINEURSAMWC6KG2
Blackmagic Design URSA Broadcast G2 - CINEURSAMWC6KG2 is backordered and will ship as soon as it is back in stock.
Shipping Now*
Shipping Now*
Free Ground Shipping over $250.00
Update your broadcast studio or internet broadcast camera with a versatile 3-in-1 powerhouse using the Blackmagic Design URSA G2 Broadcast Camera. This updated G2 model features generation 5 color science and not only supports up to UHD 4K as its predecessor for production and studio work but can now be used as a 6K digital film camera that records in Blackmagic RAW format. The lens mount is compatible with 2/3" B4 lenses, but it also includes an active EF mount adapter, allowing you to access a long line of professional cinema lenses. It allows you to apply 3D LUTs for cinema-like looks, has built-in optical ND filters, features 12G-SDI input and output, captures audio via two XLR inputs, and can record using Prores 422 and Blackmagic RAW onto CFast 2.0 or SD UHS-II cards.
The camera body is constructed with durable and lightweight magnesium, so it will hold steady in any environment. To power the camera, you can use the included 12 VDC power adapter or the preinstalled V-mount plate to utilize professional, high-capacity V-mount batteries. Also included with the camera are the URSA Mini shoulder pad, the URSA Mini top handle, a viewfinder mounting plate, and all the installation hardware and lens caps. A downloadable copy of DaVinci Resolve Studio is included, along with access to future camera software updates.
Features
- 6K CMOS Sensor, Dual Native ISO
- 2/3" B4 Lens Mount & Active EF Mount
- 6K Blackmagic RAW Recording
- Records to ProRes, H.265/264
- 12G-SDI Input & Output, Genlock/Timecode
- 13 x Stops of Dynamic Range
- 2 x UHS-II SD, 2 x CFast 2.0 Slots
- Built-In 2/4/6-Stop ND Filters
- XLR Inputs, 3.5mm Audio Output
- ProRes Recording up to 1080p120
Specification
Lens Mount | B4 |
Lens Communication | Yes |
Sensor Resolution | Not Specified by Manufacturer |
Sensor Type | 23.1 x 12.99 mm (Medium Format) CMOS |
Image Stabilization | None |
Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
Capture Type | Stills & Video |
Shutter Type | Electronic Rolling Shutter |
ISO Sensitivity | 400 to 3200 (Extended: 100 to 25,600) |
Gain | -6 to 18 dB |
Advertised Dynamic Range | 13 Stops |
Internal Recording Modes | Blackmagic RAW 10-Bit 6144 x 3456 up to 50 fps [65 to 483 Mb/s] 6144 x 2560 up to 59.94 fps [49 to 359 Mb/s] 5376 x 3024 up to 59.94 fps [51 to 371 Mb/s] 3728 x 3104 up to 59.94 fps [36 to 265 Mb/s] 3840 x 2160 up to 59.94 fps [32 to 190 Mb/s] 1920 x 1080 up to 150 fps [5.2 to 47 Mb/s] ProRes 422/ProRes 422 HQ 3840 x 2160 up to 59.94 fps [73.6 to 110 Mb/s] 1920 x 1080p up to 59.94 fps [18.4 to 27.5 Mb/s] 1920 x 1080p at fps [18.4 to 27.5 Mb/s] H.265 3840 x 2160 up to 59.94 fps [3.2 to 7.8 Mb/s] H.264 1920 x 1080p up to 59.94 fps [1.8 to 7 Mb/s] |
Sensor Crop While Recording | 4K (3840 x 2160) in 16:9 When Recording in Raw |
Broadcast Output | NTSC/PAL |
Built-In Microphone Type | Stereo |
Audio Recording | ProRes: 2-Channel 24-Bit 48 kHz |
IP Streaming | None |
Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-II) Dual Slot: CFast (CFast 2.0) |
Video I/O | 1 x BNC (12G-SDI) Output 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output |
Audio I/O | 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Input/Output on Camera Body 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body |
Power I/O | 1 x XLR 4-Pin Input 1 x XLR 4-Pin (12 to 20 VDC) Output 1 x Molex 12-Pin Input |
Other I/O | 1 x USB-C (USB 3.2 / 3.1 Gen 2) Video Output 1 x USB-C Data Input 1 x 2.5 mm Sub-Mini (LANC) Control Output 1 x BNC (Reference, Sync, Timecode) Data Input 1 x Hirose 12-Pin (Camera Interface) Control Output |
Wireless | Bluetooth Control |
Size | 4.0" |
Display Type | Articulating Touchscreen LCD |
Secondary Display | Side: LCD Status Display |
Type | Optional, Not Included |
Focus Type | Auto and Manual Focus |
Focus Mode | Automatic, Manual Focus |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
Battery Type | V-Mount |
Power Consumption | 100 W |
Tripod Mounting Thread | 3 x 1/4"-20 Female (Bottom) |
Accessory Mount | 1 x ARRI/Hirth Rosette |
Material of Construction | Magnesium Alloy |
Dimensions (W x H x D) | 10.95 x 9.93 x 5.9" / 27.81 x 25.22 x 15 cm |
Weight | 7.83 lb / 3.55 kg |
Package Weight | 11.4 lb |
Box Dimensions (LxWxH) | 20.7 x 10.1 x 7.1" |
