Blackmagic Design DaVinci Resolve Mini Panel with Resolve Studio Software - DV/RES/BBPNLMINI

 

Spec Sheet

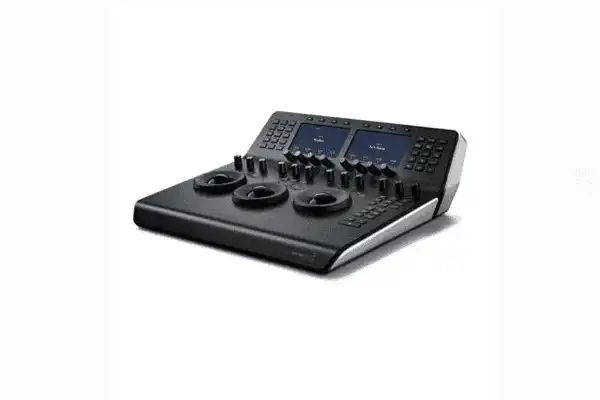

The DaVinci Resolve Mini Panel from Blackmagic Design is a step up in functionality from the Micro panel but without all the features of the Advanced panel, and it includes DaVinci Resolve Studio software. It is a portable control surface suitable for those that need to switch between editing and color grading. It can sit on your desktop or in a rack or can be bolted to a surface. As with the Micro panel, it features three high-resolution, weighted trackballs and 12 control knobs for accessing essential primary color-correction tools in the Resolve software. Eighteen dedicated keys on the right side also give you access to the most commonly used grading features and playback controls.

However, the Mini Panel also features two LCD screens that allow you to display menus or the parameters of the tools you are working with. Eight customizable soft knobs provide precise control and a quick reset by pushing the knob. Dedicated feature buttons allow you to change tools without needing to use the mouse. The Mini panel incorporates both USB-C and Ethernet interfaces. It is compatible with Mac, Windows, and select Linux systems. You can power the panel via an AC power source, a 4-pin XLR connector, or PoE. For the panel to work with Resolve, your computer must be running DaVinci Resolve 14.3 or DaVinci Resolve Studio 14.3 or later.



Primary Correction Creative Control Knobs Control knobs are grouped into four sets of three knobs Luminance

• Y Lift Control: Adjust the contrast of the image in the darker areas, specifically in the Y (luminance) channel only. This adjustment allows for changing the black point without changing saturation.
• Y Gamma Control: Adjust the contrast of the image in the mid-tone areas, specifically in the Y (luminance) channel only. This control helps add depth and extra vibrancy to shots.
• Y Gain: You can reduce hot spots or tweak the whites to define a look.

Contrast

• Contrast Control: Increase contrast to make the blacks darker and the whites brighter, or decrease contrast to do the opposite.
• Pivot: Change the center of tonality about which dark and bright parts of the image are stretched or narrowed during a contrast adjustment.
• Mid-Tone Detail: Affect the contrast of regions of the image with high edge detail to increase or decrease the perception of image sharpness and definition. Often used for softening facial features, making it popular for beauty shots.

Detail

• Color Boost Control: Raise the saturation in regions of the image with low saturation while leaving properly saturated areas alone. Also known as a vibrance operation, this is useful for adding color without oversaturating the image.
• Shadow Control: Selectively lighten or darken shadow detail without affecting your image's mid-tones.
• Highlight Control: Enable retrieving blown-out highlight detail in high dynamic range media by lowering this parameter. This allows you to achieve a smooth blend between the retrieved highlights and unadjusted mid-tones for a natural-looking image.

Saturation

Increases or decreases overall image saturation—you can turn your color image into a grayscale image with this control.



• Hue Control: Rotates all hues of the image around 360° of the color wheel. The default setting is 50, which retains the original distribution of hues.
• Luminance Mix Control: Controls the balance between the YRGB adjustments and Y-only adjustments made using the Y channel lift, gamma, and gain controls.

Power

The system powers from either a separately available AC power adapter or a 12 VDC source via the 4-pin XLR connector.

Mounting

The Mini panel can sit on a desktop, be mounted in a rack, or mount on a surface to prevent theft or be used in a moving vehicle or on a cart. System Requirements for DaVinci Resolve System requirements as of DaVinci Resolve 18: Minimum System Requirements for Mac OS

• macOS 11 Big Sur
• 8GB of system memory; 16GB when using Fusion
• Blackmagic Design Desktop Video version 12.0 or later
• Integrated GPU or discrete GPU with at least 2GB of VRAM
• GPU that supports Metal or OpenCL 1.2

Minimum System Requirements for Windows

• Windows 10 Creators Update
• 16GB of system memory; 32GB when using Fusion
• Blackmagic Design Desktop Video 10.4.1 or later
• Integrated GPU or discrete GPU with at least 2GB of VRAM
• GPU that supports OpenCL 1.2 or CUDA 11
• NVIDIA/AMD/Intel GPU Driver version–as required by your GPU

Minimum System Requirements for Linux

• CentOS 7.3
• 32GB of system memory
• Blackmagic Design Desktop Video 10.4.1 or later
• Discrete GPU with at least 2GB of VRAM
• GPU that supports OpenCL 1.2 or CUDA 11
• NVIDIA/AMD Driver version–as required by your GPU

• Small enough to take with you, so you can bring it to any Resolve system (14.3 or later) and do color correction on location or at the editor's suite
• DaVinci Resolve Studio software included
• Shares basic layout with both Micro and Advanced Panels
• Interfaces with and controls software

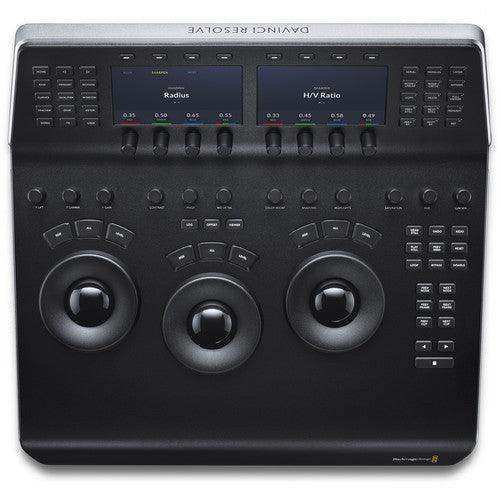

• Three trackballs with outer control rings
• Log and Offset color-correction selection buttons
• Buttons are backlit and light up when actuated
• Two LCD screens for displaying the menu system or the parameters of the tools you are working with
• Custom control knobs with 4096 steps per rotation and push-button reset

Blackmagic Design DaVinci Resolve Mini Specs

Controls	68 x Pre-Labeled Key 20 x Dial 3 x Trackball
Display	2 x 5" Color LCD
OS Compatibility	macOS 10.15 or Later Windows 10 or Later CentOS 7.3 or Later *As of November, 2021: Check with manufacturer for the most up-to-date compatibility

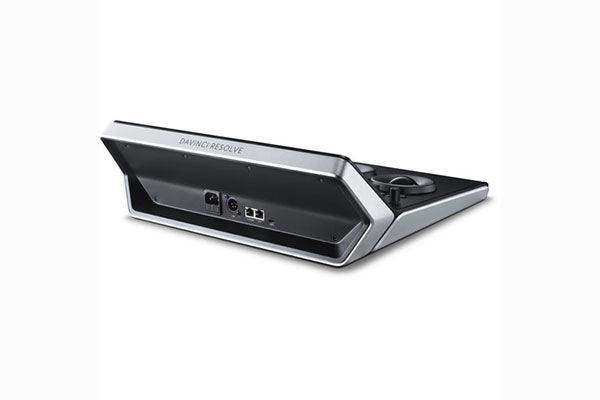

I/O

USB I/O	1 x USB-C Female Input
Ethernet	1 x Gigabit Ethernet (Supports PoE) 1 x Gigabit Ethernet
Power I/O	1 x IEC-14 Input 1 x XLR 4-Pin Input

Power

Power Source	AC Adapter with Power Brick, PoE
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 1.5 A
DC Input Power	12 VDC
Power Consumption	17 W (Maximum)

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90%

Physical

Dimensions	16.9 x 15.27 x 5.6" / 42.9 x 38.79 x 14.2 cm
Weight	14.1 lb / 6.4 kg

Packaging Info

Package Weight	23.2 lb
Box Dimensions (LxWxH)	21.2 x 19.4 x 9.4"
