Blackmagic Design Audio Monitor 12G (1 RU) - HDL-AUDMON1RU12G

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: HDL-AUDMON1RU12G
No reviews
Price:
$1,235.00

Description

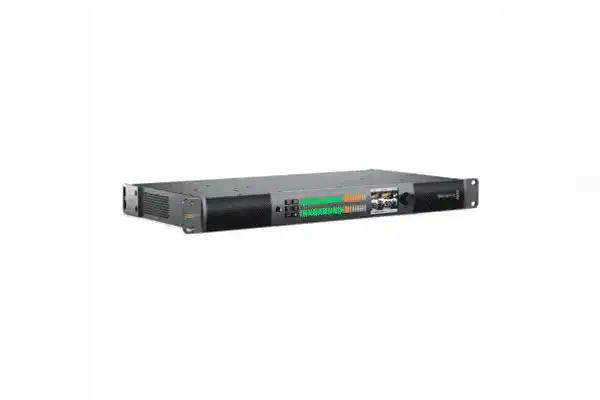

Monitor your audio with the 1 RU Blackmagic Audio Monitor 12G from Blackmagic Design. Featuring a dual-subwoofer design with extra wide range speakers, the audio monitor is equipped with Class-D amplifiers. It features a 12G?SDI input, a balanced XLR analog audio input, a balanced AES/EBU digital input audio, HiFi audio inputs, and an HDMI 2.0 output. The front panel features multicolored audio level meters and a built-in LCD for monitoring video sources.
Monitor Anywhere
Install the Blackmagic Audio Monitor 12G in broadcast racks, audio on decks, video servers, and live transmissions. With the push of a button you can switch between stereo pairs of the SDI input, making this unit great for monitoring alternative language tracks. The compact size is ideal for portable flyaway kits and broadcast trucks where space is tight or in edit and audio postproduction facilities.

  • AES/EBU audio inputs support two channels of balanced 110-ohm AES/EBU via XLR
  • SDI audio inputs support 16 channels of embedded audio in SD, HD, and Ultra HD 4K
  • SDI audio outputs support 16 channels of embedded audio loop out
  • HDMI audio outputs support eight channels of embedded audio in SD, HD, and 4K
  • Dual-Subwoofer Design
  • Class-D Amplifiers
  • 12G-SDI, AES/EBU & Analog Inputs
  • SDI Loop Out & HDMI 2.0 Output
  • LCD Display & Audio Level Meters

Blackmagic Design HDL-AUDMON1RU12G Specs
Amplifiers Class-D
Inputs 1 x SDI, Video
2 x XLR, Analog Audio
2 x RCA, Stereo Audio
1 x XLR, AES/EBU 2 Channels Balanced
Output 1 x SDI, Video Loop Out
1 x HDMI 2.0, Video
1 x 1/4" / 6.5 mm Headphone Jack
Control 1 x USB Type-C, Port
1 x RJ45, Ethernet Port
SDI Rate 270 Mb, 1.5G, 3G, 6G, and 12G
Built-In Speakers 2-Way Stereo, 2 x Subwoofers, 2 x Full-Range Drivers
Metering 2 x 27-Segment RGB LED VU, PPM, or Loudness Meters
SD Video Standards 525i59.94 NTSC and 625i50 PAL
HD Video Standards 1080p at 50, 59.94, and 60
1080p at 23.98, 24, 25, 29.97, and 30
1080PsF at 23.98, 24, 25, 29.97, and 30
1080i at 50, 59.94, and 60
720p at 50, 59.94, and 60
2K Format Support 2K DCI at 23.98p, 24p, and 25p
2K at 23.98PsF, 24PsF, and 25PsF
Ultra HD Format Support 2160p at 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60
4K Format Support 4K DCIp at 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, and SMPTE 2082-10
SDI Auto Switching Automatically Selects Between SD, HD, 3G-SDI Level A and B, 6G-SDI, and 12G-SDI
Audio Sampling 96 kHz and 24-bit
Video Sampling 4:2:2 and 4:4:4
Operating Systems Mac 10.13 High Sierra, Mac 10.14 Mojave or later, Windows 8.1, and Windows 10
Display Size 2.2" Diagonal
Display Resolution 320 x 240
Power Supply 100 to 240 VAC, Internal
Power Usage 55 W
Material Machined Metal
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90%
Dimensions 19 x 9.65 x 1.73" / 48.3 x 24.5 x 4.4 cm
Weight 5.73 lb / 2.6 kg
Packaging Info
Package Weight 6.91 lb
Box Dimensions (LxWxH) 19.5 x 10.9 x 3.4"
