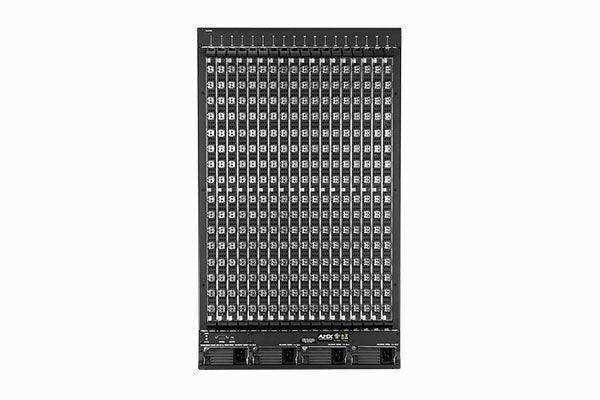

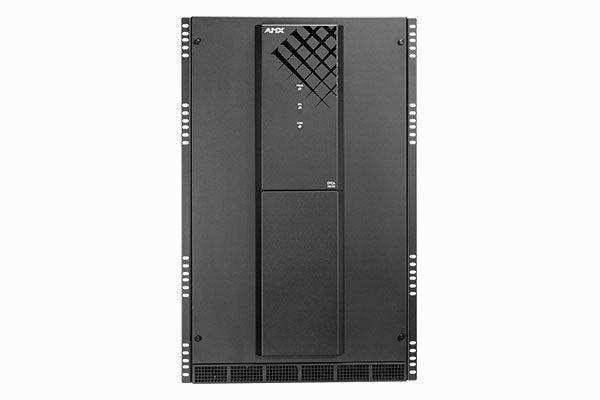

AMX Epica DGX 288 – 288x288 Uncompressed Fiber Matrix Switcher Enclosure

Product Overview

The AMX Epica DGX 288 Enclosure is a large-scale, 288x288 uncompressed fiber matrix switcher designed for mission-critical AV distribution in government command centers, broadcast facilities, enterprise data centers, and large-scale commercial AV infrastructure. Supporting transport of HDMI with HDCP and embedded audio over single-mode or multimode fiber, the Epica DGX 288 delivers uncompressed 4K-ready video at distances up to 10 km over single-mode fiber. Its modular architecture allows integrators to scale from smaller configurations up to a full 288x288 matrix within a single 17-rack-unit chassis, making it the premier choice for high-density fiber-based AV signal distribution.

Product Description

The AMX Epica DGX 288 Enclosure (FG1055-288) provides the backbone chassis for a fully modular, fiber-based matrix switching system capable of routing up to 288 inputs to 288 outputs with zero compression and zero signal degradation. The enclosure houses up to 18 hot-swappable input/output boards, each delivering a full 16x16 matrix in a single board slot, and supports simultaneous use of both single-mode and multimode fiber boards within the same frame. Utilizing AMX proprietary DGX Technology, the system handles signal conversion between analog and digital sources while maintaining pixel-perfect reproduction of high-resolution content at full 10 Gbps throughput. The Epica DGX 288 integrates with AMX DXLink Multi-Format Simplex Transmitters and DXLink HDMI Simplex Receivers, and can interoperate with existing Enova DGX systems using simplex fiber boards, enabling large infrastructure deployments that span multiple buildings or campuses. SmartScale Technology on DXLink Fiber Receivers automatically reads display EDID data to scale and adjust video parameters to each display's native resolution, eliminating compatibility issues across multi-display environments. Designed for 24/7 mission-critical operation, the chassis features a redundant field-serviceable power supply, a dedicated fan tray rack unit with enhanced rear cooling, and individually replaceable SFP fiber modules — allowing maintenance of a single connection without disrupting the rest of the matrix.

Key Features

• 288x288 Modular Matrix: Enclosure supports up to 18 I/O boards, each a full 16x16 matrix, for a maximum 288x288 routing capacity in a single chassis.
• Uncompressed Fiber Transport at 10 Gbps: Delivers pixel-perfect, uncompressed video and audio over fiber at full throughput with no signal degradation.
• Single-Mode and Multimode Fiber Support: Single-mode fiber reaches up to 10 km; multimode (OM3) reaches up to 300 m; both board types can be mixed in the same enclosure.
• DXLink Fiber Compatibility: Works with AMX DXLink Multi-Format Simplex Transmitters and HDMI Simplex Receivers, and interoperates with Enova DGX simplex fiber systems.
• SmartScale Technology: DXLink Fiber Receivers automatically scale output resolution to each display's native EDID, eliminating AV compatibility issues in multi-display deployments.
• Field-Serviceable Components: SFP fiber modules, fan kits, CPU, and redundant power supplies are all individually replaceable in the field without full system shutdown.
• Advanced Audio Format Support: Carries Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and 2 CH through 8 CH L-PCM embedded in fiber.
• 4K-Ready Signal Transport: Engineered to support high-resolution 4K content distribution across enterprise and broadcast infrastructure.
• 17 Rack-Unit Chassis: Dense form factor — only 1U larger than the 144x144 system — designed to maximize I/O density within standard rack enclosures.

Typical Applications

• Government Command Centers: High-security, large-scale AV distribution for multi-source, multi-display control room environments.
• Broadcast Studios: Uncompressed fiber routing for live production, post-production, and broadcast signal distribution at scale.
• Enterprise Data Centers: Centralized AV signal hub for multi-building or campus-wide distribution infrastructure.
• Auditoriums and Large Venues: High-density AV routing for main stage, breakout room, and overflow display systems.
• Multi-Purpose Rooms and Training Facilities: Scalable matrix for flexible signal routing across large academic or corporate campus environments.
• House of Worship: Fiber-based AV distribution to multiple zones, overflow rooms, and remote display positions.

Competitor Comparison

Technical Specifications

Frequently Asked Questions

What I/O boards are compatible with the Epica DGX 288 Enclosure?

The Epica DGX 288 accepts AMX DXLink Fiber I/O boards in both single-mode and multimode configurations. Boards from the EPICADGX288-VIO-SMF and EPICADGX288-VIO-MMF families can be mixed within the same enclosure for flexible infrastructure design.

Can the Epica DGX 288 integrate with existing Enova DGX systems?

Yes. The Epica DGX 288 is compatible with Enova DGX systems using simplex fiber boards, enabling signal routing between the two platforms. This makes it viable as a central distribution hub in large, multi-system AV infrastructures.

What is the maximum transmission distance?

Over single-mode fiber (9/125 mm), the system transmits up to 10 km. Over multimode fiber (OM3 50/125 mm), the maximum reach is 300 m. Distances can be extended point to point in connected systems.

Is the Epica DGX 288 suitable for government procurement requiring TAA compliance?

The standard Epica DGX 288 Enclosure (FG1055-288) does not carry a specific TAA designation — confirm TAA requirements with your procurement team before ordering for federal or DOD installations.

What warranty and support does AMX provide for the Epica DGX 288?

AMX provides a standard manufacturer warranty. Creation Networks offers full pre-sales consultation, system design support, and post-sale technical assistance for Epica DGX deployments. Contact us at 1-888-230-3661 for project pricing and support options.

What installation expertise is required for the Epica DGX 288?

The Epica DGX 288 requires professional AV integration and NetLinx programming. Creation Networks provides nationwide AV design and installation services for Epica DGX deployments. Reach out to our team for scoping and design assistance.
