Adder XDIP-POE – PoE-Powered HDMI USB KVM Extender over IP

Product Overview

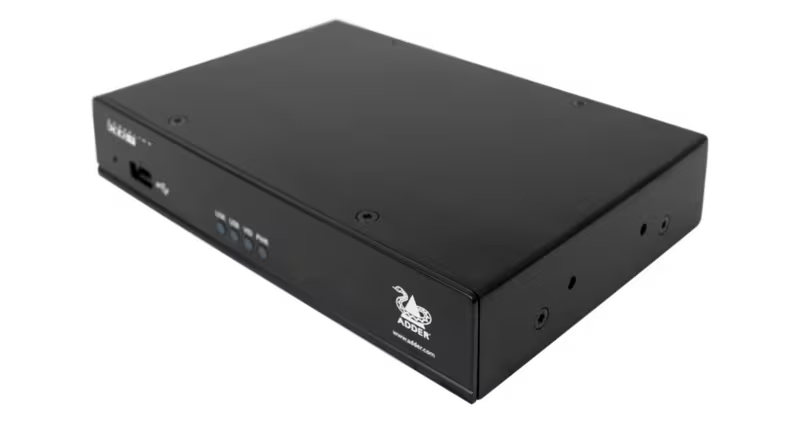

The Adder XDIP-POE is a PoE-powered HDMI and USB KVM extender over IP that draws its power directly from an IEEE 802.3af PoE network switch, eliminating local power supplies at every node. Built on the ADDERLink XDIP platform, this single-link KVM-over-IP extender node delivers low-latency 1920x1200 at 60Hz video, True Emulation USB, and bi-directional audio across a standard Gigabit Ethernet network. For integrators planning a PoE KVM extender deployment — point-to-point extension, distributed switching, or a scalable IP KVM matrix — the XDIP-POE removes power outlets and wall adapters from the bill of materials.

Product Description

Powering KVM nodes over the same CATx cable that carries the signal is the cleanest way to install endpoints behind displays, in lecterns, and inside millwork where outlets are scarce. The XDIP-POE ships without a PSU specifically for these PoE-switched designs; many PoE switches also offer redundant power options the XDIP can leverage for enhanced reliability.

Like every XDIP node, the unit is identical hardware that configures as a transmitter at the computer or a receiver at the console, so spares are universal and roles can change as the room evolves. In matrix operation, each receiver selects from up to 16 sources and each transmitter feeds up to 256 receivers, supporting both KVM switching and one-to-many AV distribution over the 1GbE LAN. Video reaches 1920 x 1200 at 60Hz with 8-bit-per-channel color, and intelligent EDID management passes true display characteristics back to the source for correct output without manual configuration.

Three True Emulation USB HID ports serve keyboards and mice at the console, bi-directional 16-bit/48kHz analog audio runs both ways with headphone support, and local feed-through video and USB allow a console to remain at the source machine. A RESTful API over HTTPS opens the matrix to third-party control processors. Units arrive zero-configured with a setup wizard; no drivers or host software are needed. If some locations lack PoE, mix in the Adder XDIP-US with included PSU; for redundant-supply secure installs, choose the Adder XDIP-RED with red power cable. See all options in our Adder Technology collection.

Key Features

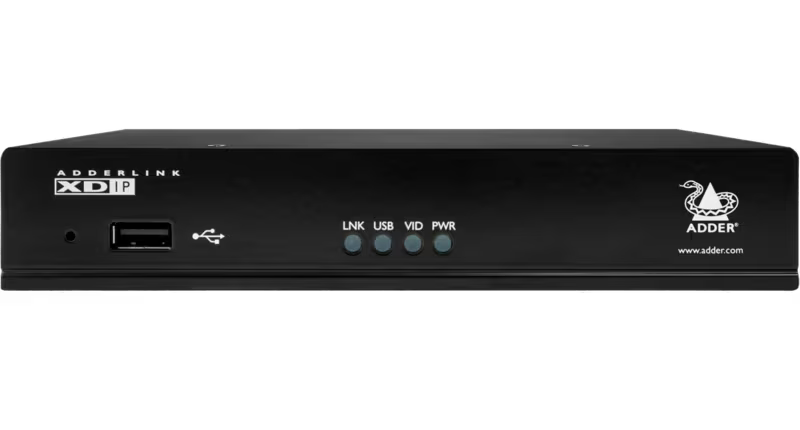

• PoE Powered (IEEE 802.3af) — Draws power from compatible PoE switches over the link cable, removing local power supplies and outlets from the install.
• Configurable TX or RX — Identical units take either role and can be reconfigured later, simplifying sparing and system changes.
• 1920x1200 at 60Hz Video — Low-latency, high-quality 60Hz video over a standard Gigabit LAN for an at-the-PC experience.
• Extender, Switch, or Matrix — Scale from point-to-point links to a matrix of 16 sources per receiver and 256 receivers per transmitter.
• RESTful API Control — HTTPS API integrates switching with third-party control systems and programmable controllers.
• Bi-Directional Audio — 16-bit, 48kHz analog stereo both ways, with headphone support (16 to 32 Ohms).
• Intelligent EDID Management — True or fixed EDID handling ensures correct video output with no manual setup.

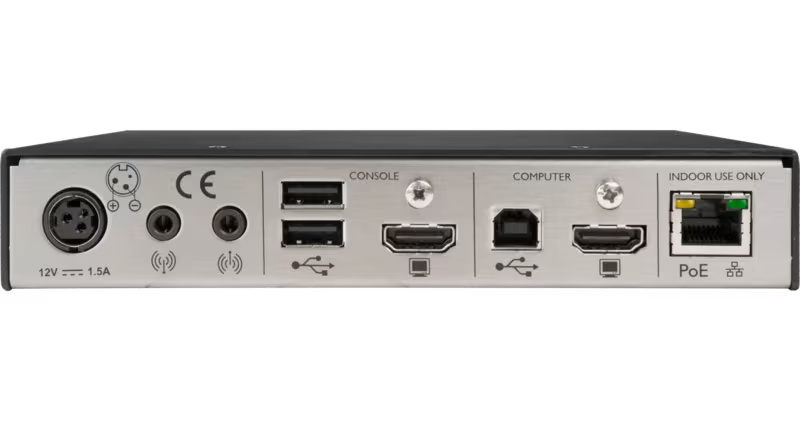

• Local Feed-Through Ports — Keep a local console at the source computer and connect a local PC at the user station.
• Zero-Config Setup — Plug-and-play out of the box with a guided wizard; no drivers required.

Typical Applications

• Conference room — PoE-powered nodes behind displays with no outlet required.
• Boardroom — clean lectern and credenza installs powered over the link cable.
• Huddle room — compact source extension where wall power is limited.
• Commercial meeting space — matrix AV distribution across multiple rooms on one LAN.
• Training room — distribute instructor sources to learner displays over PoE infrastructure.
• Broadcast studio — low-latency control of production PCs from operator positions.

Technical Specifications

Frequently Asked Questions

Does the XDIP-POE include a power supply?
No. It is the PoE-powered variant and ships without a PSU. Power it from an IEEE 802.3af-compatible PoE switch port. If you need a mains-powered version, choose the XDIP-US.

What PoE switch do I need?
Any switch providing IEEE 802.3af power on a 1GbE port. The XDIP is compatible with most PoE switches, and switches with redundant power supplies add resilience to the whole KVM system.

Can I mix XDIP-POE units with XDIP-US or XDIP-RED units?
Yes. All XDIP variants share identical hardware and interoperate freely as transmitters and receivers in the same extender or matrix deployment, including the XDIP-RED redundant-power variant.

How many units do I need for a basic extension?
Two: one configured as transmitter at the computer and one as receiver at the console, connected through your PoE network switch.

Does it support HDCP-protected video or 4K?
No. The manufacturer specifies 1920x1200 at 60Hz maximum and no HDCP or CEC support; the XDIP is designed for computer KVM extension.

Can a control system switch sources?
Yes. The RESTful API over HTTPS lets third-party controllers command receiver endpoints, so room control processors and programmable keypads can drive matrix switching.
