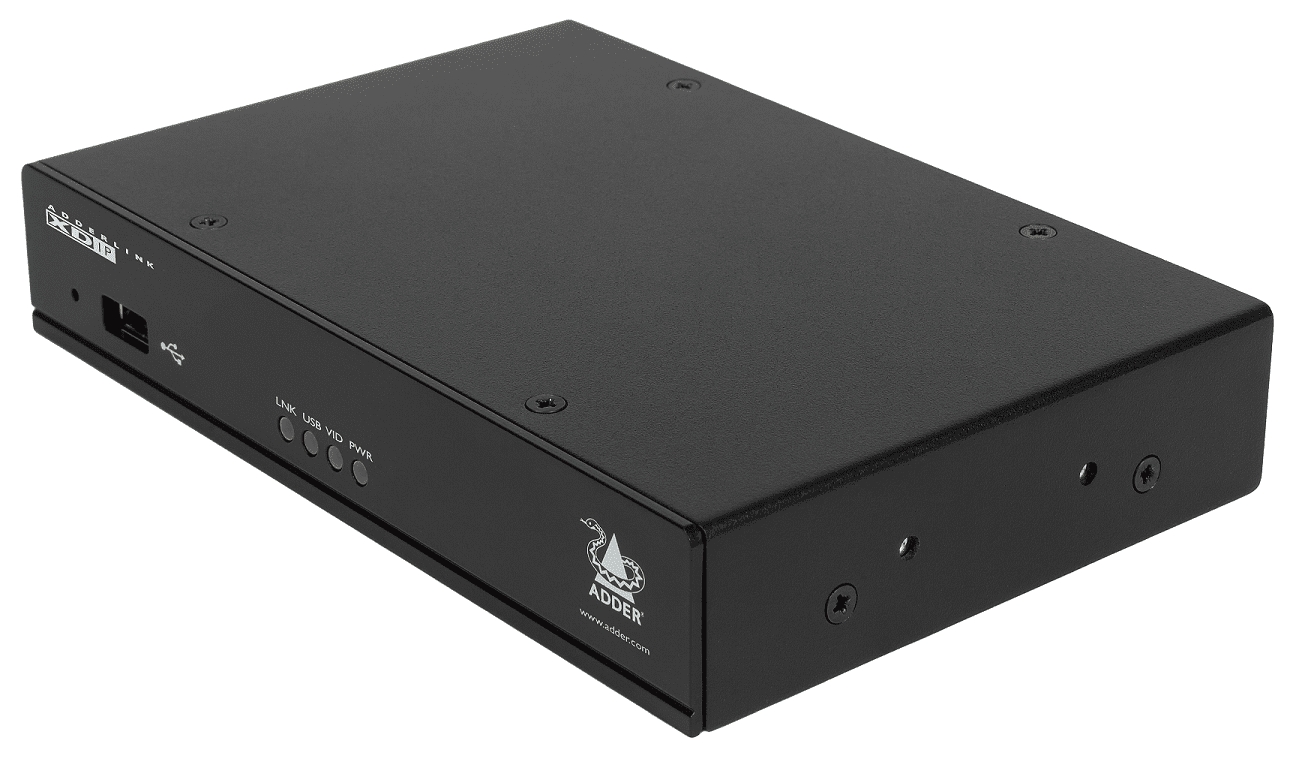

Adder XDIP-RED – HDMI USB KVM-over-IP Node, Red Power Cable

Product Overview

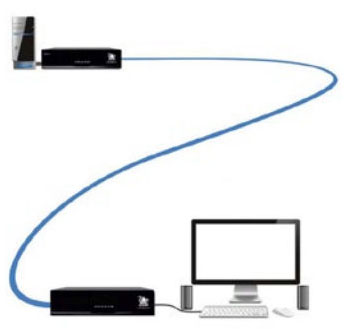

The Adder XDIP-RED is an HDMI, USB, and audio KVM-over-IP extender node supplied with a VSC48 red power cable for connection to an Adder redundant power supply, making it the XDIP variant specified for secure and segregated network installations where power resilience and visual cable identification matter. Like every ADDERLink XDIP node, it can operate as a point-to-point HDMI USB extender over IP, a distributed KVM switch, or part of a scalable IP KVM matrix on a standard Gigabit network. With low-latency 1920x1200 at 60Hz video, bi-directional audio, and a RESTful API, the XDIP-RED brings matrix-grade KVM extension to installations that demand centralized, redundant DC power.

Product Description

In secure facilities and 24/7 operations, designers often centralize device power on a redundant supply such as the Adder RED-PSU rather than relying on local mains adapters or PoE alone. The XDIP-RED ships with the 2-meter VSC48 power lead for exactly this purpose, and the color-coded cable supports the red/black cabling discipline used in segregated network environments.

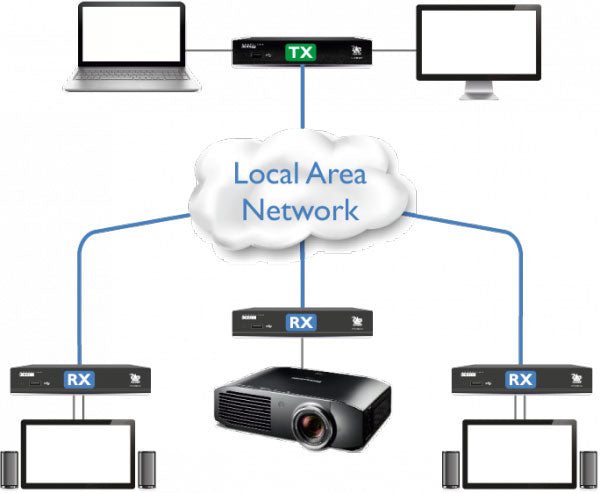

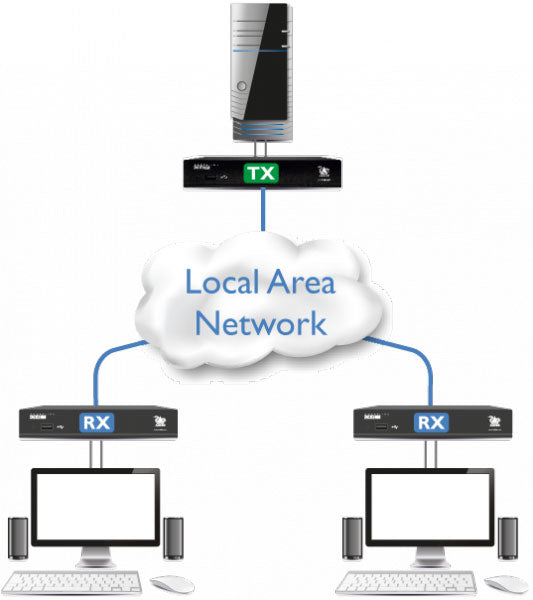

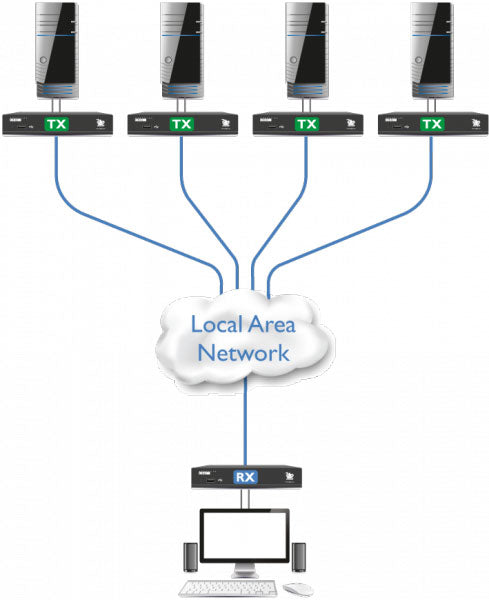

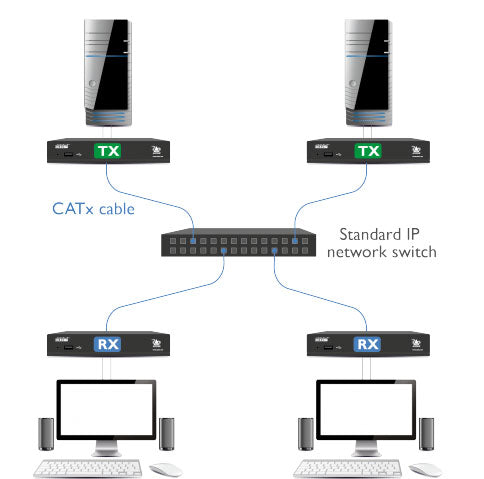

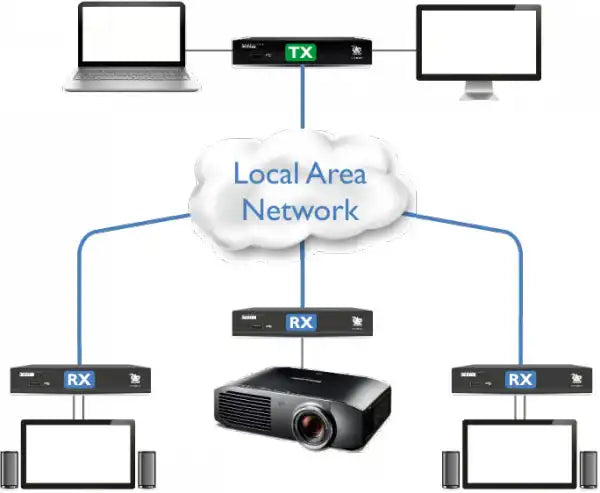

The underlying hardware is the standard XDIP node: identical units configure as transmitter or receiver, so roles can be reassigned as the system grows. Each receiver can access up to 16 sources and each transmitter can serve up to 256 receivers, enabling KVM switching and AV distribution from the same devices. Video runs at up to 1920 x 1200 at 60Hz with 8 bpc color over CAT5e or better cabling (up to 100m to the network switch) on a 1GbE network, and the device also supports PoE (IEEE 802.3af) where required.

Bi-directional 16-bit/48kHz analog audio, three True Emulation USB HID console ports, local feed-through video and USB, and intelligent EDID management round out the feature set. A RESTful API over HTTPS lets third-party control systems switch receivers programmatically. Units arrive zero-configured with a setup wizard — no drivers or software. For the same node with a mains PSU, see the Adder XDIP-US with power supply; for PoE-only powering, see the Adder XDIP-POE. The full lineup is in our Adder Technology collection.

Key Features

• Redundant Power Ready — Includes the VSC48 2m power cable for direct connection to an Adder redundant power supply, with red color coding for segregated installs.
• Configurable TX or RX — Identical hardware configures as transmitter or receiver and can be re-roled as requirements change.
• 1920x1200 at 60Hz Video — Low-latency 60Hz compression over standard Gigabit LAN preserves an at-the-PC user experience.
• Matrix Scalability — Up to 16 sources per receiver and 256 receivers per transmitter on one 1GbE network.
• RESTful API over HTTPS — Programmatic switching from third-party controllers and room control systems.
• Bi-Directional Audio — 16-bit, 48kHz analog stereo in both directions with headphone support (16 to 32 Ohms).
• True Emulation USB — Three USB A console ports with HID emulation for instant keyboard and mouse response.
• Local Feed-Through — Video and USB feed-through ports support a local console at the source and a local PC at the user station.
• PoE Capable — IEEE 802.3af PoE support provides a second powering option alongside the redundant supply.

Typical Applications

• Government space — segregated red/black network rooms with centralized redundant power.
• Broadcast studio — 24/7 galleries where node power must survive a supply failure.
• Boardroom — executive spaces with concealed, centrally powered KVM nodes.
• Commercial meeting space — matrix distribution of sources across multiple rooms.
• Training room — shared source distribution to multiple learner positions.

Technical Specifications

Frequently Asked Questions

How is the XDIP-RED different from the XDIP-US and XDIP-POE?
The hardware is identical. XDIP-RED includes a VSC48 power cable for connection to a redundant power supply (no mains PSU), XDIP-US includes a 12V mains PSU, and XDIP-POE ships with no power accessories for PoE-powered installs.

What redundant power supply does it connect to?

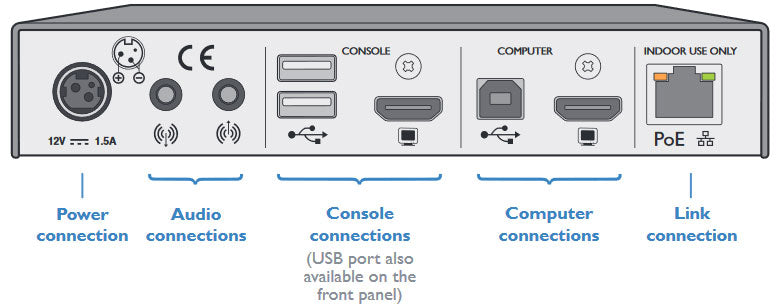

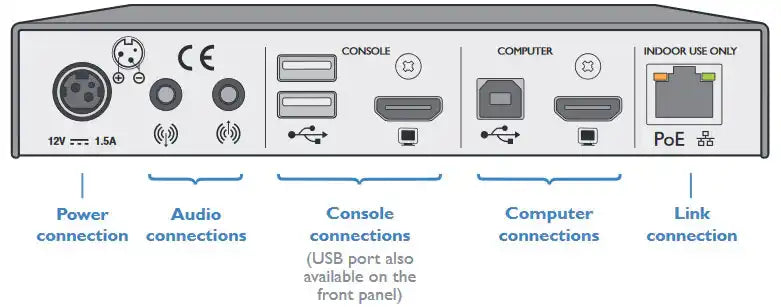

The included VSC48 lead connects the node's 12V 3-pin input to an Adder redundant power distribution unit such as the RED-PSU family. Contact us to size the PSU for your node count.

Can the XDIP-RED still use PoE?
Yes. The node supports IEEE 802.3af PoE, which can serve as an alternate or fallback powering method depending on your design.

Do I need a transmitter and a receiver?
Yes, one node at the computer (TX) and one at the console (RX). Any XDIP variant can fill either role, so you can mix XDIP-RED with XDIP-US or XDIP-POE units on the same matrix.

Does it support 4K or HDCP content?
No. Maximum resolution is 1920x1200 at 60Hz, and HDCP/CEC are not supported per the manufacturer specification.

How is the matrix controlled?
Through the built-in web interface or the RESTful HTTPS API, which works with third-party controllers for touch-panel or keypad-driven switching.
